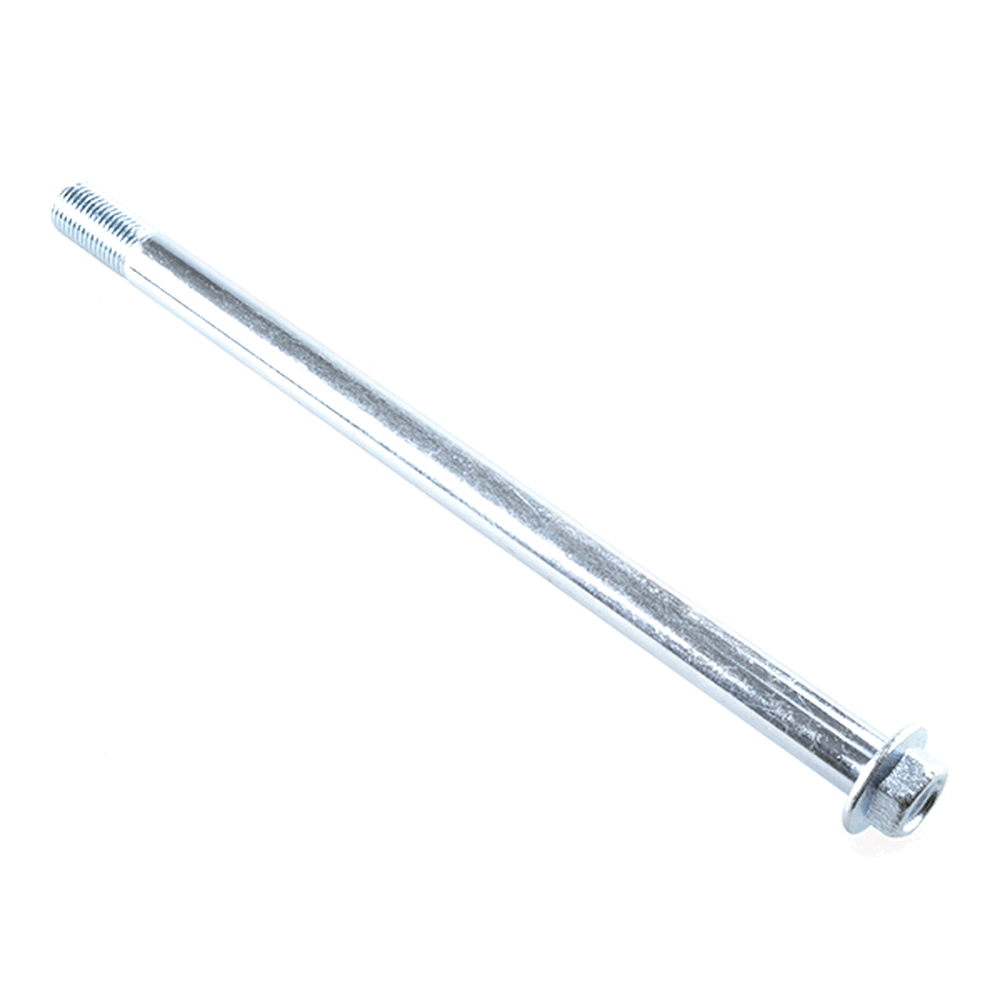

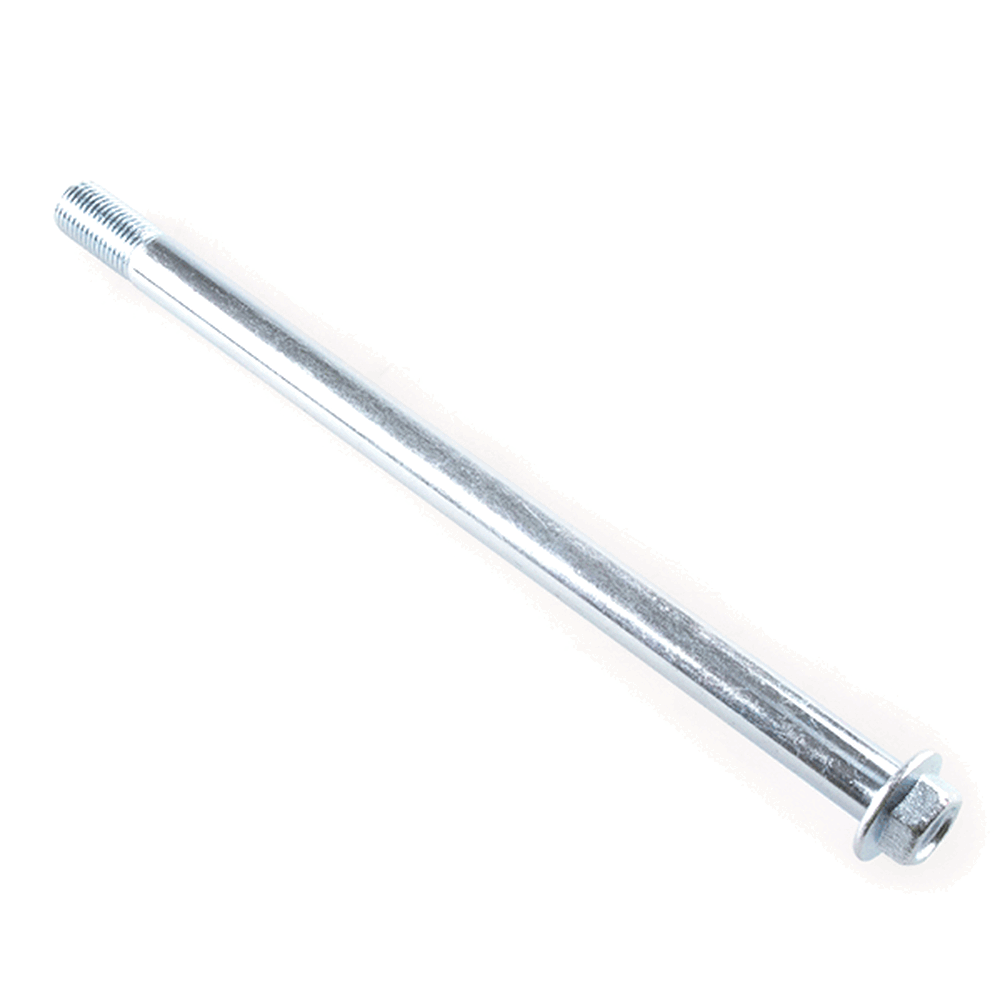

SWNGS038"In the category of Swingarms, Bushes and Bearings, Swingarms"
The swingarm spindle, also known as the swingarm axle, is a crucial component of a motorcycle's rear suspension system. It is a large, hardened steel rod that passes through the swingarm and connects it to the motorcycle's frame. The spindle allows the swingarm to pivot, which is essential for absorbing bumps and maintaining rear wheel stability during riding. Proper installation and maintenance of the swingarm spindle are vital for ensuring smooth and controlled rear suspension movement, contributing to overall handling and safety.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

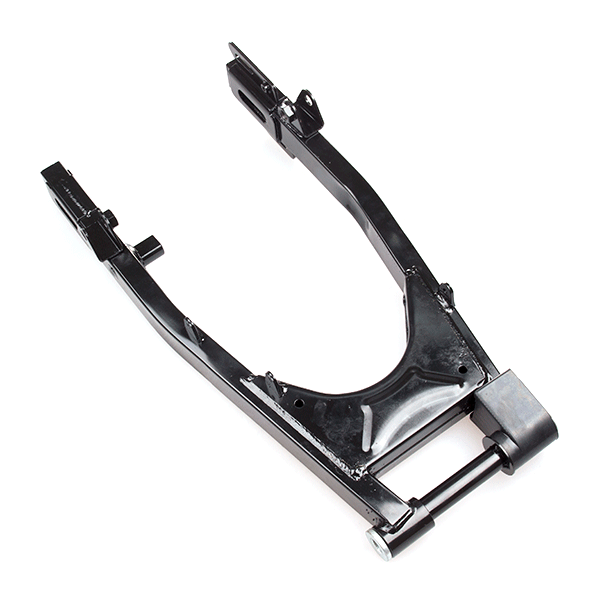

Swinging Arm SWNG074 x 1
|
||
| 2 | ![]() |
Swinging Arm Spindle SWNGS038 x 1
|
||
| 3 | ![]() |

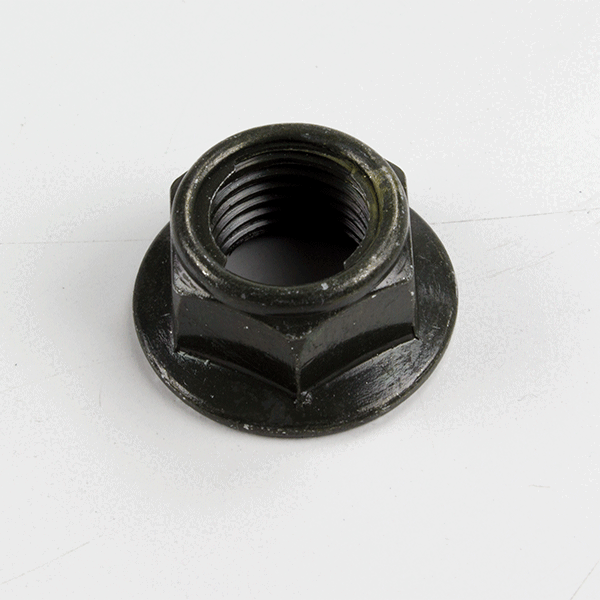

Swinging Arm Spindle Nut M14 x 1.5mm NUT109 x 1
|
||
| 4 | ![]() |
Chain Adjuster CHNA006 x 1
|
||
| 5 | ![]() |
Chain Adjuster Washer CHNAW015 x 1
|
||
| 7 | ![]() |
Panel Fitting Collar BSH175 x 1
|
||
| 8 | ![]() |
Swingarm Bush SWNGB034 x 1
|
||
| 9 | ![]() |
Rubber Chain Guide CHNGR036 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Kiden | Aquarius 125 [KD125-G] | View parts diagram |
| Aries 125 [KD125-J] | View parts diagram | |
| Pisces 125 [KD125-K] | View parts diagram | |
| Lexmoto | Assault 125 EFI [HJ125-J-E4] | View parts diagram |
| Assault 125 Euro 5 [HJ125-J-E5] | View parts diagram | |
| Isca 125 Euro 5 [SK125-L-E5] | View parts diagram | |
| Isca 125 [SK125-L] | View parts diagram | |
| Zontes | Firefly 125 [FIREFLY] | |
| Javelin 125I [JAVELIN125] | ||
| Rocketman 125I [ROCKETMAN125] | ||
| Scorpion 125I [SCORPION125] | ||
