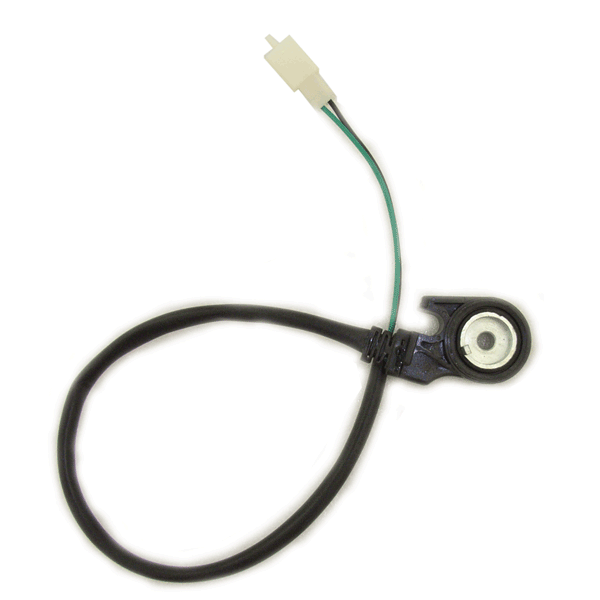

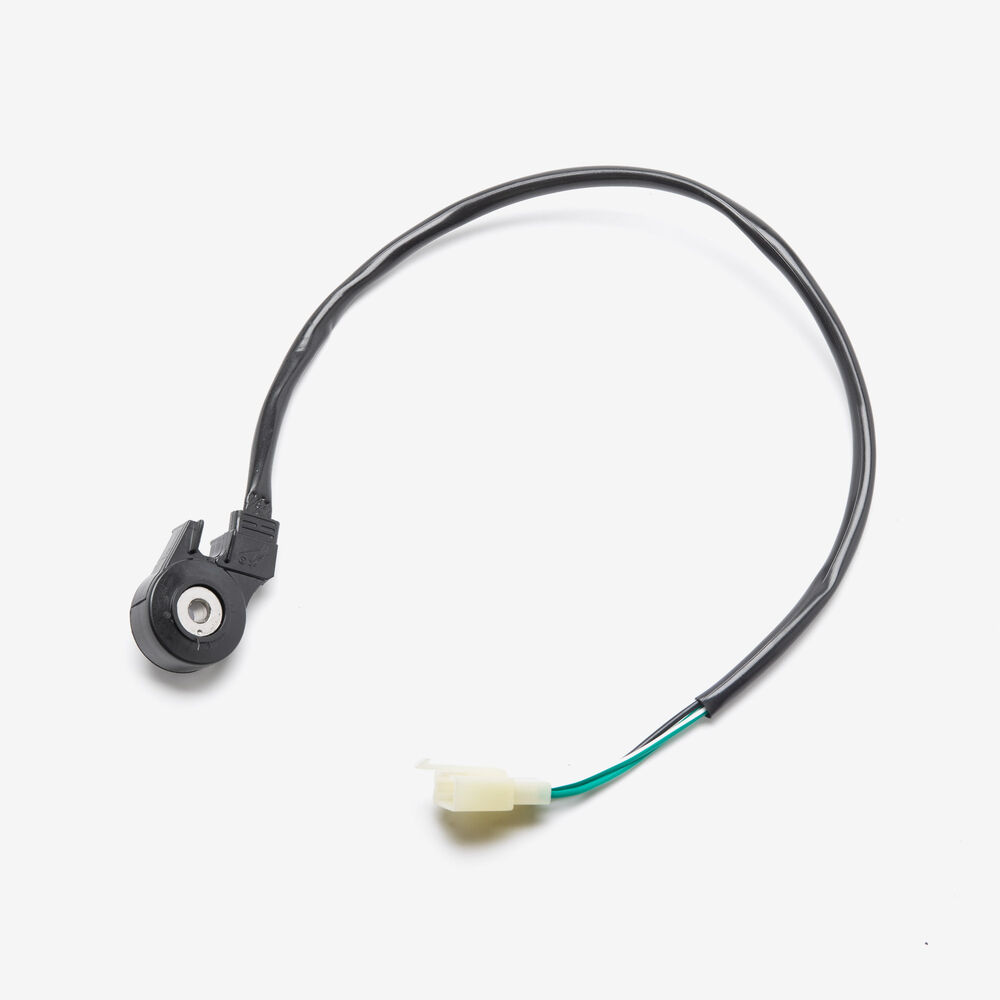

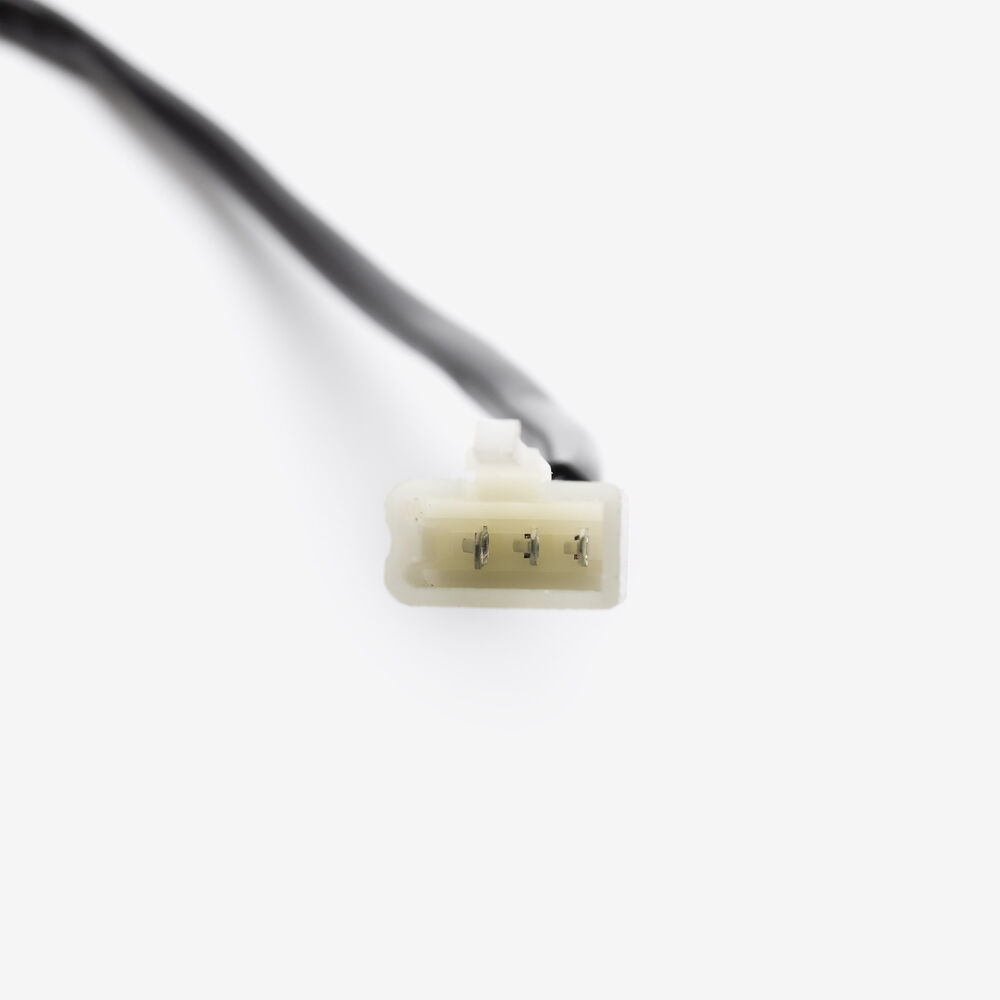

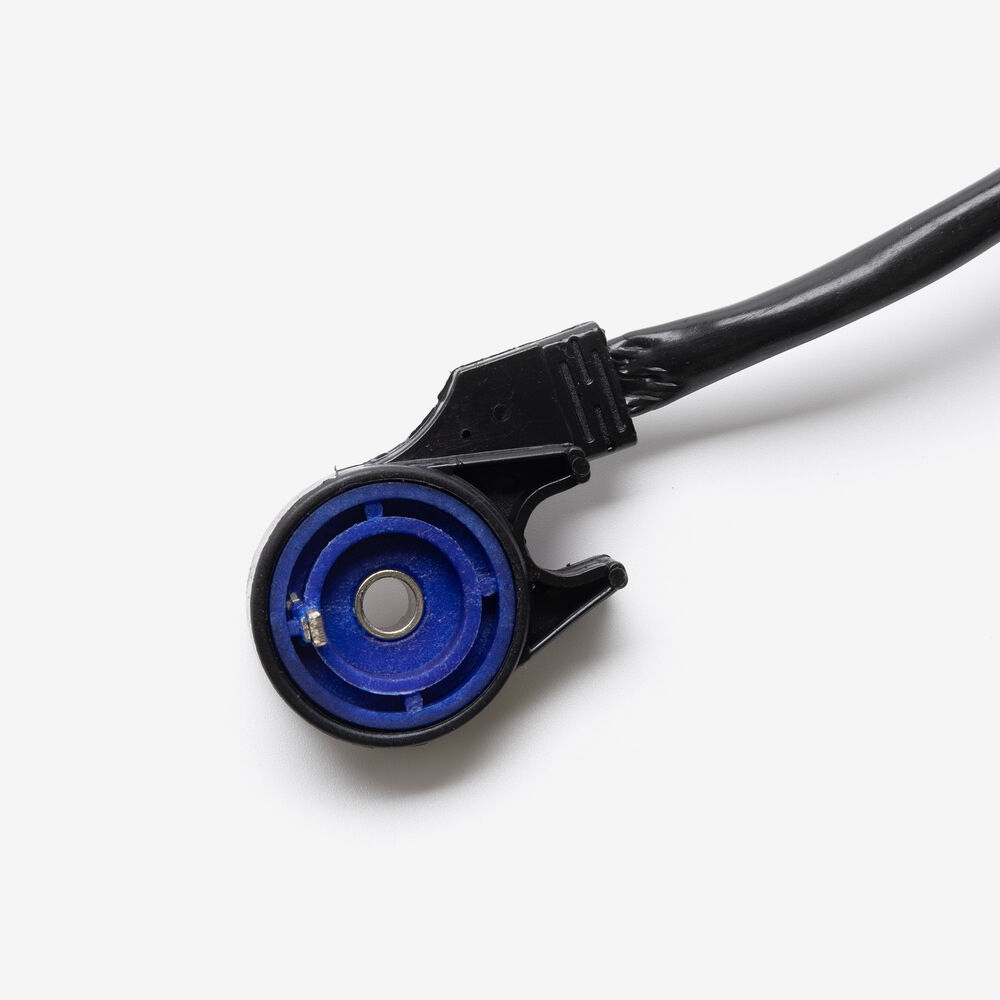

Side Stand Switch (Male block connector)
SWSTD005
Description
"We have sold 14 of these in the last 3 months"
The side stand switch is a safety feature on a motorcycle that prevents the engine from starting or running while the side stand is down. Positioned on the side stand or its mounting bracket, the switch detects the stand’s position and sends a signal to the engine control unit (ECU) or ignition system. If the stand is not fully retracted, the switch inhibits engine start-up to avoid accidents, ensuring that the motorcycle is safely supported before it is started or put into gear. This switch helps enhance rider safety by preventing unintended movement or tipping over.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 |  |

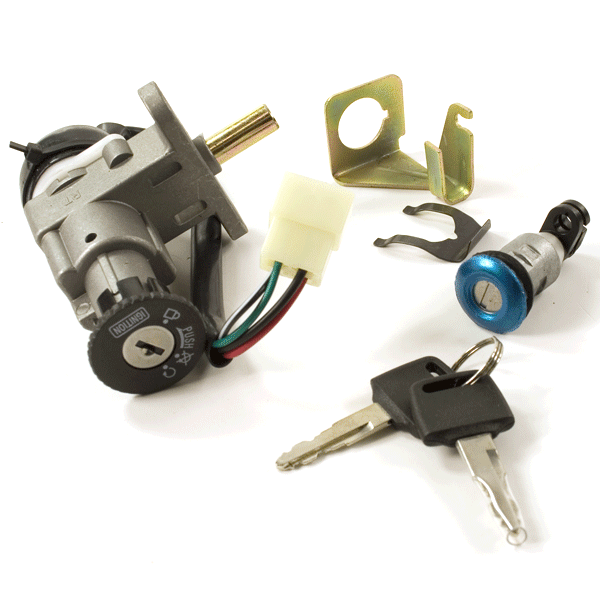

Lock Set LCKST199 x 1
|
||
| 4 |  |
Seat Lock Cable STCB079 x 1
|
||
| 5 |  |
Seat Latch STL027 x 1
|
||
| 8 |  |
Bracket BRCKT064 x 1
|
||
| 9 |  |
Rear Mudguard Bracket for LJ50QT-N MGB016 x 1
|
||
| 10 |  |
Engine Bracket (Side) for LJ125T-18, LJ125T-18-E5 ENGB086 x 1
|
||
| 11 |  |
Engine Subframe SBFRE024 x 1
|
||
| 15 |  |

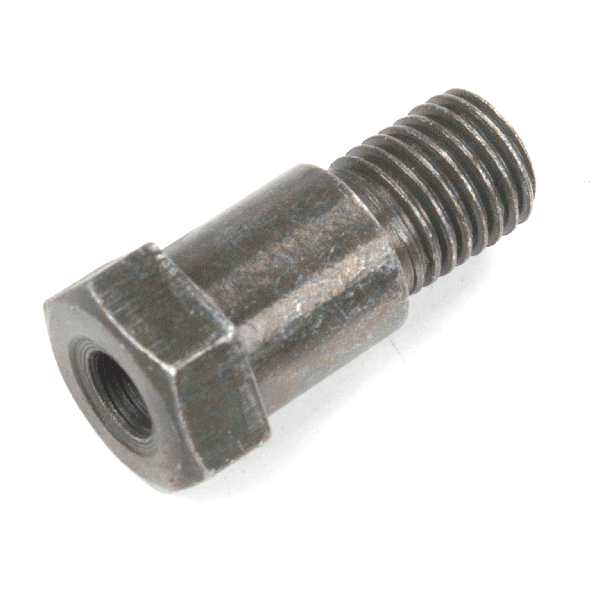

Centre Stand Pin STDPC020 x 1
|
||
| 16 |  |
Nut M8 NUT237 x 1
|
||
| 18 |  |
Centre Stand Cushion T5 STDCC017 x 1
|
||
| 19 |  |
Centre Stand STDC140 x 1
|
||
| 21 | |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 22 |  |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 23 |  |

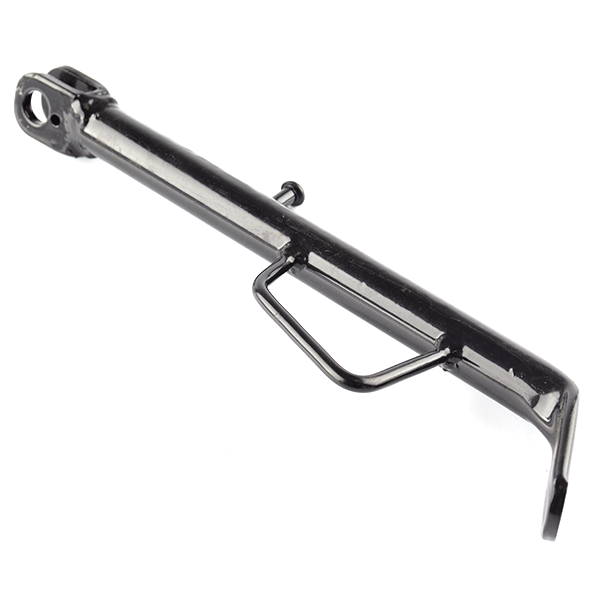

Side Stand for LJ50QT-N STDS135 x 1
|
||
| 24 |  |
Side Stand Spring SPNG120 x 1
|
||
| 25 |  |
Centre Stand Spring SPNG031 x 1
|
||
| 26 |  |
Bolt M12 x 265 x 1.25mm BLT936 x 1
|
||
| 31 |  |
Engine Bracket ENGB138 x 1
|
||
| 32 |  |
Engine Mounting Bolt M12 x 220mm BLT744 x 1
|
||
| 36 |  |
Bolt M10 x 220 x 1.25mm BLT937 x 1
|
||
| 38 |  |
Rubber Bush 56 x 41 x 16mm BSH217 x 1
|
||
| 39 |  |
Flange Bolt M10 x 25 x 20mm BLT945 x 1
|
||
| 40 |  |
Spring Washer WSH0112 x 1
|
||
| 41 |  |
Washer 20 x 10 x 2mm WSH0113 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| BTM | BT49QT-9 | |
| Baotian | BT49QT-9 | |
| BT50QT-9 | ||
| Evolution 125 | ||
| Rebel 125 [BT125T-12] | ||
| Scout 50 | ||
| Tanco 125 [BT125T-12F] | ||
| Benero | BT49QT-9 | |
| Jinlun | JL125-13 Custom | |
| Texan 250 [JL250-5] | ||
| Lexmoto | Aura 125 Euro 5 [LJ125T-18-E5] | View parts diagram |
| Aura 125 [LJ125T-18] | View parts diagram | |
| Diablo 50 E55 [LJ50QT-9M-E55] | View parts diagram | |
| Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram | |
| Diablo 50 [LJ50QT-9M] | View parts diagram | |
| Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | |
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
| Diablo 125 [LJ125T-8M] | View parts diagram | |
| Echo 50 E4 [LJ50QT-5L] | View parts diagram | |
| Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
| Echo 50 Euro 5 [LJ50QT-9L-E5] | View parts diagram | |
| Echo 50 [LJ50QT-3L] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| L5 [LJ50QT-7E-E55] | View parts diagram | |
| Nano 50 [LJ50QT-N] | View parts diagram | |
| Riviera 125 [LJ125T-V] | View parts diagram | |
| SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | |
| Scout 49 [BT49QT-9LEX] | View parts diagram | |
| Tempest 125 Euro 5 [LJ125-9A-E5] | ||
| Tempest 125 [LJ125-9A] | View parts diagram | |
| Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| Urban 125 [LJ125T-16] | View parts diagram | |
| Vendetta 250 [LJ250-3V] | View parts diagram | |
| Longjia | LJ50QT-3L | |
| LJ50QT-9L | ||
| LJ125T-9M | ||
| LJ125T-X | ||
| Pulse | Scout 49 | View parts diagram |
| Razzo | Tanco 125 | |
| Rex | RS450 | |
| Romet | City 125 [CITY125] | |
| SCMB 125 [SCMB125] | ||
| Superbyke | MPED 50 | |
