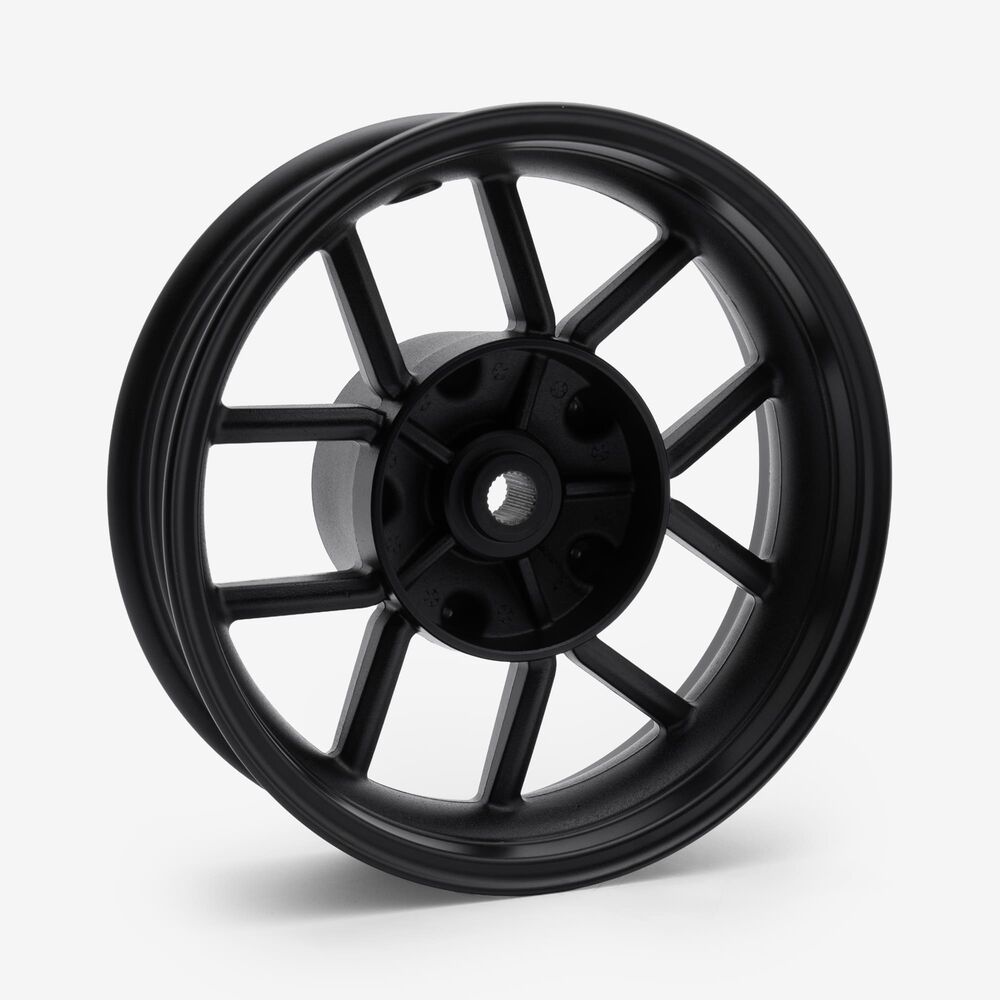

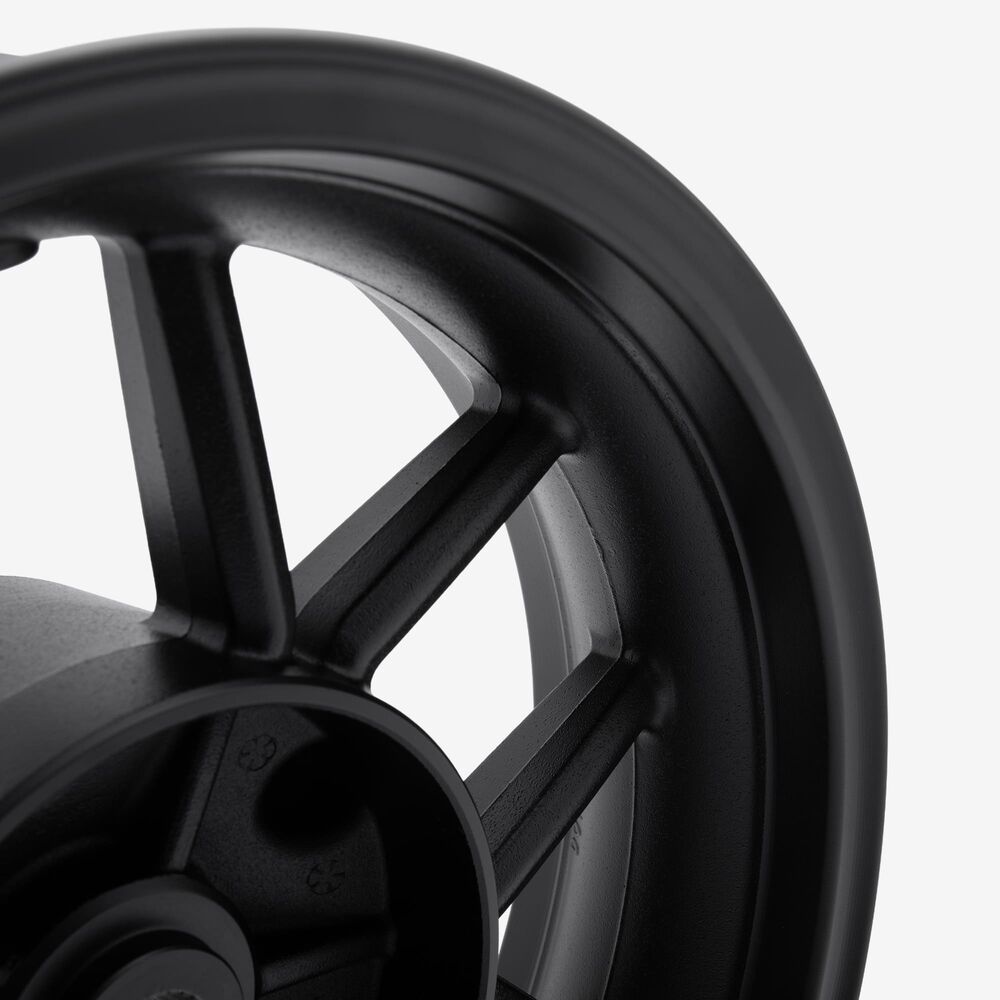

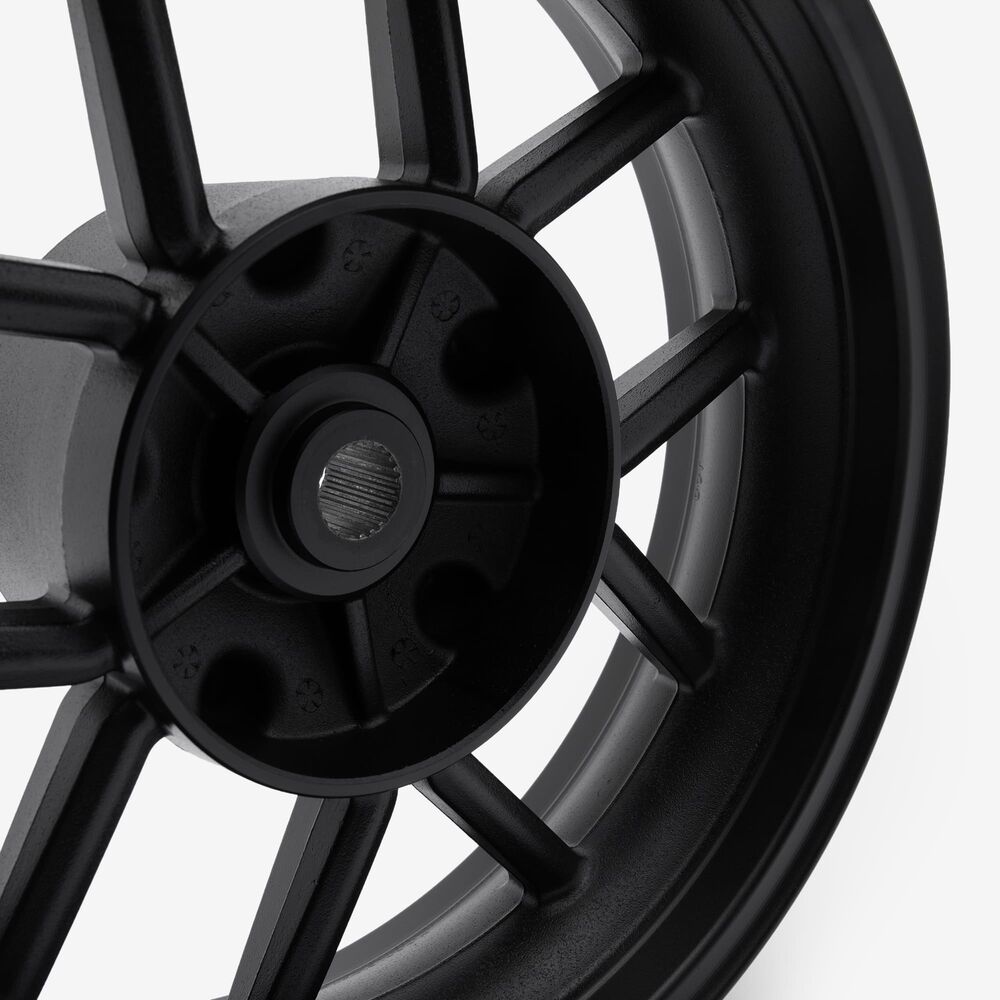

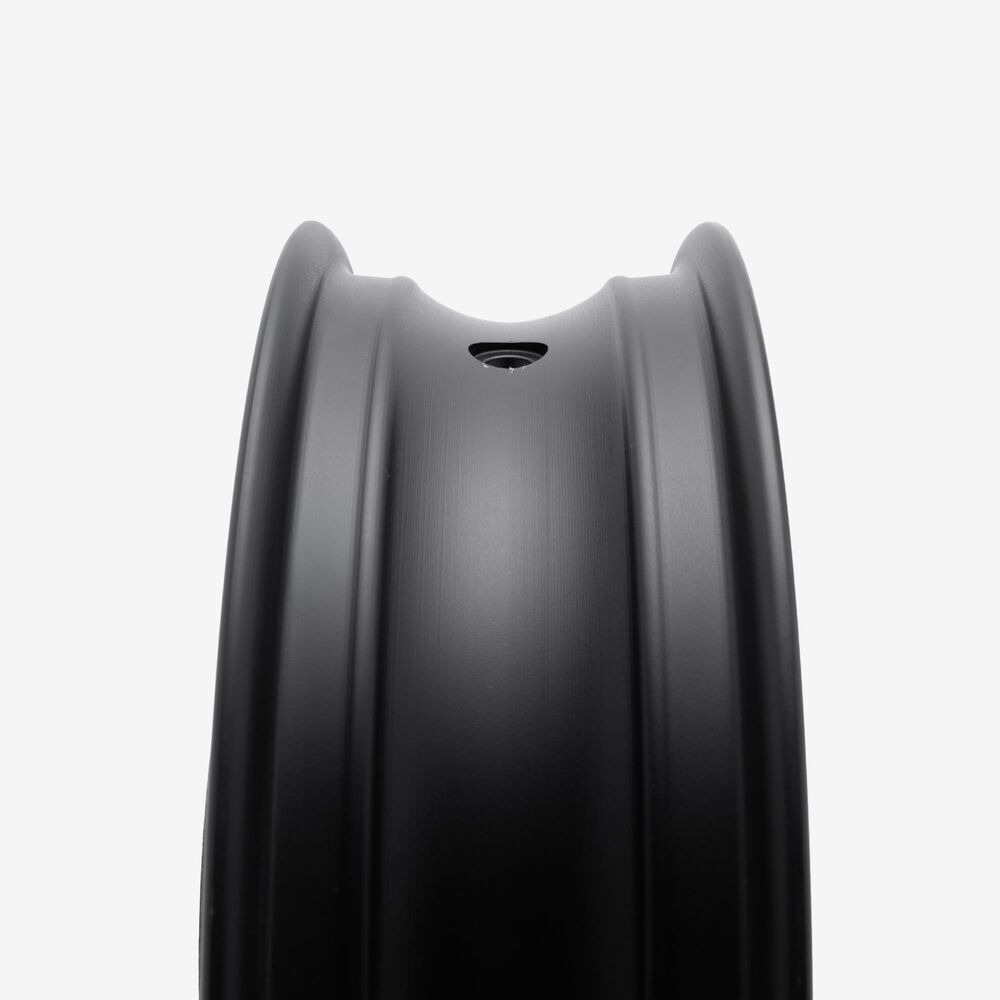

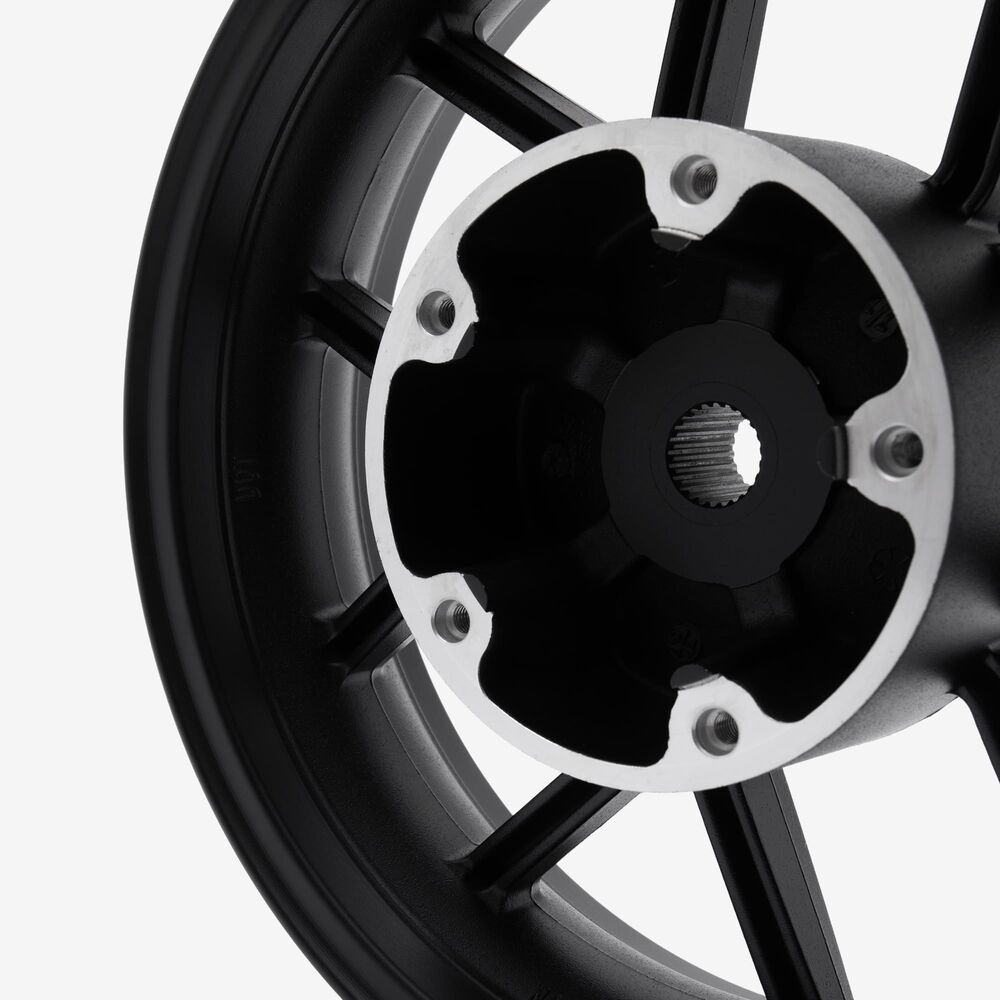

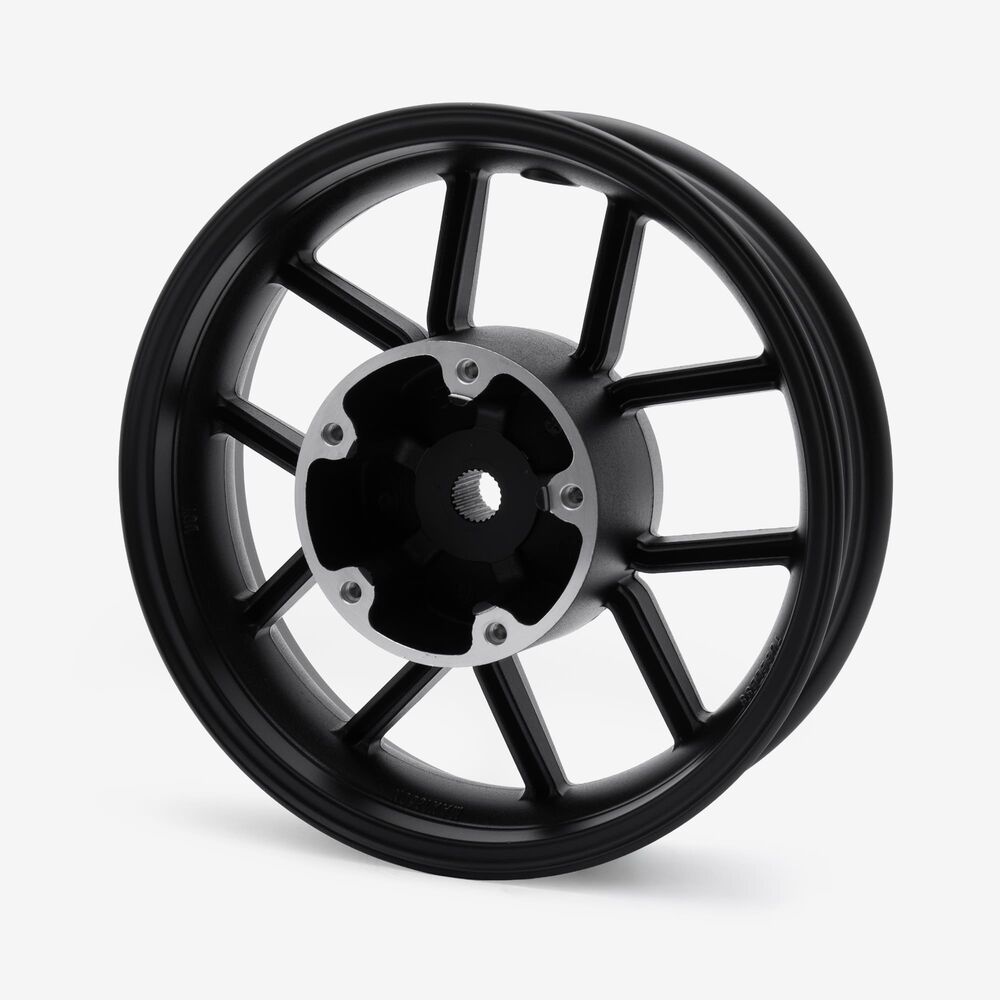

Scooter Wheel Rear
WHLR257
Description
"You should buy this Scooter Wheel Rear"
A motorcycle wheel consists of several key components:
The wheel plays a crucial role in the motorcycle’s handling, stability, and overall performance by supporting the tire and absorbing impacts from the road.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Engine Complete ENG149 x 1
|
||
| 3 |  |
Air Filter Assembly (Air Box) ARFA169 x 1
|
||
| 5 |  |
Inner Rear Mudguard PNLIR020 x 1
|
||
| 6 |  |
Bolt M6 x 20mm BLT963 x 1
|
||
| 7 |  |
Bolt M6 x 12mm BLT961 x 1
|
||
| 8 |  |
Shock Absorber SHK210 x 1
|
||
| 11 |  |
Bolt M6 X 30 Mm BLT964 x 1
|
||
| 12 | |
Scooter Wheel Rear WHLR257 x 1
|
||
| 13 |  |
Tyre TYR204 x 1
|
||
| 14 |  |
Tyre Valve Straight VLVTYR001 x 1
|
||
| 17 |  |
Spacer SPCR297 x 1
|
||
| 18 |  |
Lock Nut M16 x 1.5mm NUT244 x 1
|
||
| 19 |  |
Rear Brake Disc Bolt M8 x 25mm BLTD032 x 1
|
||
| 20 |  |
Rear Brake Disc BRDR079 x 1
|
||
| 21 |  |
Exhaust Bracket BRCKT411 x 1
|
||
| 22 |  |
Bolt M6 x 16mm BLT962 x 1
|
||
| 23 |  |
ABS Sensor BRSEN012 x 1
|
||
| 24 |  |
Brake Cable Clip HSCLP127 x 1
|
||
| 26 |  |
Wheel Nut M16 NUT072 x 1
|
||
| 29 |  |
Complete Exhaust System EXCS223 x 1
|
||
| 31 |  |
Centre Stand STDC143 x 1
|
||
| 32 |  |
Centre Stand Cushion STDCC032 x 1
|
||
| 33 |  |
Centre Stand Pin STDPC032 x 1
|
||
| 34 |  |
Lock Nut M10 X 15 X 10.3 Mm NUT245 x 1
|
||
| 35 |  |
Centre Stand Pin 2 x 20mm STDPC033 x 1
|
||
| 36 |  |
Engine Bracket ENGB141 x 1
|
||
| 37 |  |
Engine Mounting Bolt M10 x 235mm BLT965 x 1
|
||
| 38 |  |
Engine Mounting Bolt M12 x 280mm BLT966 x 1
|
||
| 40 |  |
Coolant Reservoir / Expansion Tank WTRSVR021 x 1
|
||
| 41 |  |
Coolant Reservoir / Expansion Tank Cover WTRSVR022 x 1
|
||
| 42 |  |
Coolant Hose WTHS093 x 1
|
||
| 46 |  |
Rubber Bush BCVR021 x 1
|
||
| 47 |  |
Bush BSH225 x 1
|
||
| 48 |  |
Rubber Grommet GRM073 x 1
|
||
| 49 |  |
Cable Clamp CBCLMP016 x 1
|
||
| 51 |  |
Bearing 6303 BRG223 x 1
|
||
| 53 |  |
Seal 47 X 25 X 7 Mm SEAL203 x 1
|
||
| 54 |  |
Heat Shield EXHS013 x 1
|
||
| 55, 59, 61 |  |
Exhaust End Cap EXCVR029 x 1
|
||
| 56, 57, 58, 59, 60 |  |
Heat Shield Fixing Kit EXFX012 x 2
|
||
| 62 |  |
Exhaust Gasket GSKEX125 x 1
|
||
| 64 |  |
Air Filter ARF175 x 1
|
||
| 65 |  |
Air Filter Pipe ARFPP016 x 1
|
||
| 69 |  |
Throttle Body THRB052 x 1
|
||
| 70 |  |
Inlet Manifold MNF116 x 1
|
||
| 71 |  |
Idle Air Controller ACNTRL013 x 1
|
||
| 72 |  |
Throttle Position Sensor TPSEN014 x 1
|
||
| 73 |  |
Fuel Injector FLINJ060 x 1
|
||
| 74 |  |
Fuel Injector Holder FLINJ061 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | D2 E55 [GC125T-3A-E55] | View parts diagram |
