WRLM133"In the category of Wiring Looms and Harnesses, Wiring Looms"
A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

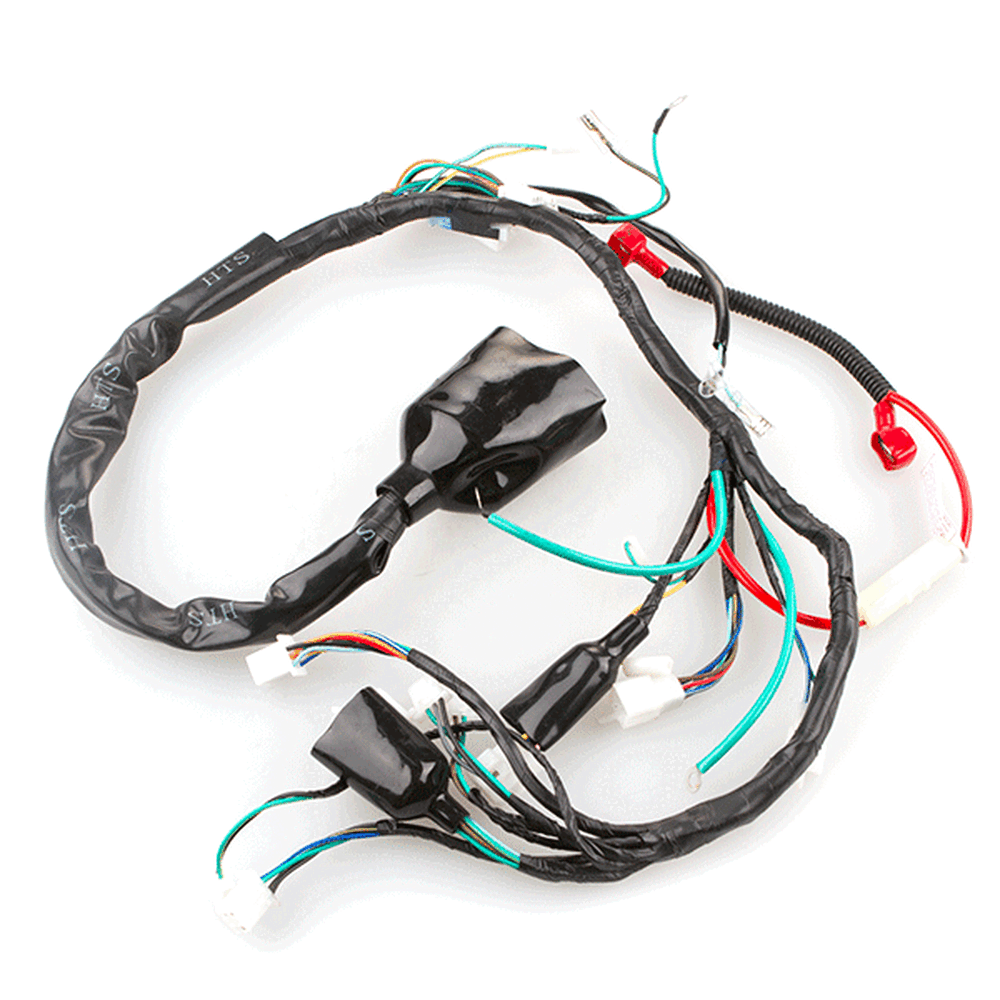

Wiring Loom (Post June 2016) with Revised Headlight Connector for SK125-22, SK125-22S WRLM133 x 1
|
||
| 2 | ![]() |
Ignition Coil for SK125-22, SK125-22S IGNC049 x 1
|
||
| 3 | ![]() |
CDI Unit for SK125-22, SK125-22S CDI070 x 1
|
||
| 4 | ![]() |
Indicator Relay INDRY012 x 1
|
||
| 5 | ![]() |
Starter Relay STRY070 x 1
|
||
| 6 | ![]() |
Regulator / Rectifier RGRC051 x 1
|
||
| 7 | ![]() |
Side Stand Switch SWSTD013 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Venom 125 [SK125-22] | View parts diagram |
| Venom SE 125 [SK125-22S] | View parts diagram | |
