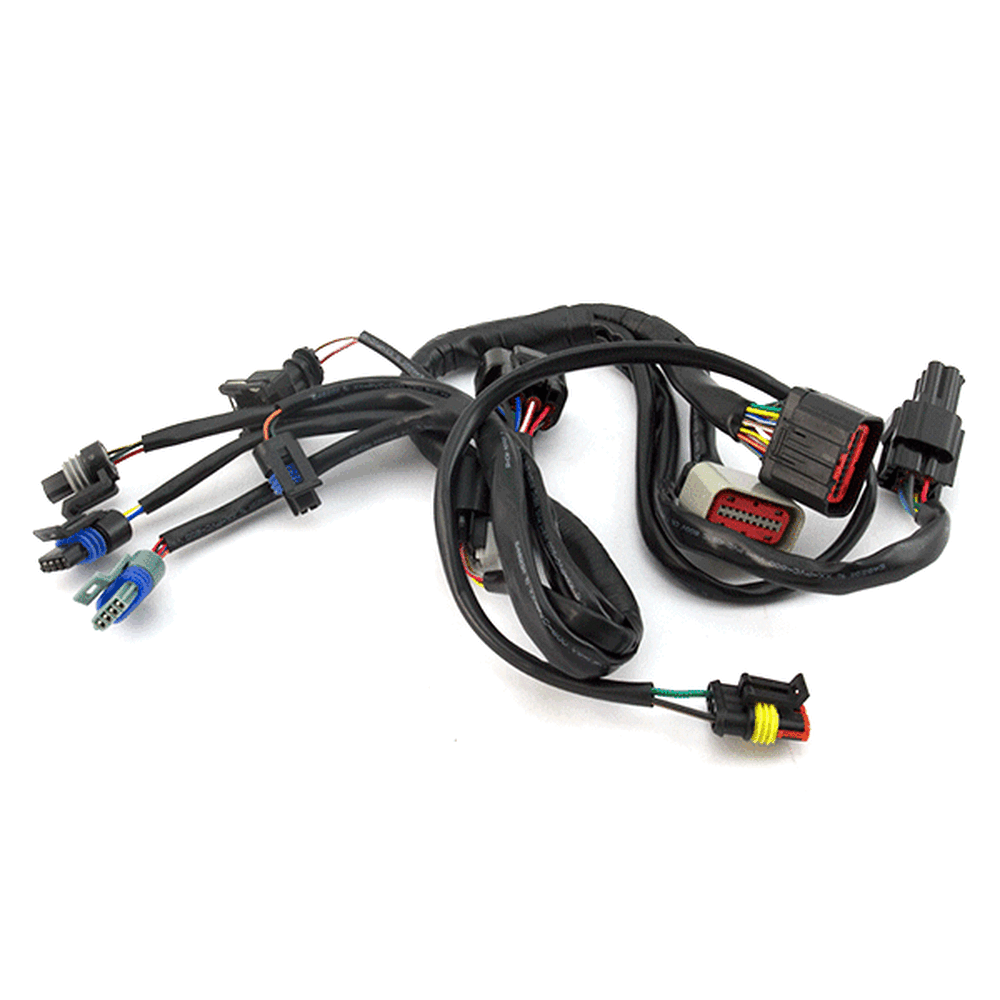

WRLM148
"In the category of Wiring Looms and Harnesses, Wiring Looms"
A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.
Ref | Item Name | Price | ||
---|---|---|---|---|
1 | ![]() |
Main Wiring Loom - DRL (EFI) for LJ125T-8M-E4 WRLM147 x 1
|
£44.49 | |
2 | ![]() |
Fuse 15A FUSE001 x 1
|
£3.99 | |
3 | ![]() |
Lextek Motorcycle Battery YTX7A-BS 150 x 90 x 95mm BTY036 x 1
|
£29.99 | |
4 | ![]() |
EFI System Wiring Loom for LJ125T-8M-E4 WRLM148 x 1
|
£46.99 | |
5 | ![]() |
Starter Relay STRY013 x 1
|
£10.49 | |
6 | ![]() |
EFI/Ignition Relay 20A STRY056 x 2
|
£8.99 | |
7 | ![]() |
Headlight Relay LTRY005 x 1
|
£23.49 | |
9 | ![]() |
Ignition Coil IGNC057 x 1
|
£21.49 | |
10 | ![]() |
Scooter Universal Horn 12V HRN001 x 1
|
£8.99 | |
11 | ![]() |
DRL Indicator Relay 3 Wires INDRY021 x 1
|
£14.49 | |
13 | ![]() |
Lambda Sensor LMSEN009 x 1
|
£67.99 | |
15 | ![]() |
Regulator/Rectifier RGRC071 x 1
|
£26.99 | |
17 | ![]() |
ECU ECU11 x 1
|
£147.49 |
Manufacturer | Model | Diagram |
---|---|---|
Lexmoto | Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram |
