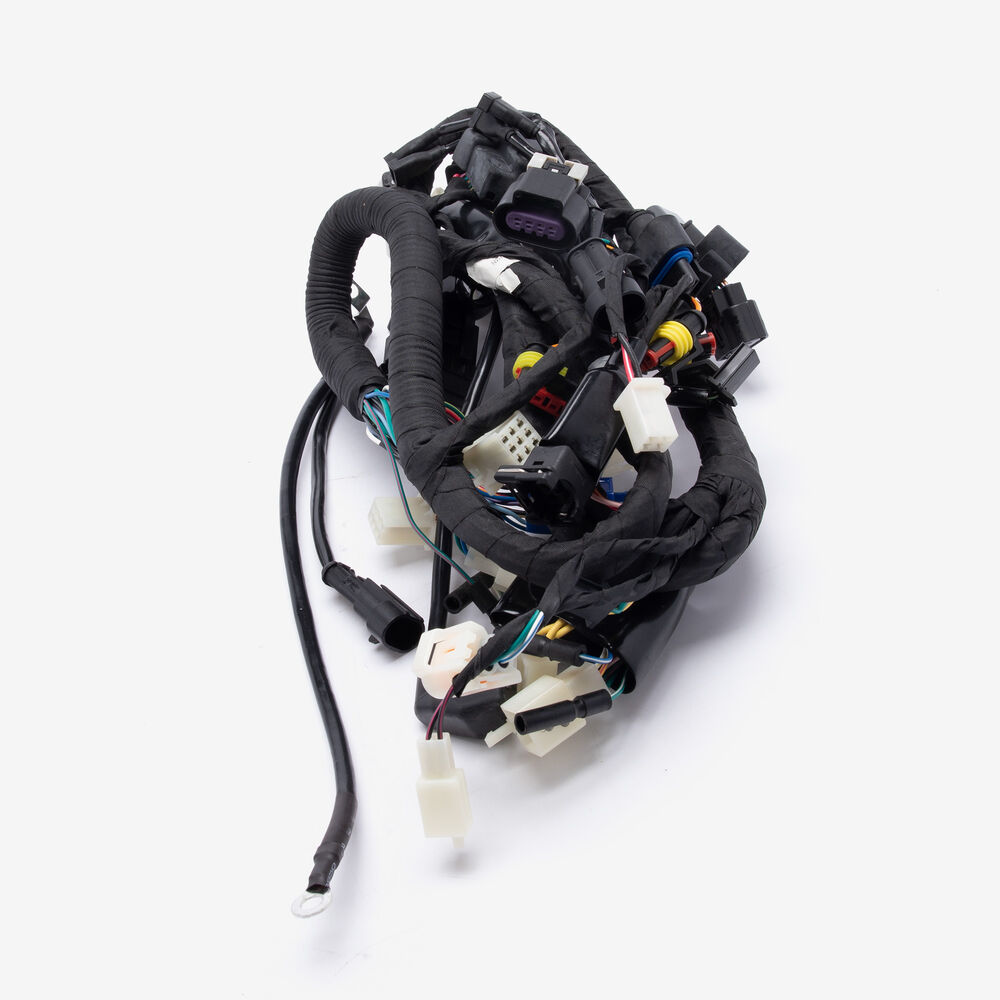

Wiring Loom for SR125-E5
WRLM283
Description
"Another great Wiring Loom"
A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Flanged Hex Bolt M6 x 25mm BLT139 x 1
|
||
| 2 |  |
Indicator Relay INDRY004 x 1
|
||
| 3 | |
Wiring Loom for SR125-E5 WRLM283 x 1
|
||
| 4 |  |
Main Harness Clip for ZS125-79-E4 CBCLP021 x 1
|
||
| 5 |  |
Regulator/Rectifier for SR125-E5 RGRC109 x 1
|
||
| 6 |  |
Starter Relay STRY020 x 1
|
||
| 7 |  |
Horn for SR125-E5 HRN041 x 1
|
||
| 8 |  |
Horn for SR125-E5 HRN042 x 1
|
||
| 9 |  |
Flanged Hex Bolt M6 x 12mm BLT124 x 1
|
||
| 10 |  |
Flanged Hex Bolt M6 x 20mm BLT129 x 1
|
||
| 11 |  |
Ignition Coil for ZS125-79-E5, SR125-E5 IGNC081 x 1
|
||
| 12 |  |
Engine Control Unit (ECU) for ZS125-79-E5, SR125-E5 ECU069 x 1
|
||
| 13 |  |
Throttle Cable Bracket for SR125-E5 THCB183 x 1
|
||
| 14 |  |
Bracket for SR125-E5 BRCKT260 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Detroit 125 Euro 5 [SR125-E5] | View parts diagram |
| Sinnis | Outlaw 125 [SR125-S] | |
