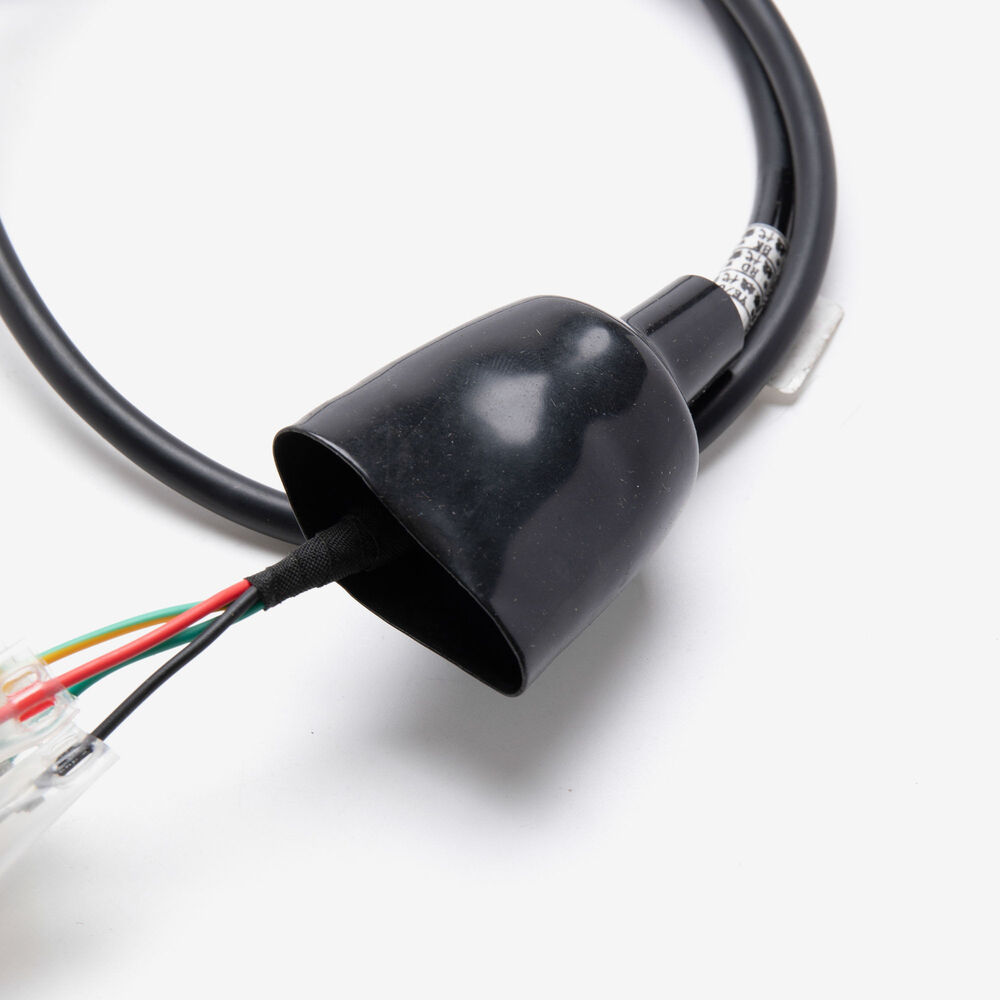

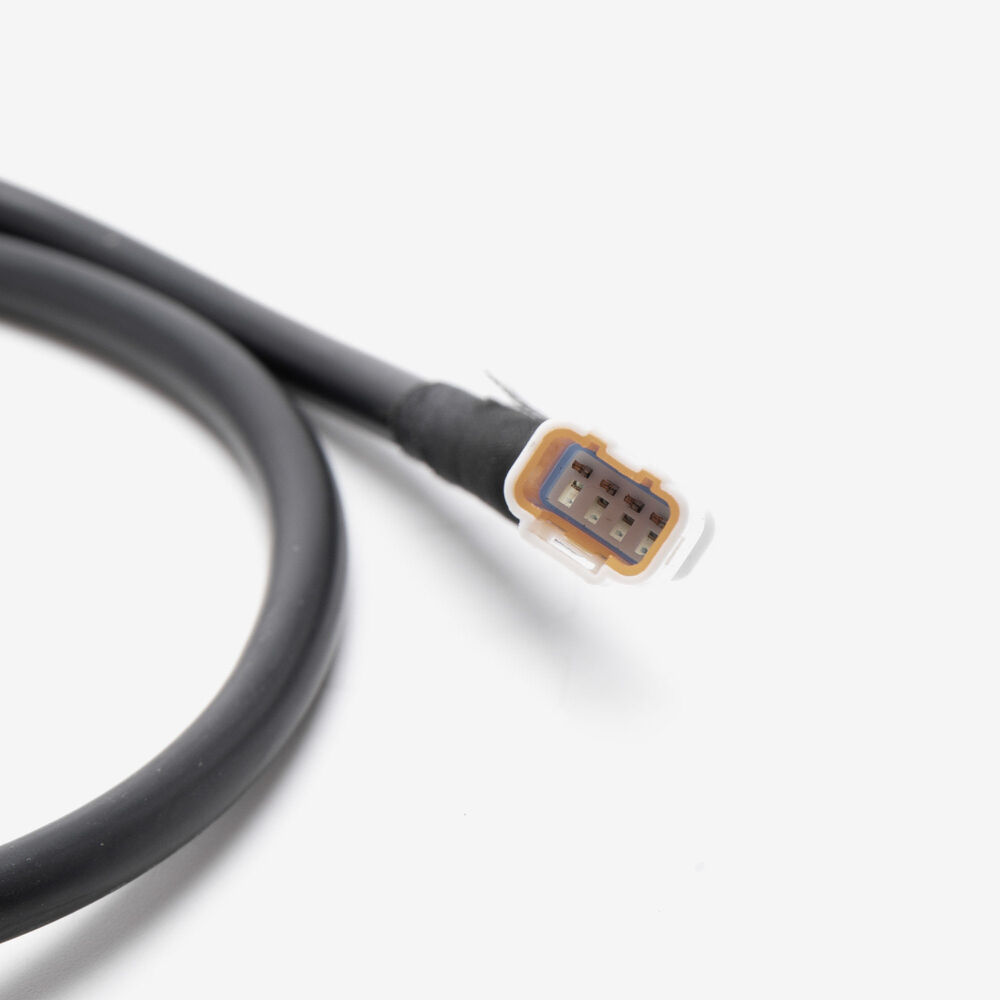

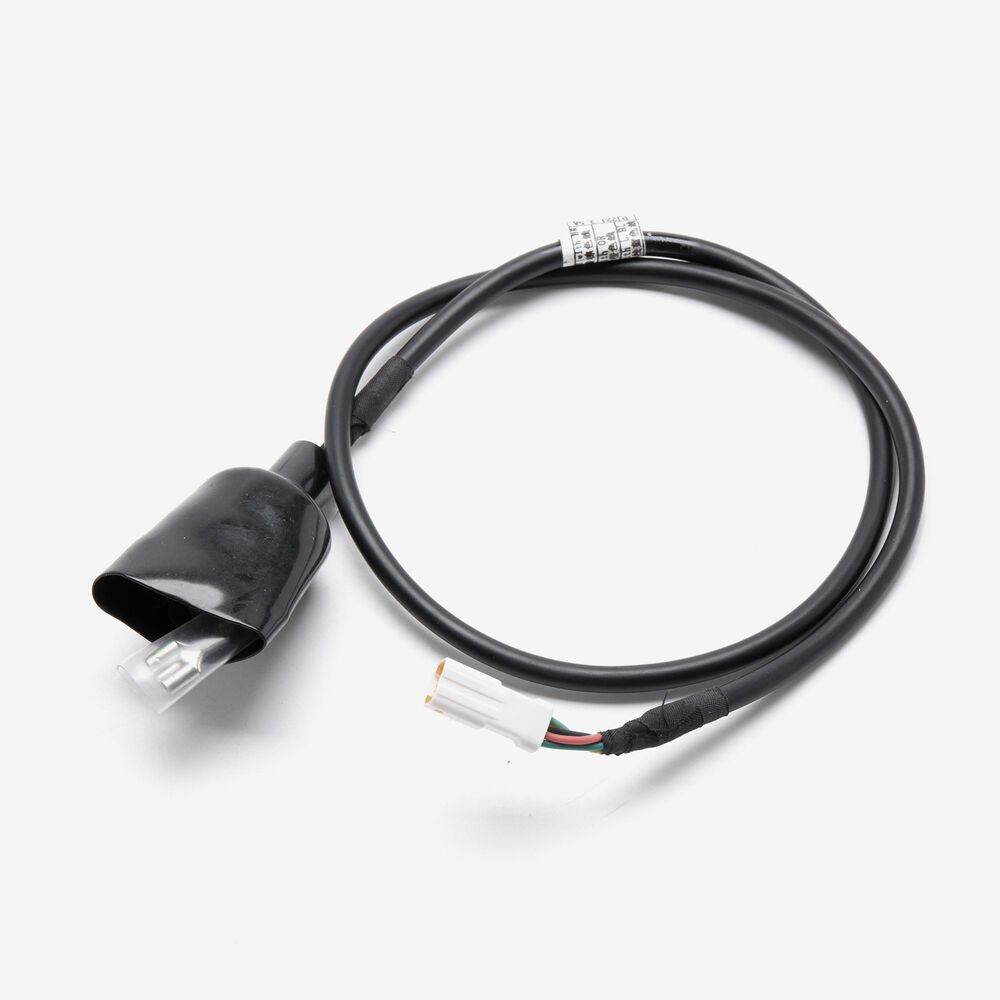

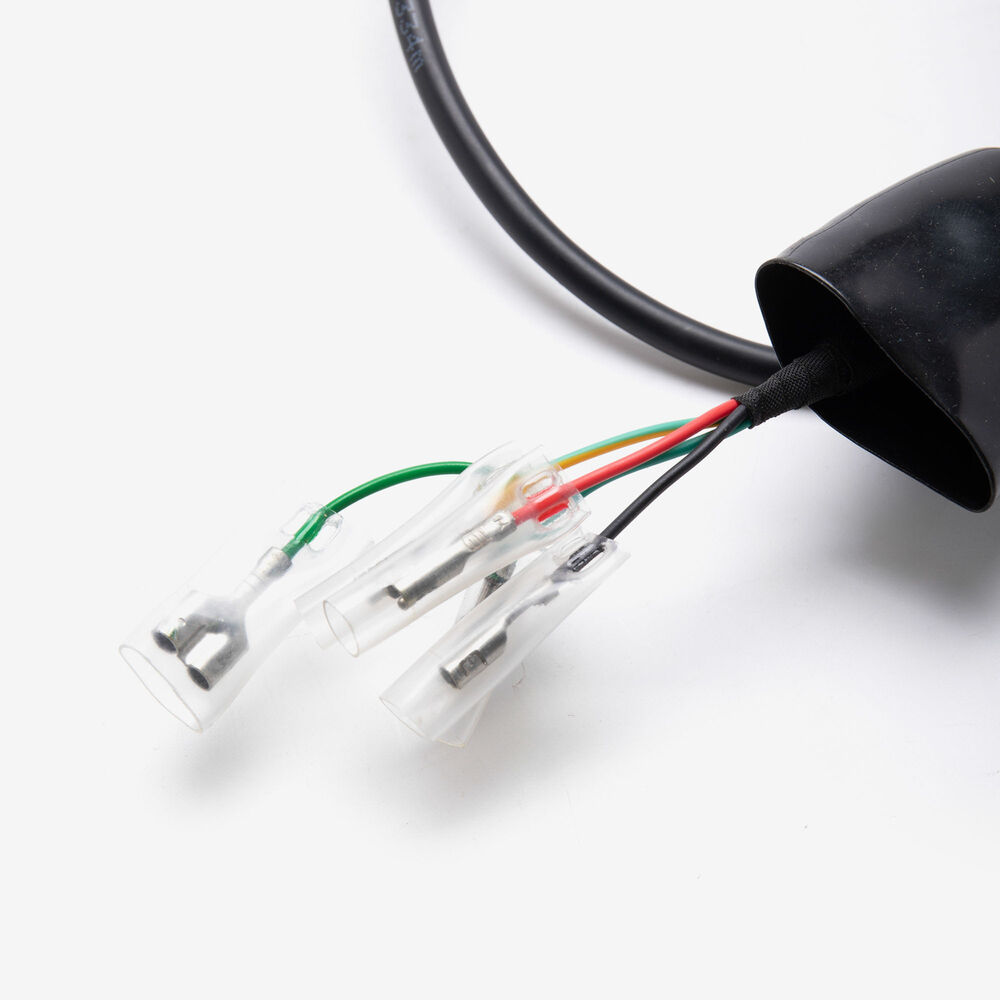

WRLM309"Another great Wiring Loom"
A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Wiring Loom WRLM308 x 1
|
||
| 2 | ![]() |
Lock Set Complete LCKST189 x 1
|
||
| 3 | ![]() |
Indicator Relay for TR125-3-E5 RGRC111 x 1
|
||
| 4 | ![]() |
Battery 6MFZ6S for TR125-3-E5 BTY073 x 1
|
||
| 5 | ![]() |
Starter Relay for TR125-3-E5 STRY071 x 1
|
||
| 6 | ![]() |
Horn HRN012 x 1
|
||
| 7 | ![]() |
Ignition Coil IGNC079 x 1
|
||
| 8 | ![]() |
Regulator/Rectifier RGRC084 x 1
|
||
| 9 | ![]() |
ECU for TR125-3-E5 ECU088 x 1
|
||
| 10 | ![]() |
HT Lead and Spark Plug Cap HTLD002 x 1
|
||
| 11 | ![]() |
Side Stand Switch SWSTD042 x 1
|
||
| 12 | ![]() |
ECU Relay for TR125-3-E5 ECURY008 x 1
|
||
| 13 | ![]() |
Fuse for TR125-GP2-E5 FUSE011 x 1
|
||
| 14 | ![]() |
Rear Light Harness WRLM309 x 1
|
||
| 15 | ![]() |
Cable Clip for TR125-3-E5 CBCLP072 x 1
|
||
| 17 | ![]() |
Rear ABS Sensor for TR125-3-E5 SPA255 x 1
|
||
| 18 | ![]() |
Front ABS Sensor for TR125-3-E5 SPA256 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram |
