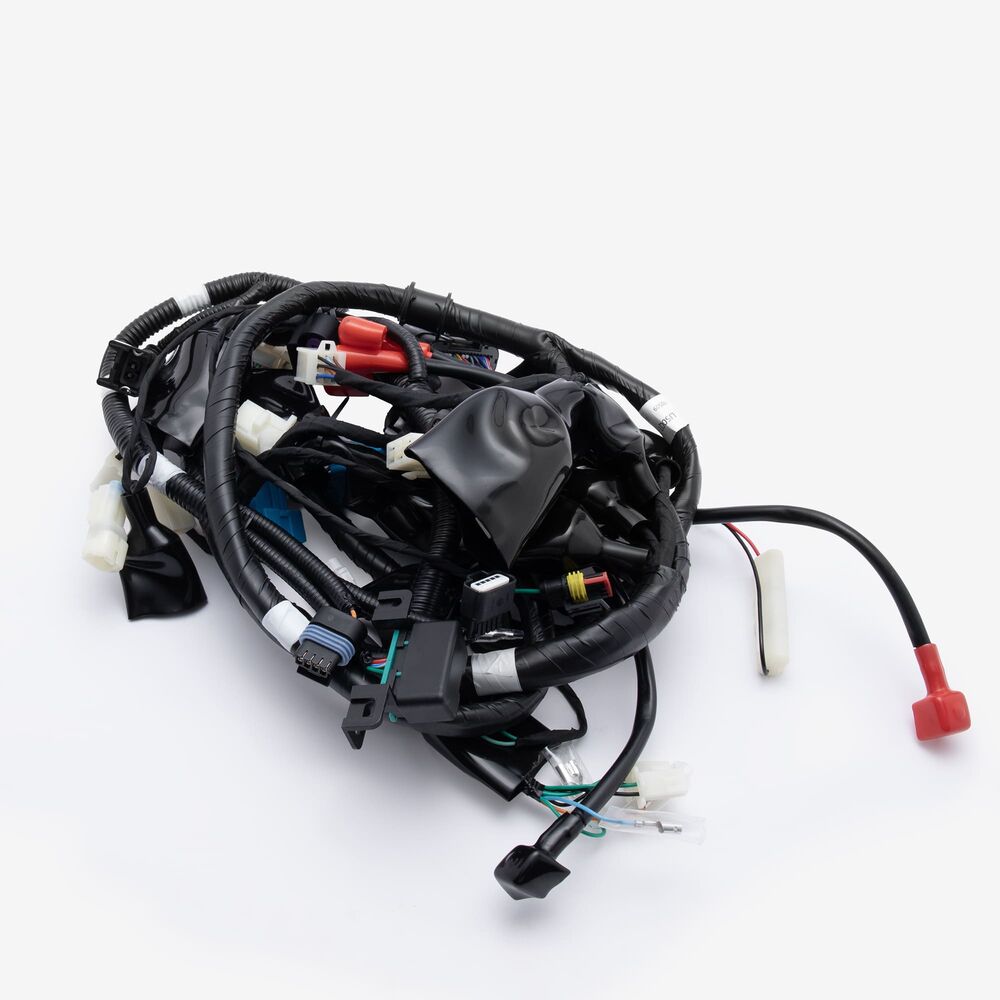

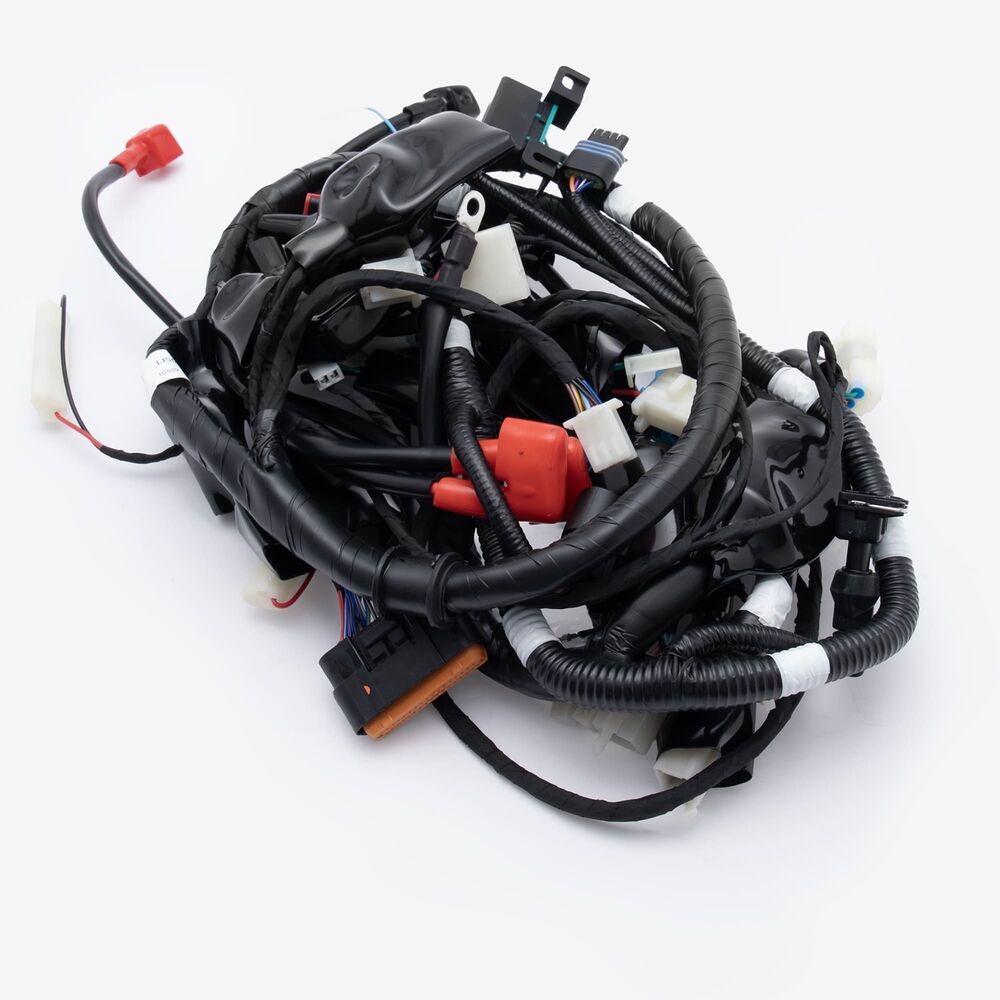

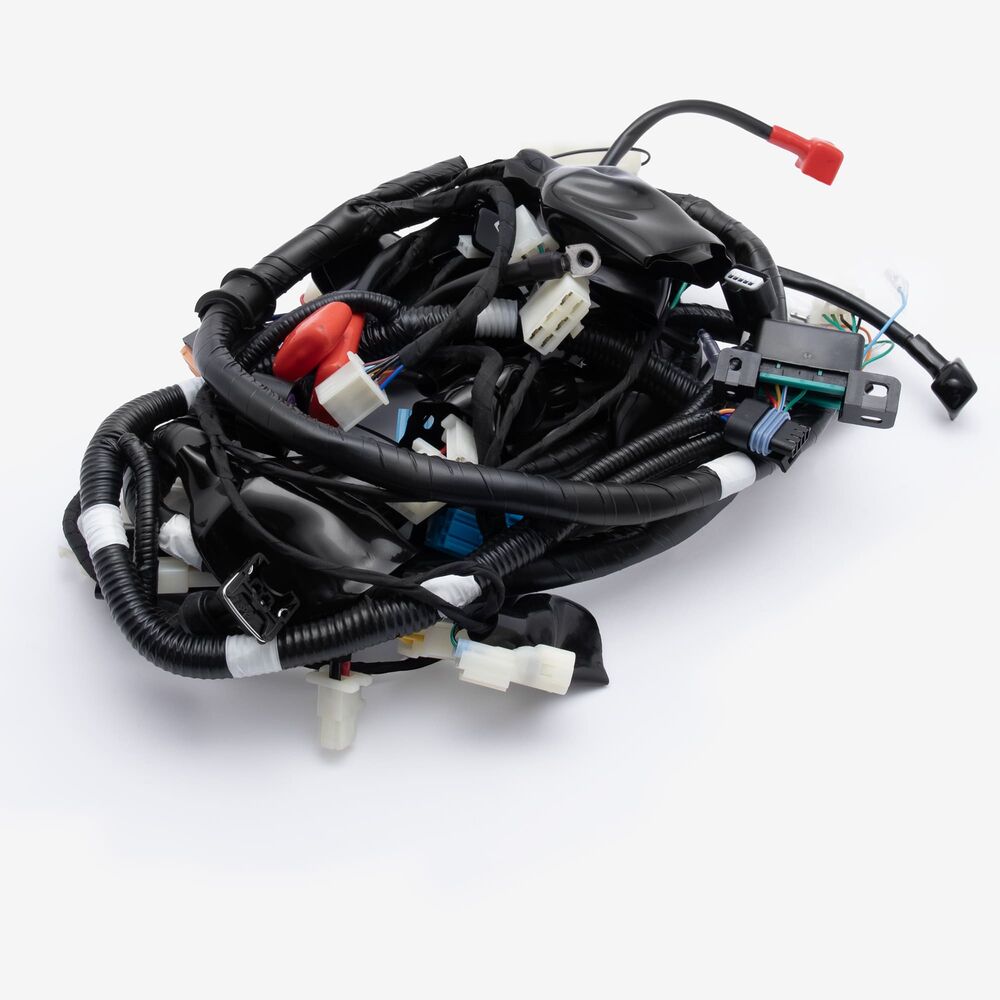

WRLM325"In the category of Wiring Looms and Harnesses, Wiring Looms"
A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Wiring Loom WRLM325 x 1
|
||
| 2 | ![]() |
Fuse 10A FUSE002 x 1
|
||
| 3 | ![]() |
Battery YTX7A BTY079 x 1
|
||
| 4 | ![]() |
Speed Sensor SPSEN006 x 1
|
||
| 5 | ![]() |
Starter Relay STRY013 x 1
|
||
| 6 | ![]() |
EFI/Ignition Relay 20A STRY056 x 1
|
||
| 7 | ![]() |
Headlight Relay LTRY005 x 1
|
||
| 9 | ![]() |
Ignition Coil IGNC098 x 1
|
||
| 10 | ![]() |
Horn for LJ125T-9M-E5, LJ125T-X-E5 HRN040 x 1
|
||
| 11 | ![]() |
DRL Indicator Relay 3 Wires INDRY021 x 1
|
||
| 13 | ![]() |
Lambda Sensor LMSEN048 x 1
|
||
| 15 | ![]() |
Regulator / Rectifier RGRC077 x 1
|
||
| 17 | ![]() |
ECU ECU099 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 E55 [LJ50QT-9M-E55] | View parts diagram |
