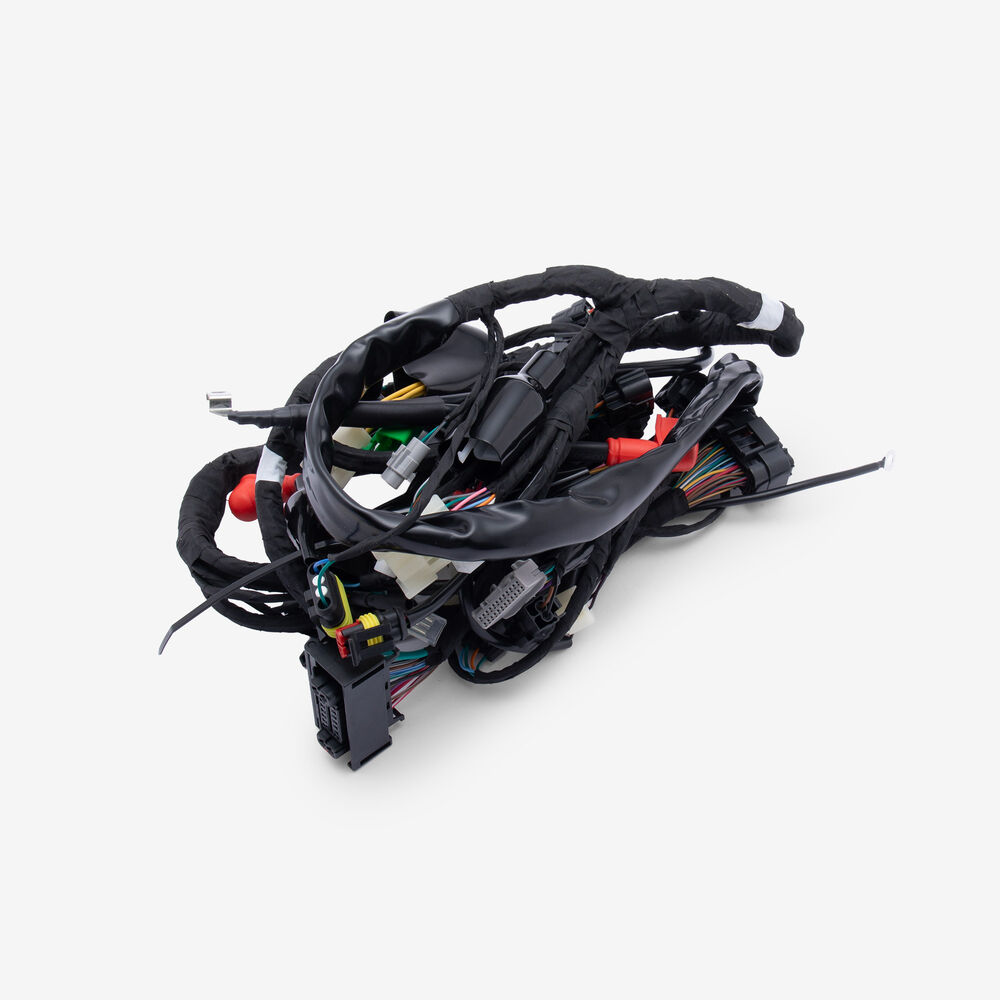

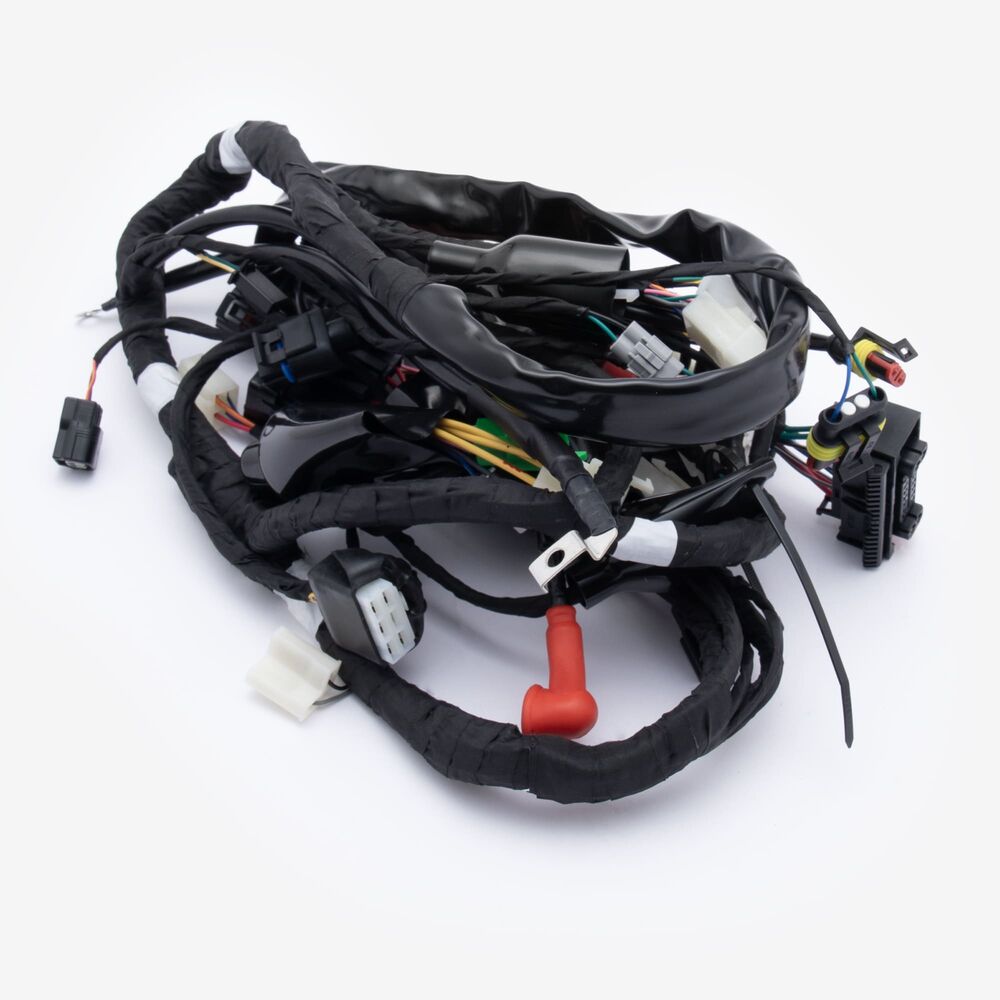

WRLM326"In the category of Wiring Looms and Harnesses, Wiring Looms"
A motorcycle wiring loom, also known as a wiring harness, is a bundle of wires and connectors that transmits electrical power and signals throughout the motorcycle. It organizes and protects the electrical wiring, ensuring connections between components such as the ignition system, lighting, and various sensors. The loom is typically wrapped in protective sheathing to guard against wear and damage, and is designed to streamline installation and maintain a neat, efficient electrical system.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Wiring Loom WRLM326 x 1
|
||
| 2 | ![]() |
ECU ECU100 x 1
|
||
| 4 | ![]() |
Regulator/Rectifier for ZS125T-48, ZS125-39-E5 RGRC082 x 1
|
||
| 5 | ![]() |
Flanged Hex Bolt M6 x 20mm BLT129 x 1
|
||
| 6 | ![]() |
Starter Relay for ZS125-39-E5 STRY068 x 1
|
||
| 7 | ![]() |
Ignition Coil IGNC096 x 1
|
||
| 9 | ![]() |
Horn for SR125-E5 HRN042 x 1
|
||
| 10 | ![]() |
Indicator Relay INDRY004 x 1
|
||
| 11 | ![]() |
Headlight Relay for BT49QT-9 BT49QT-20BB LTRY001 x 1
|
||
| 12 | ![]() |
Clip CLP001051 x 1
|
||
| 13 | ![]() |
Flanged Hex Bolt M6 x 12mm BLT124 x 1
|
||
| 14 | ![]() |
Fuse F Type 10A FUSE030 x 1
|
||
| 15 | ![]() |
Fuse F type 15A for ZS1500D-2 FUSE008 x 1
|
||
| 16 | ![]() |
Fuse F Type 20A FUSE028 x 1
|
||
| 17 | ![]() |
Ignition Relay STRY074 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LS-Z E55 [ZS125-39-E55] | View parts diagram |
