Description
"Another great Fitting"

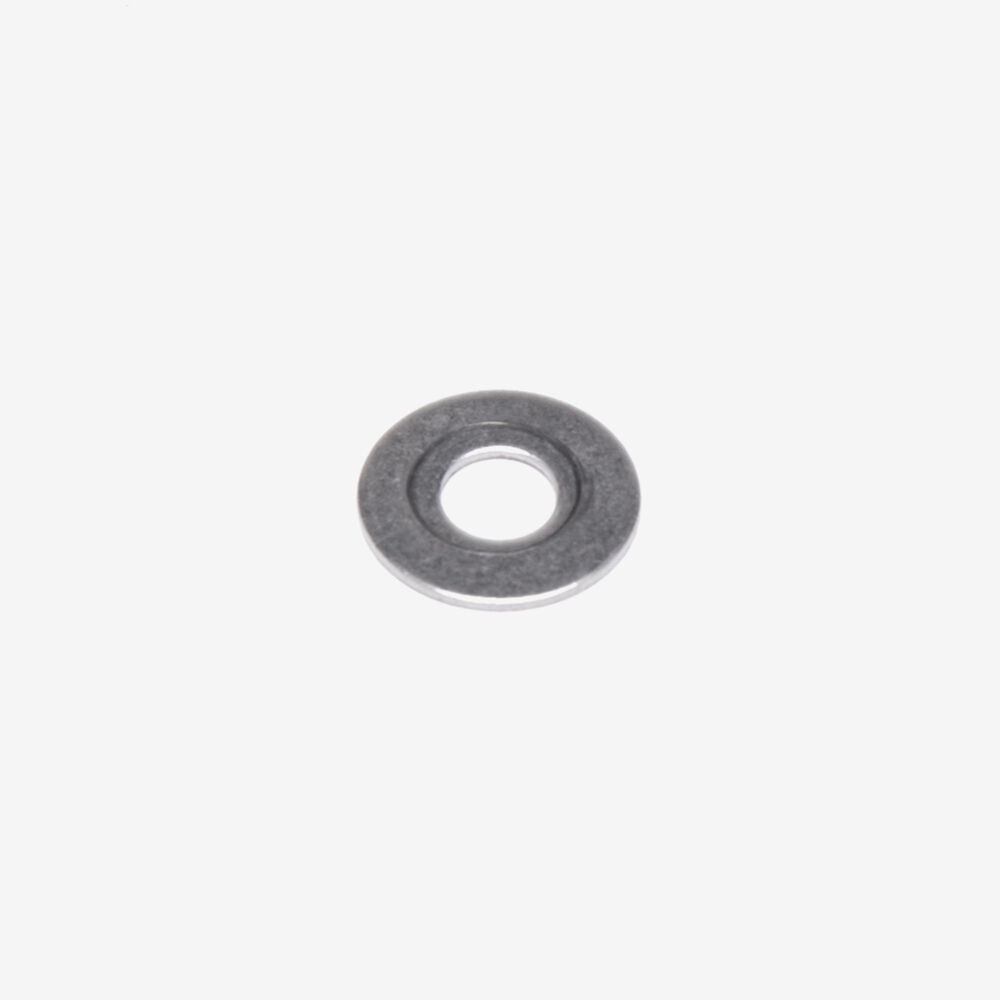

Washer GB/T 97.1
This washer is a crucial component for various fittings on your motorcycle or scooter.
- Specifications: 16mm outer diameter, 6mm inner diameter, 1mm thickness.
- Material: Durable metal construction for reliable performance.
- Application: Ideal for use with fairing and bodywork, electrical components, mudguards, forks, and swingarm assemblies.
- Standard: Conforms to GB/T 97.1 standards for quality assurance.
Ensure secure and proper fitting with this essential hardware.
Product Diagram

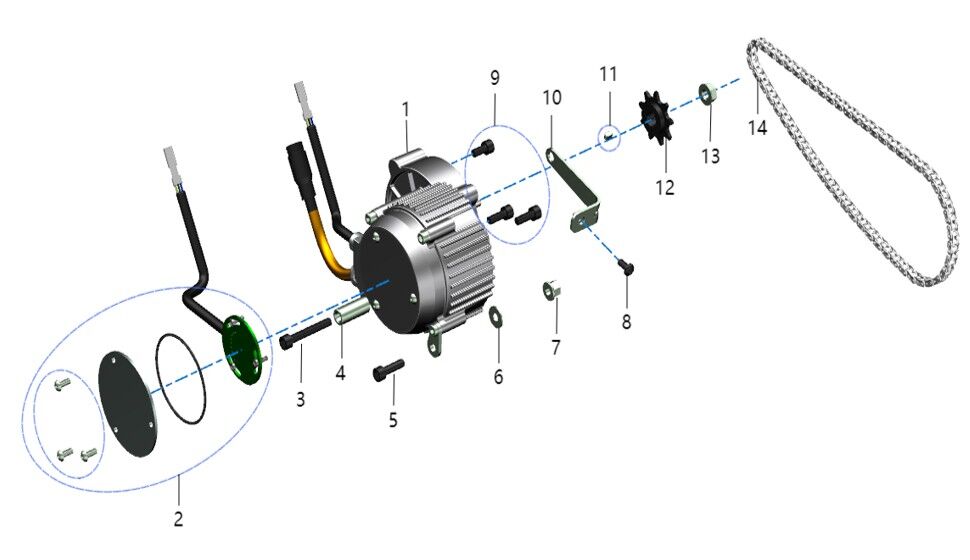

MOTOR ASSEMBLY diagram - Talaria JR-16 - ET01P
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Motor 24V MTR048 x 1
|
£370.99 | |
| 2 | |
Hall Effect Sensor HEFS009 x 1
|
£46.99 | |
| 3 | |
Bolt M6 x 45mm BLT1163 x 1
|
£1.99 | Soon |
| 4 | |
Spacer 28 x 10.5 x 6.5mm SPCR340 x 1
|
£2.49 | Soon |
| 5 | |
Bolt M6 x 20mm BLT1065 x 1
|
£1.99 | |
| 6 | |
Washer 16 x 6 x 1mm WSH0097 x 1
|
£1.99 | |
| 8 | |
Bolt M5 x 14mm BLT1066 x 1
|
£1.99 | |
| 9 | |
Bolt M6 x 12mm BLT1067 x 1
|
£1.99 | |
| 10 | |
Motor Bracket BRCKT492 x 1
|
£24.99 | |
| 11 | |
Woodruff Key 4 x 4 x 8mm WDKY033 x 1
|
£1.99 | |
| 12 | |
Front Sprocket 410-9T SPKF080 x 1
|
£14.49 | |
| 13 | |
Hexagon Flange Lock Nut (GB/T 6187.1) M8 x 1.25mm NUT214 x 1
|
£2.49 | |
| 14 | |
Standard Chain 411-66 CHN123 x 1
|
£17.49 |
More Product Diagrams
This part appears on 8 other diagrams
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Talaria | JR-16 [ET01P] | View parts diagram |
| Komodo L3e [TL65] | View parts diagram | |
| Komodo [TL6000] | View parts diagram | |
| MX4 Sting R Road Legal [TL50] | View parts diagram | |
| MX4 Sting R [TL4000] | View parts diagram | |
| Sting Pro L1e Road legal [TL55] | View parts diagram | |
| X3 MX [TL2500] | View parts diagram | |
| X3 Mini MX [TL2500MINI] | View parts diagram | |
| X3 Pro MX [TL2500-V2] | View parts diagram | |
| X3 Pro Road Legal [TL25-V2] | View parts diagram | |
| X3 Road Legal [TL25] | View parts diagram | |
