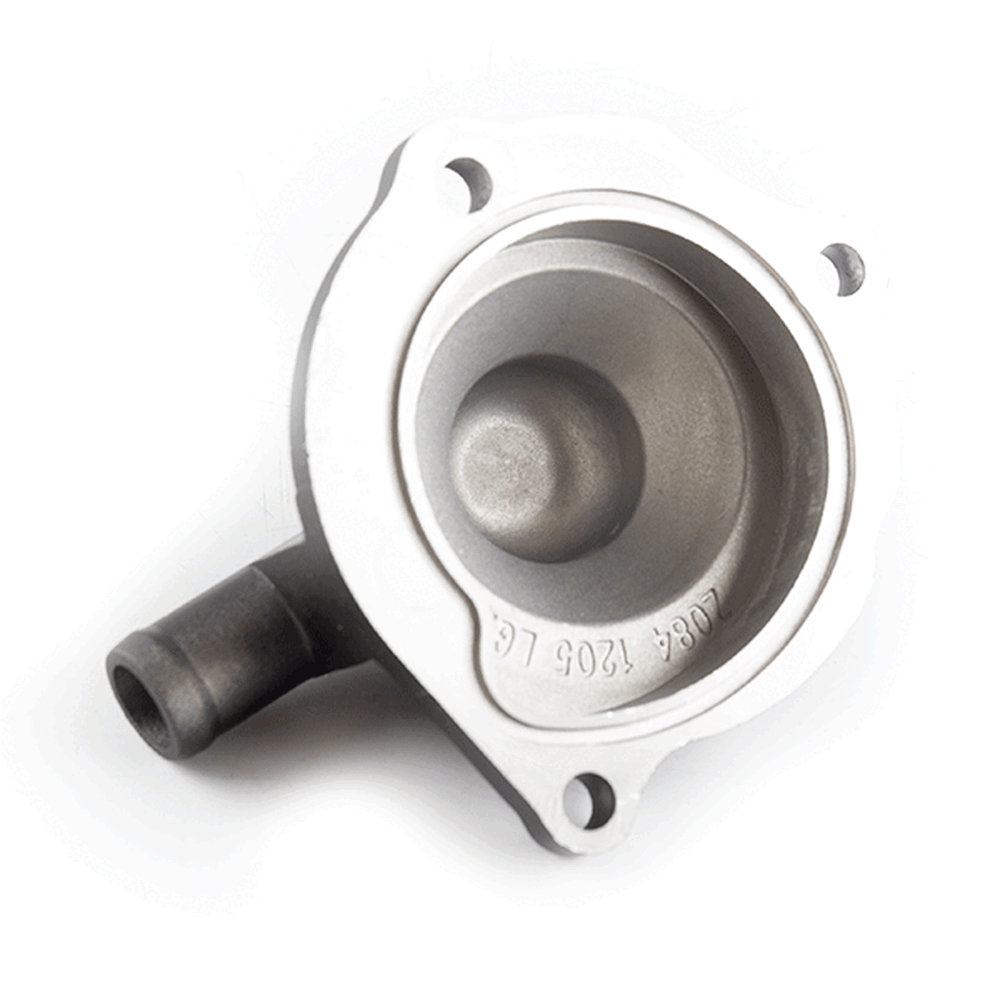

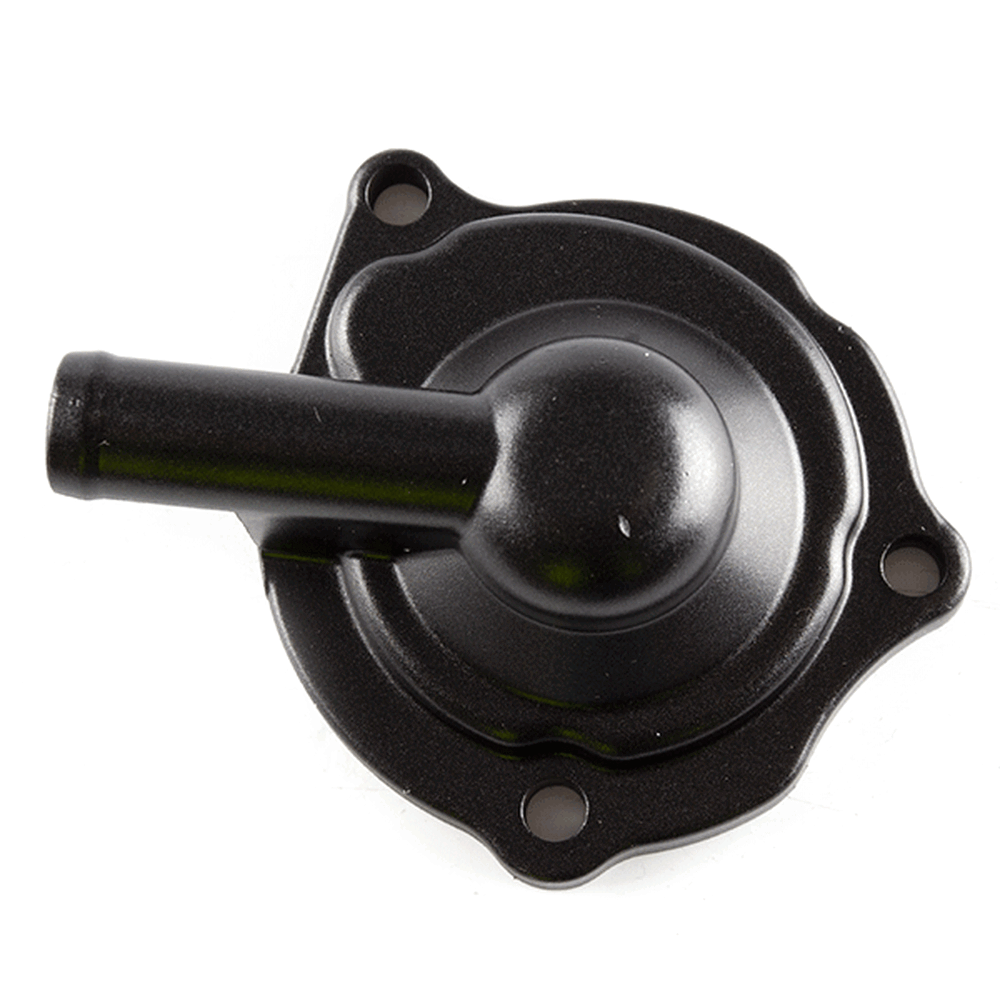

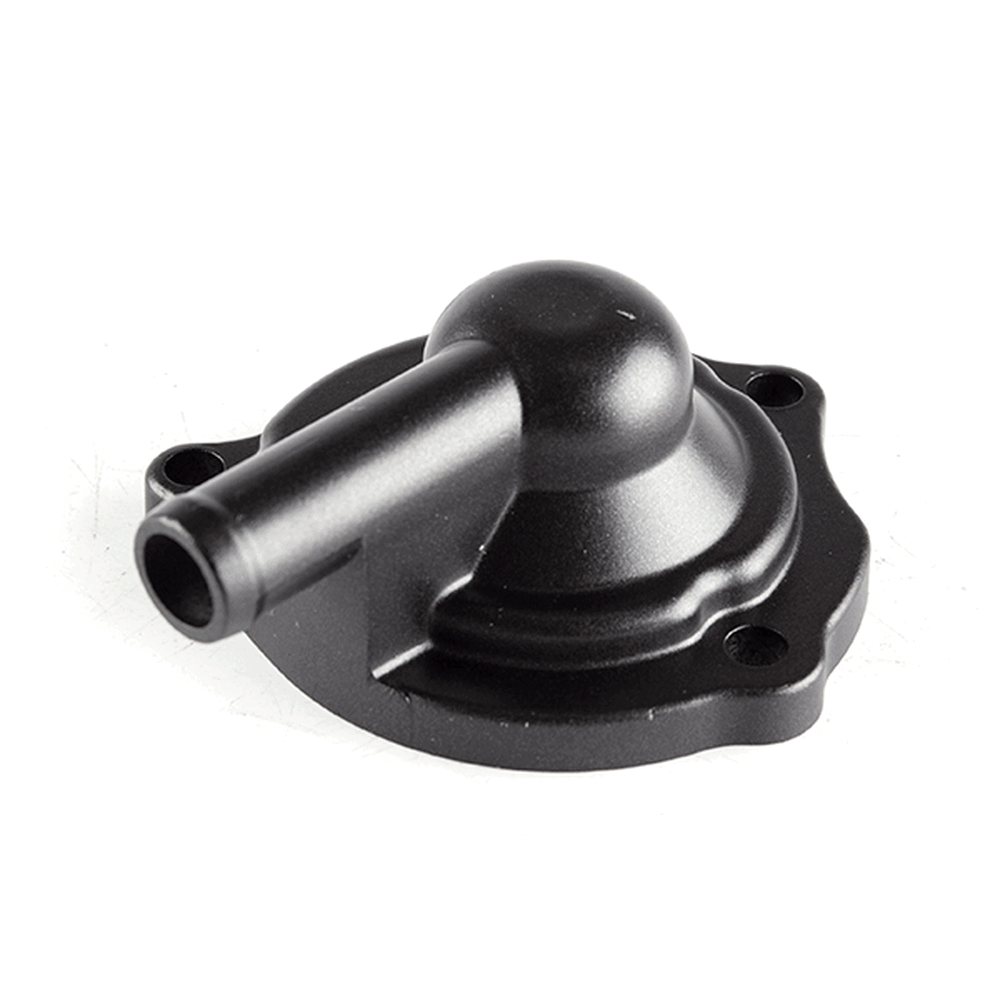

Water Pump Housing
WTPH006
Description
"Another great Water Pump"
The water pump housing in a motorcycle encases the water pump and its components. It is designed to protect the pump mechanism, direct coolant flow, and ensure a secure connection to the engine and radiator. Made from materials like aluminum or plastic for durability and heat resistance, the housing plays a crucial role in maintaining the integrity and efficiency of the cooling system.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1, 23 |  |
Flanged Hex Bolt M6 M6 x 30mm BLT078 x 3
|
||
| 2 |  |
Flanged Hex Bolt with Shank M6 x 40mm BLT079 x 7
|
||
| 4 |  |
Clutch Actuator Arm CLAA029 x 1
|
||
| 5 |  |
Oil Seal 12 x 18 x 5mm OLSL074 x 1
|
||
| 6 |  |
Clutch Arm Spring SPNG250 x 1
|
||
| 8 |  |
Right Engine Casing for SY125-10-SE, SY125-10, MITT125GP ENGCR064 x 1
|
||
| 9, 9 |  |
Oil Dipstick OLDP002 x 1
|
||
| 10 |  |
Dipstick O Ring 18.7 x 25.7 x 3.5mm for ZY125-E4 ORNG050 x 1
|
||
| 12 |  |
Clutch Cable Bracket CBB025 x 1
|
||
| 13 |  |
Right Crankcase (Clutch) Cover Gasket ZY125 for ZS125-48F,ZS125-48E GSKCR024 x 1
|
||
| 15 |  |
Stator Cable Bracket BRCKT102 x 1
|
||
| 16 |  |
Left Crankcase Cover Gasket ZY125 GSKCL019 x 1
|
||
| 17 |  |
Left Engine Casing for ZS125-79 ENGCL065 x 1
|
||
| 18 |  |
Left Black Crankcase Plug ZY125 CRCP015 x 1
|
||
| 19 |  |
O-Ring 27.4 x 32.7 x 2.65mm ORNG040 x 1
|
||
| 20 |  |
Black Engine Timing Check Plug ZY125 ENGTP005 x 1
|
||
| 21 |  |
O-Ring 13.2 x 18.5 x 2.65mm ORNG041 x 1
|
||
| 22 |  |
Hex Bolt M6 x 45mm BLT080 x 1
|
||
| 25 |  |
Sprocket Cover SPKCVR045 x 1
|
||
| 26 |  |
Oil Filter OLF026 x 1
|
||
| 27 |  |
Water Pump O-Ring 106.8 x 110.6 x 1.9mm ORNG055 x 1
|
||
| 28 |  |
Oil Filter Cover OLFH007 x 1
|
||
| 29 |  |
Oil Filter Housing O-Ring ORNG088 x 1
|
||
| 30 | |
Water Pump Housing WTPH006 x 1
|
||
| 32 |  |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 33 |  |
Flanged Hex Bolt with Shank M6 x 35mm BLT100 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LXR 125 [SY125-10] | View parts diagram |
| LXR SE 125 [SY125-10-SE] | View parts diagram | |
| Mitt | MITT 125 GP [MITT125GP] | |
