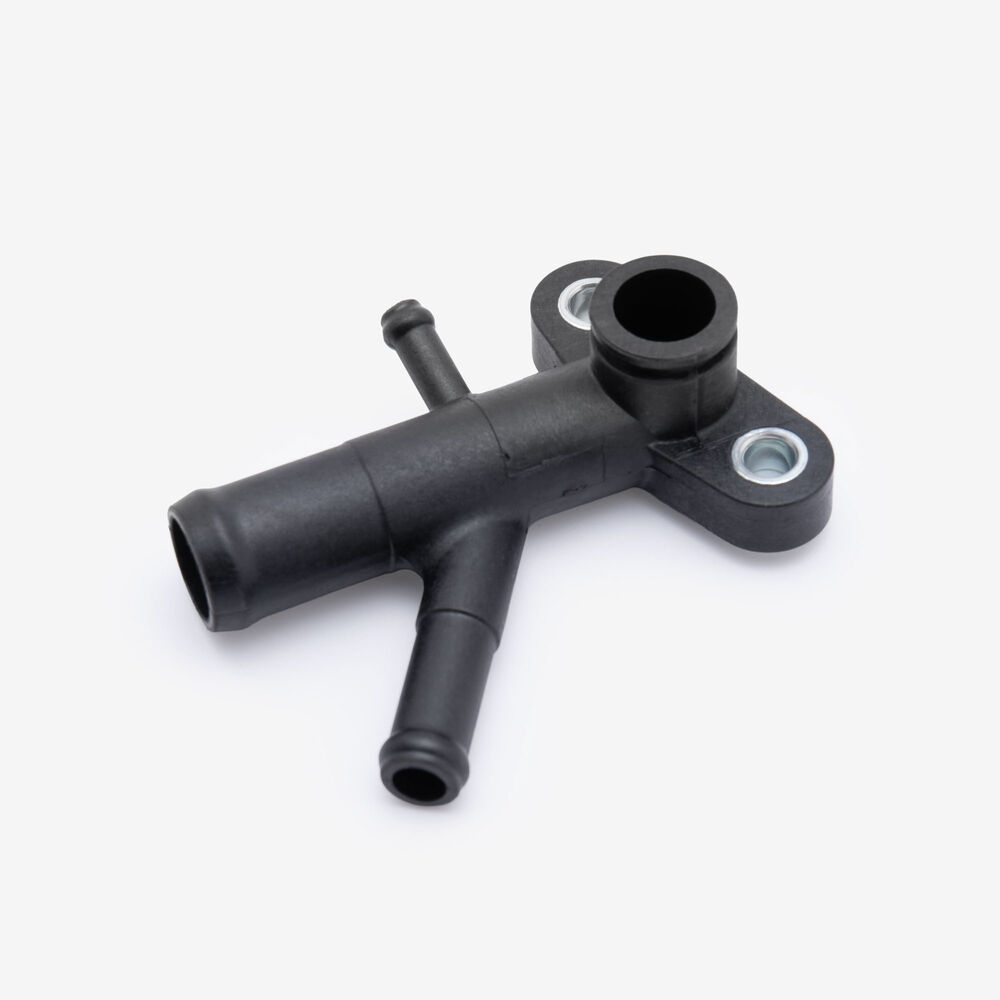

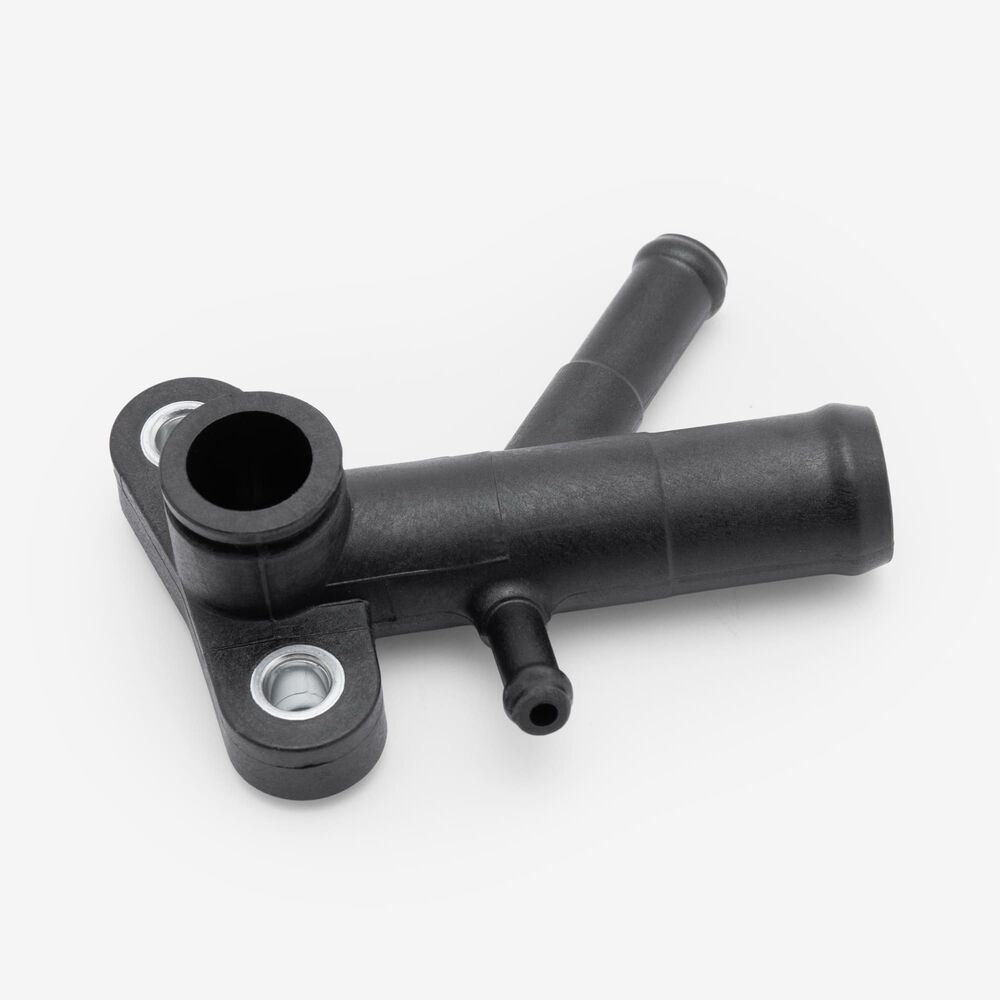

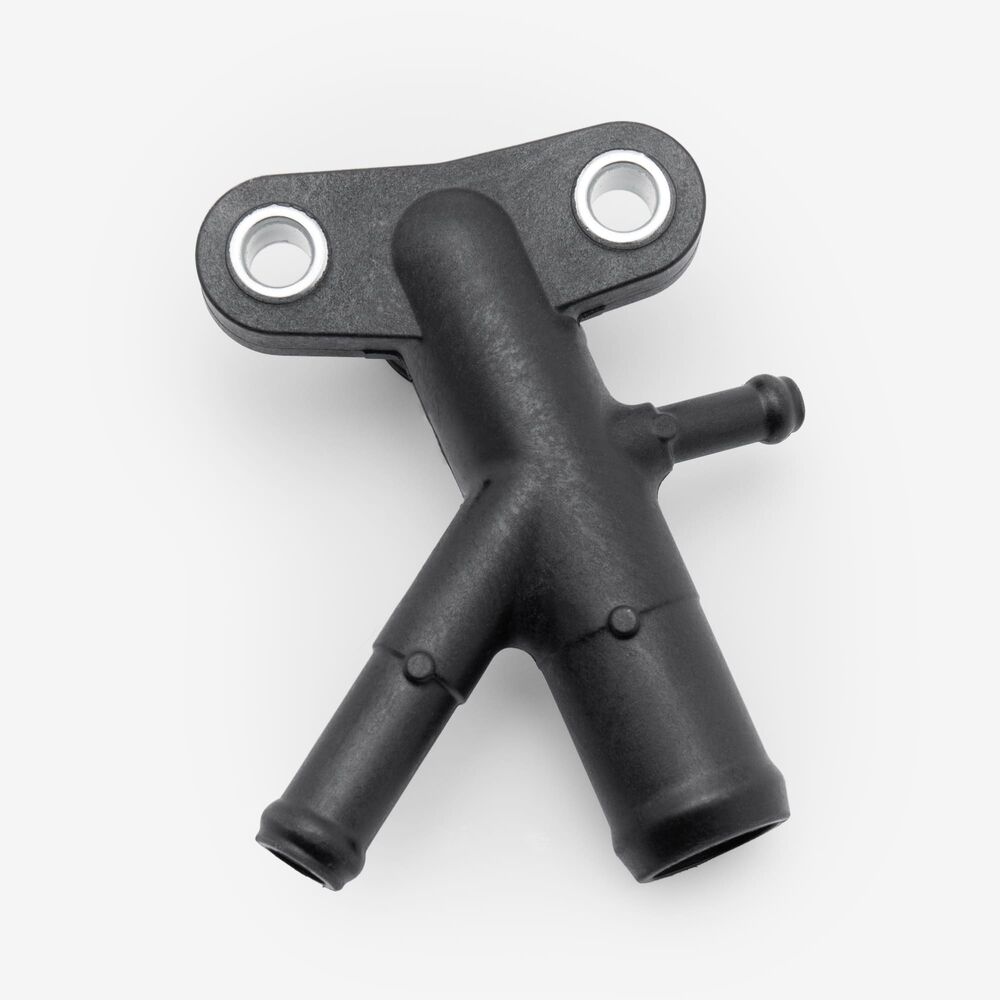

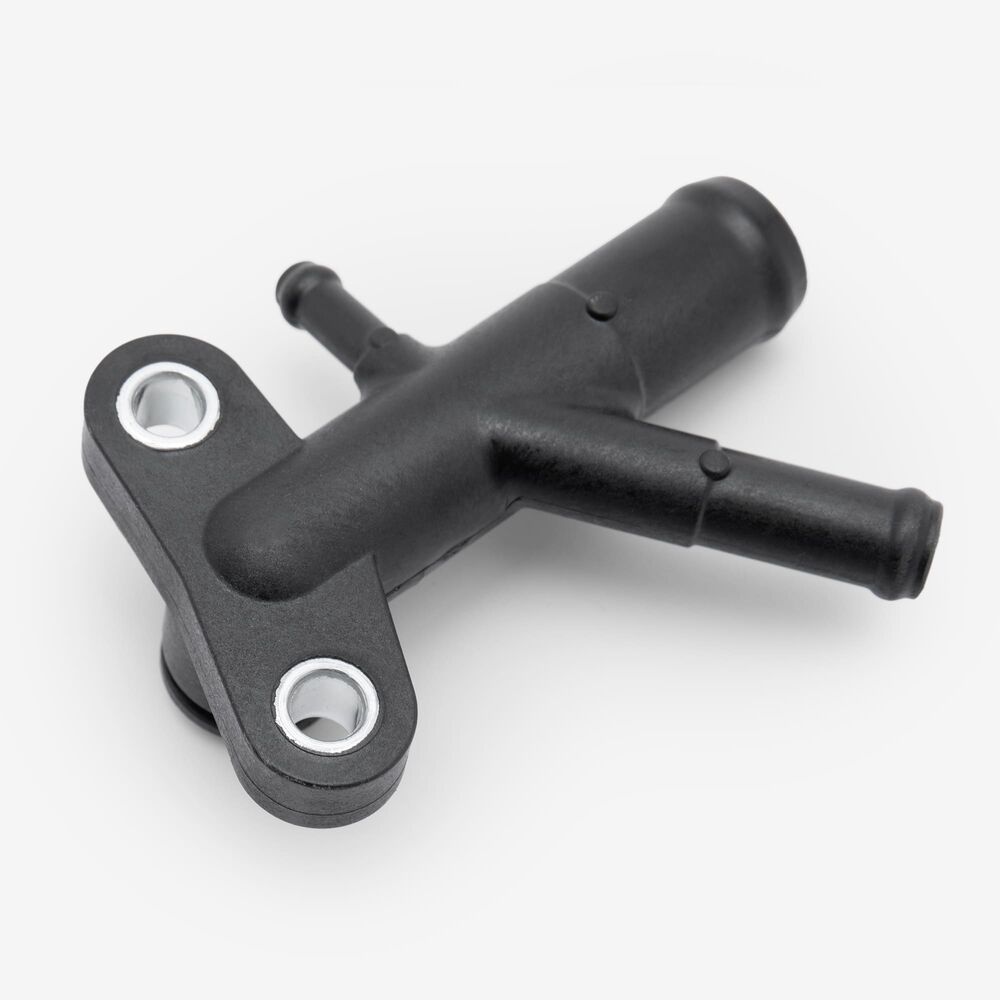

Water Pump Housing
WTPH023
Description
"In the category of Fuel Injectors and Injections, Fuel Pumps"
The water pump housing in a motorcycle encases the water pump and its components. It is designed to protect the pump mechanism, direct coolant flow, and ensure a secure connection to the engine and radiator. Made from materials like aluminum or plastic for durability and heat resistance, the housing plays a crucial role in maintaining the integrity and efficiency of the cooling system.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Bolt M6 x 22mm BLTCH026 x 1
|
||
| 3 | |
Water Pump Housing WTPH023 x 1
|
||
| 5 |  |
Coolant Hose 60 x 12 x 5mm WTHS094 x 1
|
||
| 6 |  |
Seal 15.5 x 2mm SEAL205 x 1
|
||
| 8 |  |
Coolant Hose 170 x 24 x 16mm WTHS095 x 1
|
||
| 9 |  |
Water Pump WTPMP028 x 1
|
||
| 11 |  |
Water Pipe 160 x 24 x 16mm WTPP015 x 1
|
||
| 12 |  |
Water Pipe 120 x 17 x 9mm WTPP016 x 1
|
||
| 14 |  |
Thermostat THMST020 x 1
|
||
| 16 |  |
Water Pipe 110 x 21.5 x 13.5mm WTPP017 x 1
|
||
| 20 |  |
Radiator Surround Panel PNLRS013 x 1
|
||
| 21 |  |
Bolt M6 x 16mm BLT967 x 1
|
||
| 23 |  |
Radiator RAD036 x 1
|
||
| 24 |  |
Engine Temperature Sensor EFI TMPSEN001 x 1
|
||
| 26 |  |
Radiator Cover PNLRS014 x 1
|
||
| 28 |  |
Seal Strip SEAL206 x 1
|
||
| 30 |  |
Radiator Bracket RADB012 x 1
|
||
| 34 |  |
Cooling Fan FAN006 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | D2 E55 [GC125T-3A-E55] | View parts diagram |
| XDV 125 E55 [LJ125T-18A-E55] | View parts diagram | |
