WTRSVR021"Another great FOW Part"

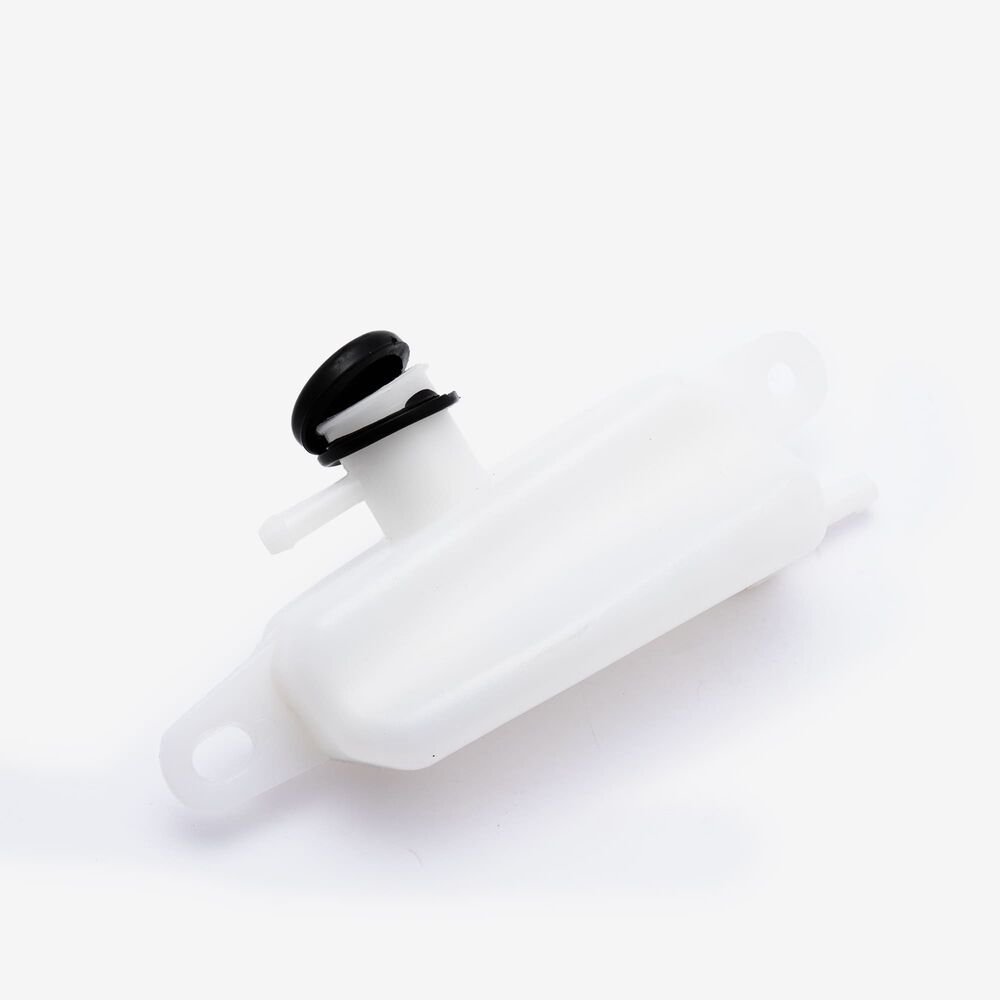

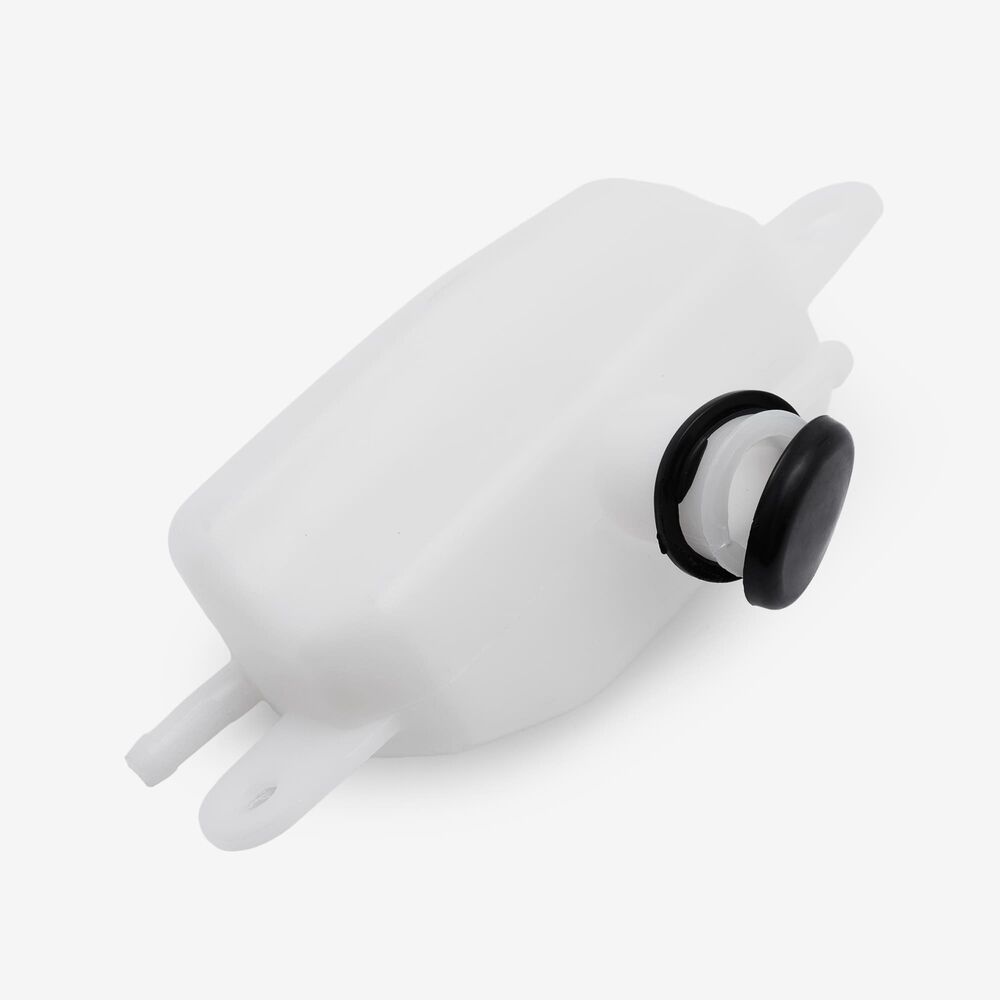

The coolant reservoir, also known as the expansion tank or overflow tank, is a container that holds excess coolant from the motorcycle's cooling system. It is designed to accommodate the expansion of coolant as it heats up and to ensure there is always an adequate supply of coolant available for the engine. Positioned near the radiator or cooling system, the reservoir helps to maintain proper coolant levels and prevents overheating by allowing coolant to return to the system as it cools down.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Engine Complete ENG149 x 1
|
||
| 3 | ![]() |
Air Filter Assembly (Air Box) ARFA169 x 1
|
||
| 5 | ![]() |
Inner Rear Mudguard PNLIR020 x 1
|
||
| 6 | ![]() |
Bolt M6 x 20mm BLT963 x 1
|
||
| 7 | ![]() |
Bolt M6 x 12mm BLT961 x 1
|
||
| 8 | ![]() |
Shock Absorber SHK210 x 1
|
||
| 11 | ![]() |
Bolt M6 X 30 Mm BLT964 x 1
|
||
| 12 | ![]() |
Scooter Wheel Rear WHLR257 x 1
|
||
| 13 | ![]() |
Tyre TYR204 x 1
|
||
| 14 | ![]() |
Tyre Valve Straight VLVTYR001 x 1
|
||
| 17 | ![]() |
Spacer SPCR297 x 1
|
||
| 18 | ![]() |
Lock Nut M16 x 1.5mm NUT244 x 1
|
||
| 19 | ![]() |
Rear Brake Disc Bolt M8 x 25mm BLTD032 x 1
|
||
| 20 | ![]() |
Rear Brake Disc BRDR079 x 1
|
||
| 21 | ![]() |
Exhaust Bracket BRCKT411 x 1
|
||
| 22 | ![]() |
Bolt M6 x 16mm BLT962 x 1
|
||
| 23 | ![]() |
ABS Sensor BRSEN012 x 1
|
||
| 24 | ![]() |
Brake Cable Clip HSCLP127 x 1
|
||
| 26 | ![]() |
Wheel Nut M16 NUT072 x 1
|
||
| 29 | ![]() |
Complete Exhaust System EXCS223 x 1
|
||
| 31 | ![]() |
Centre Stand STDC143 x 1
|
||
| 32 | ![]() |
Centre Stand Cushion STDCC032 x 1
|
||
| 33 | ![]() |
Centre Stand Pin STDPC032 x 1
|
||
| 34 | ![]() |
Lock Nut M10 X 15 X 10.3 Mm NUT245 x 1
|
||
| 35 | ![]() |
Centre Stand Pin 2 x 20mm STDPC033 x 1
|
||
| 36 | ![]() |
Engine Bracket ENGB141 x 1
|
||
| 37 | ![]() |
Engine Mounting Bolt M10 x 235mm BLT965 x 1
|
||
| 38 | ![]() |
Engine Mounting Bolt M12 x 280mm BLT966 x 1
|
||
| 40 | ![]() |
Coolant Reservoir / Expansion Tank WTRSVR021 x 1
|
||
| 41 | ![]() |
Coolant Reservoir / Expansion Tank Cover WTRSVR022 x 1
|
||
| 42 | ![]() |
Coolant Hose WTHS093 x 1
|
||
| 46 | ![]() |
Rubber Bush BCVR021 x 1
|
||
| 47 | ![]() |
Bush BSH225 x 1
|
||
| 48 | ![]() |
Rubber Grommet GRM073 x 1
|
||
| 49 | ![]() |
Cable Clamp CBCLMP016 x 1
|
||
| 51 | ![]() |
Bearing 6303 BRG223 x 1
|
||
| 53 | ![]() |
Seal 47 X 25 X 7 Mm SEAL203 x 1
|
||
| 54 | ![]() |
Heat Shield EXHS013 x 1
|
||
| 55, 59, 61 | ![]() |
Exhaust End Cap EXCVR029 x 1
|
||
| 56, 57, 58, 59, 60 | ![]() |
Heat Shield Fixing Kit EXFX012 x 2
|
||
| 62 | ![]() |
Exhaust Gasket GSKEX125 x 1
|
||
| 64 | ![]() |
Air Filter ARF175 x 1
|
||
| 65 | ![]() |
Air Filter Pipe ARFPP016 x 1
|
||
| 69 | ![]() |
Throttle Body THRB052 x 1
|
||
| 70 | ![]() |
Inlet Manifold MNF116 x 1
|
||
| 71 | ![]() |
Idle Air Controller ACNTRL013 x 1
|
||
| 72 | ![]() |
Throttle Position Sensor TPSEN014 x 1
|
||
| 73 | ![]() |
Fuel Injector FLINJ060 x 1
|
||
| 74 | ![]() |
Fuel Injector Holder FLINJ061 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | D2 E55 [GC125T-3A-E55] | View parts diagram |
