BRMCR065"Another great Master Cylinder"
The master cylinders on both the front and the rear of the bike are basically the same – a piston that pushes brake fluid down the lines to the caliper (the slave), in turn forcing the pistons out to press the brake pads against the disc.

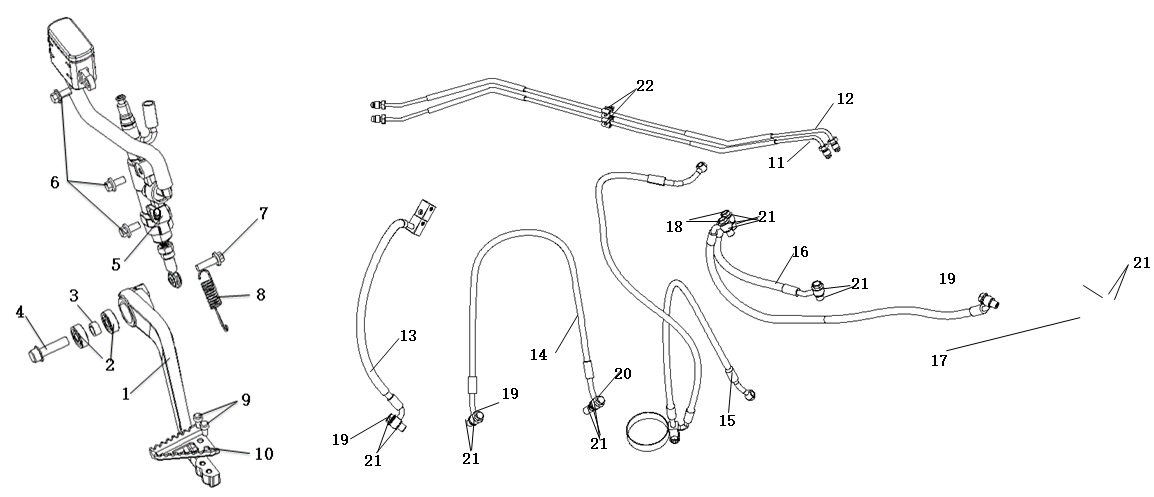

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |

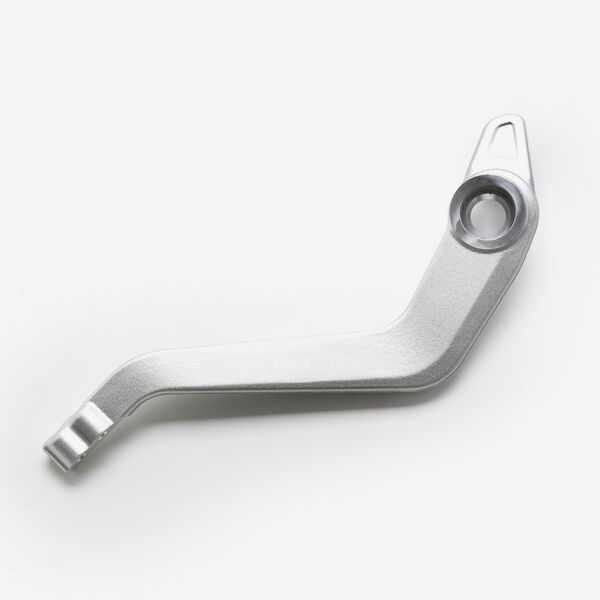

Rear Brake Pedal for KY500X-E5 BRP094 x 1
|
||
| 3 | ![]() |

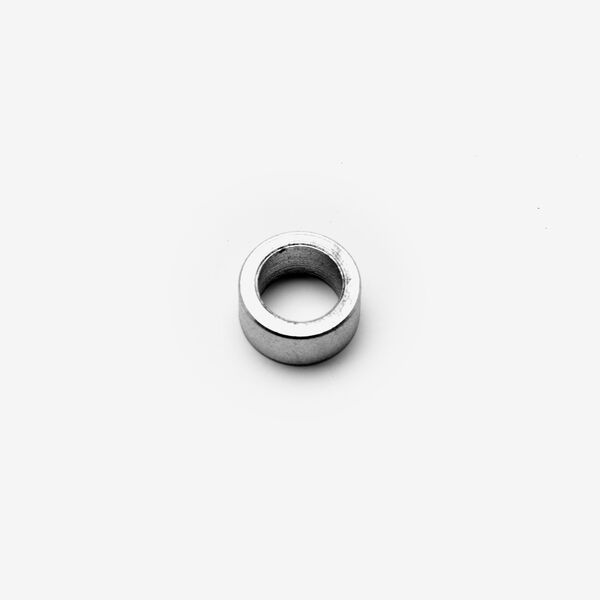

Rear Pedal Bush for KY500X-E5 BSH165 x 1
|
||
| 5 | ![]() |

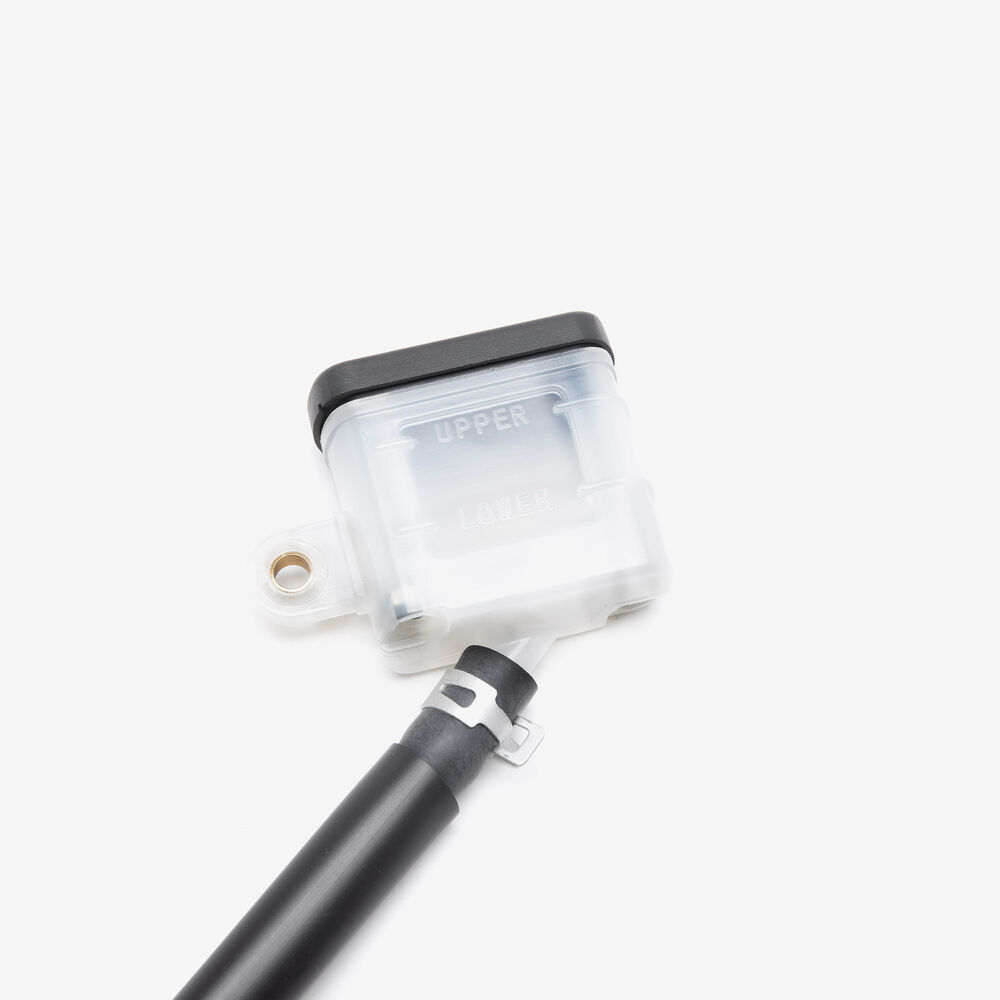

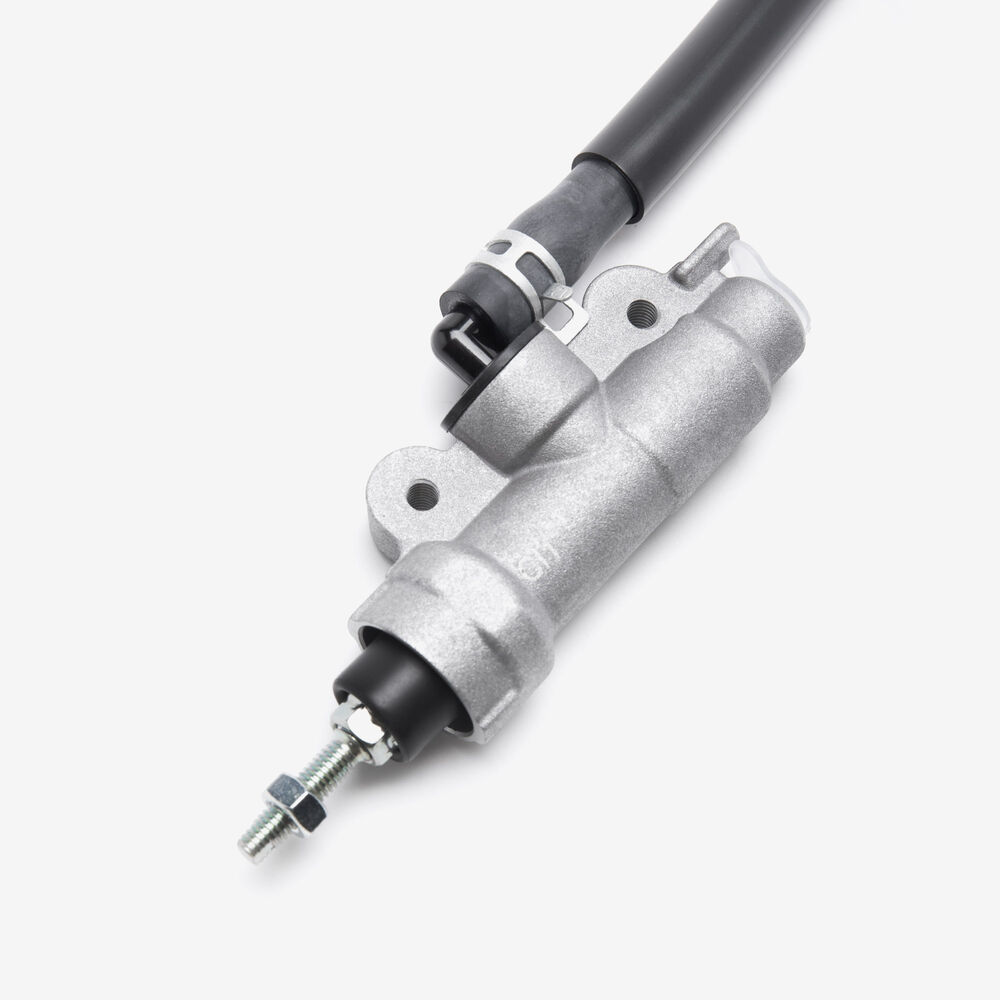

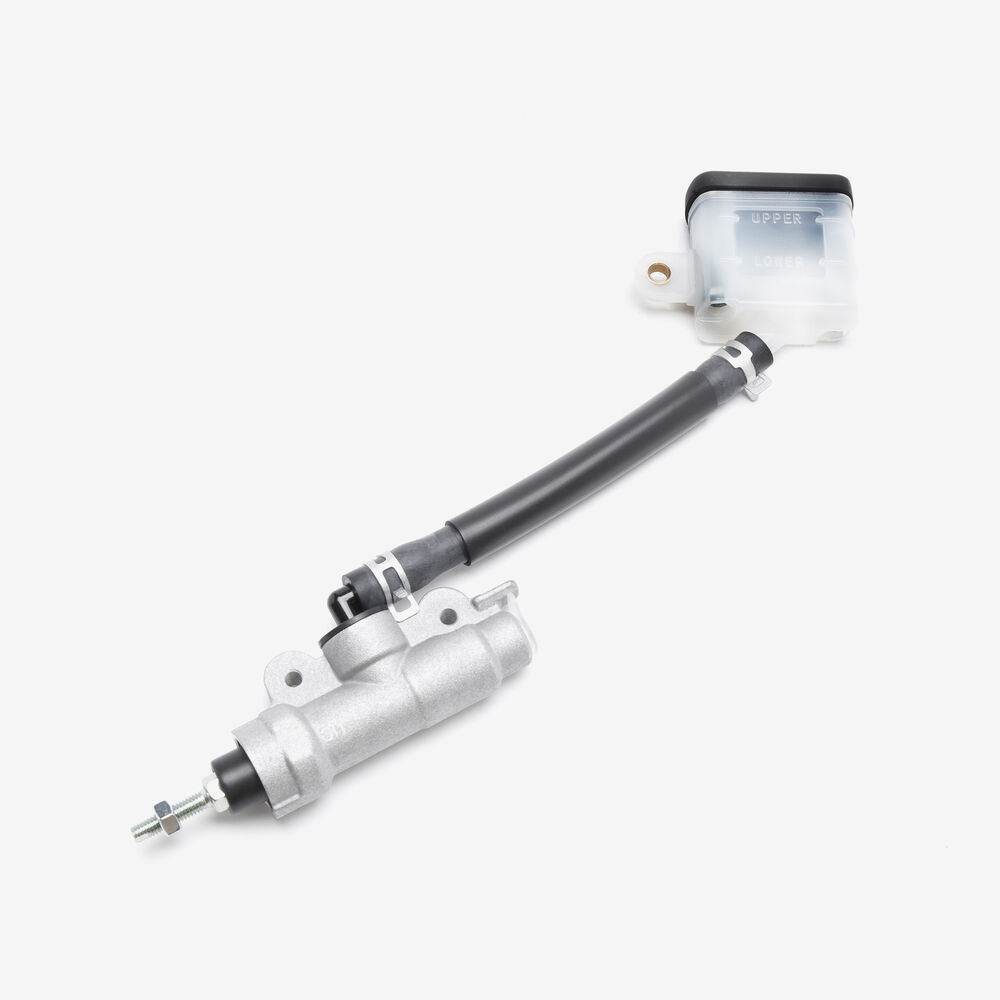

Rear Brake Master Cylinder for KY500X-E5 BRMCR065 x 1
|
||
| 8 | ![]() |

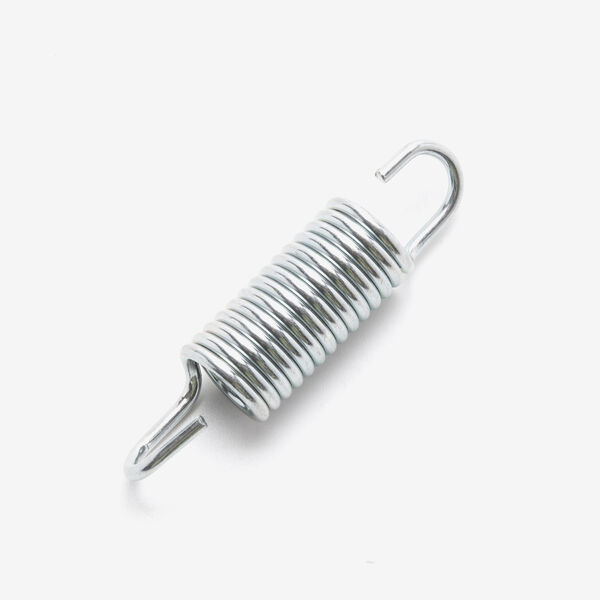

Rear Brake Return Spring for KY500X-E5 SPNG278 x 1
|
||
| 10 | ![]() |

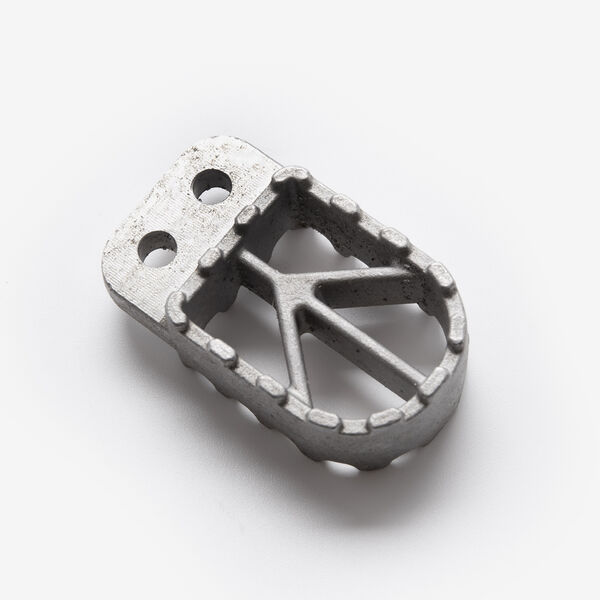

Rear Brake Lever Footpeg for KY500X-E5 BRP080 x 1
|
||
| 11 | ![]() |
ABS Brake Line (in) for KY500X-E5 BRHSF149 x 1
|
||
| 12 | ![]() |
ABS Brake Line (out) for KY500X-E5 BRHSF150 x 1
|
||
| 13 | ![]() |

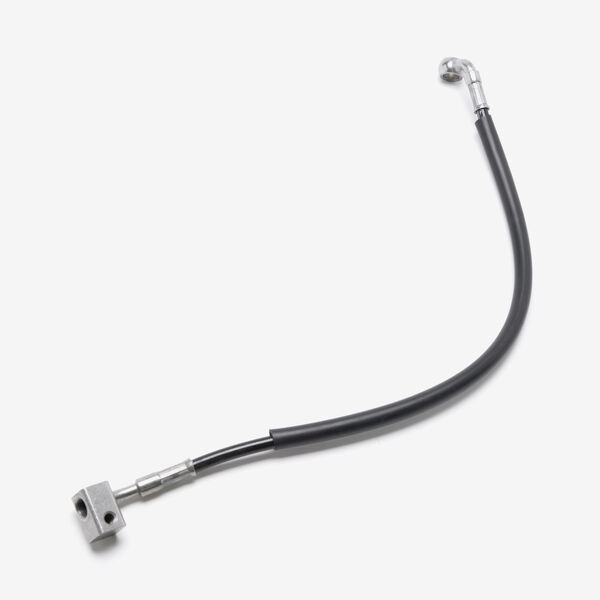

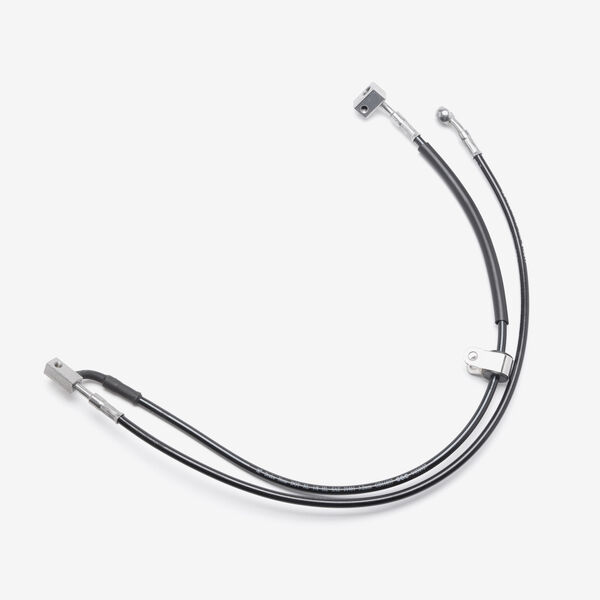

Front Brake Hose for KY500X-E5 BRHSF151 x 1
|
||
| 14 | ![]() |
Front Brake Hose for KY500X-E5 BRHSF152 x 1
|
||
| 15 | ![]() |
Front Brake Hose for KY500X-E5 BRHSF153 x 1
|
||
| 16 | ![]() |
Rear Brake Hose for KY500X-E5 BRHSF154 x 1
|
||
| 17 | ![]() |
Rear Brake Hose for KY500X-E5 BRHSF155 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Colove | KY500X | |
| Lexmoto | Pioneer 500X Euro 5 [KY500X-E5] | View parts diagram |
