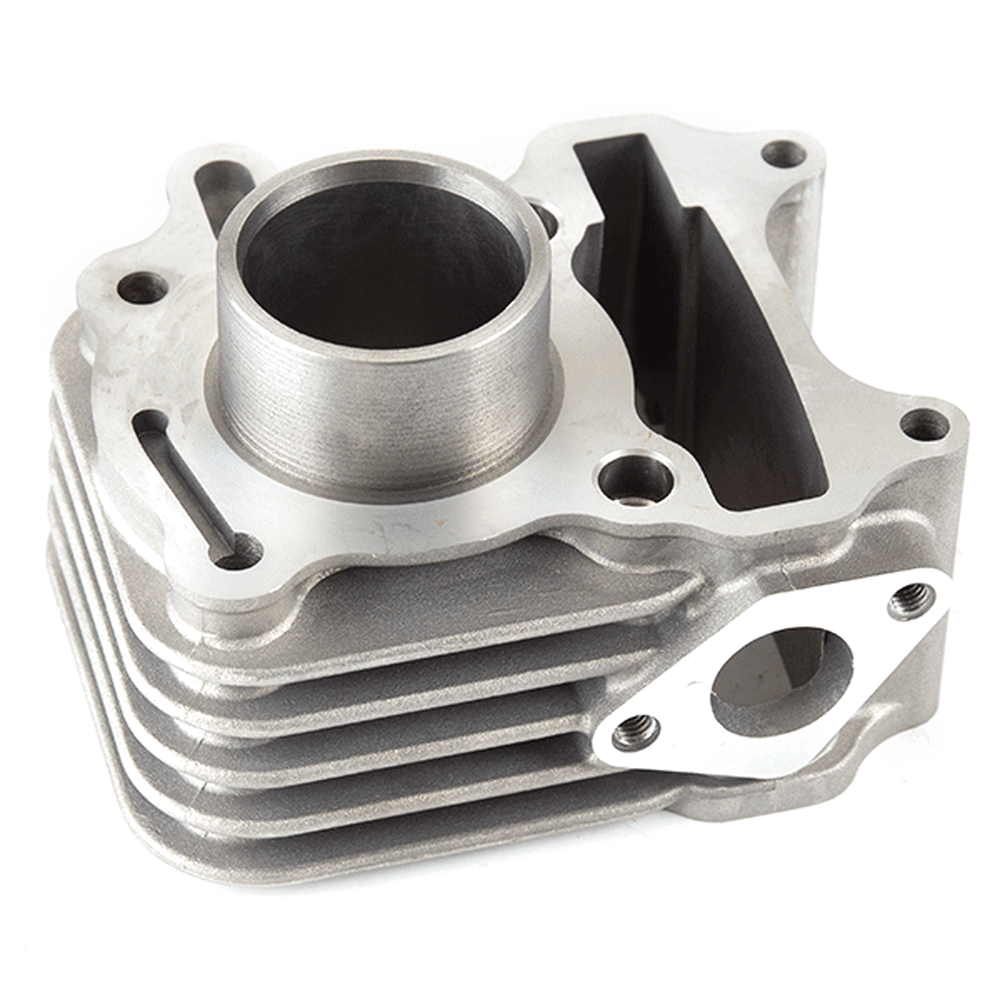

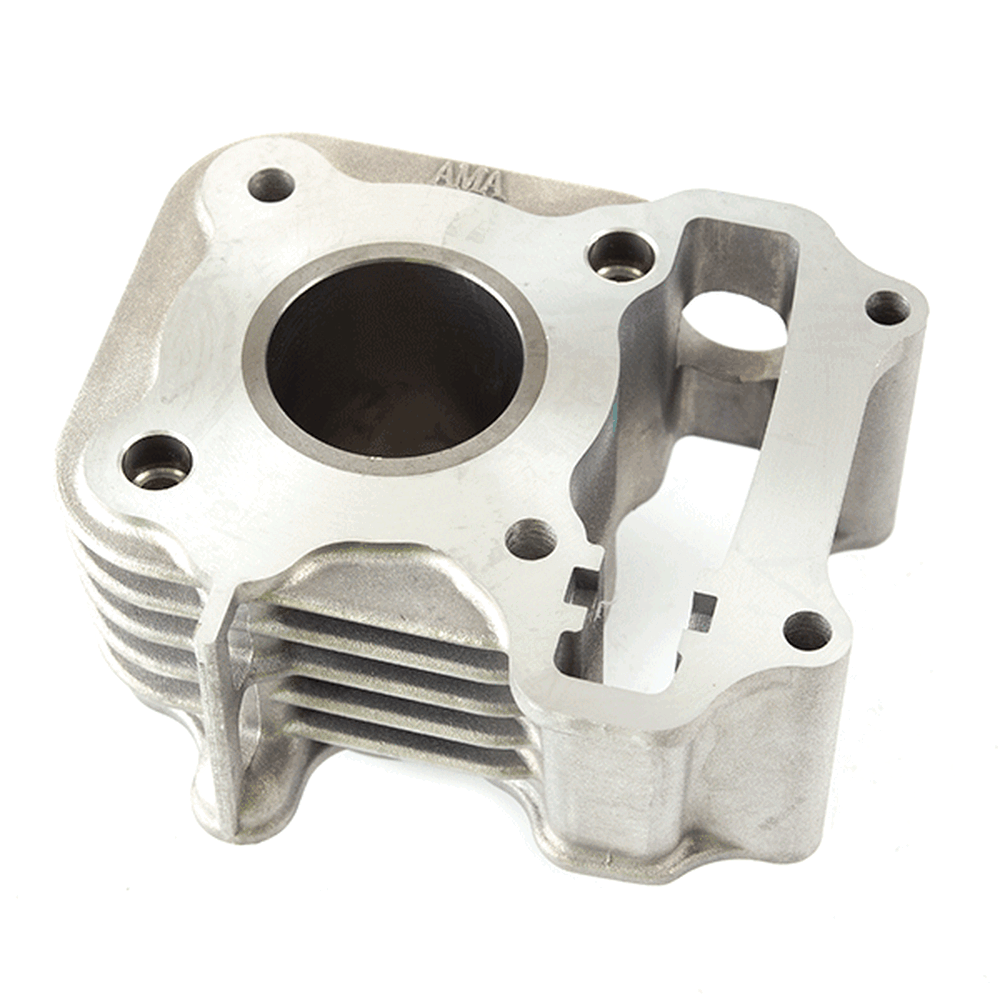

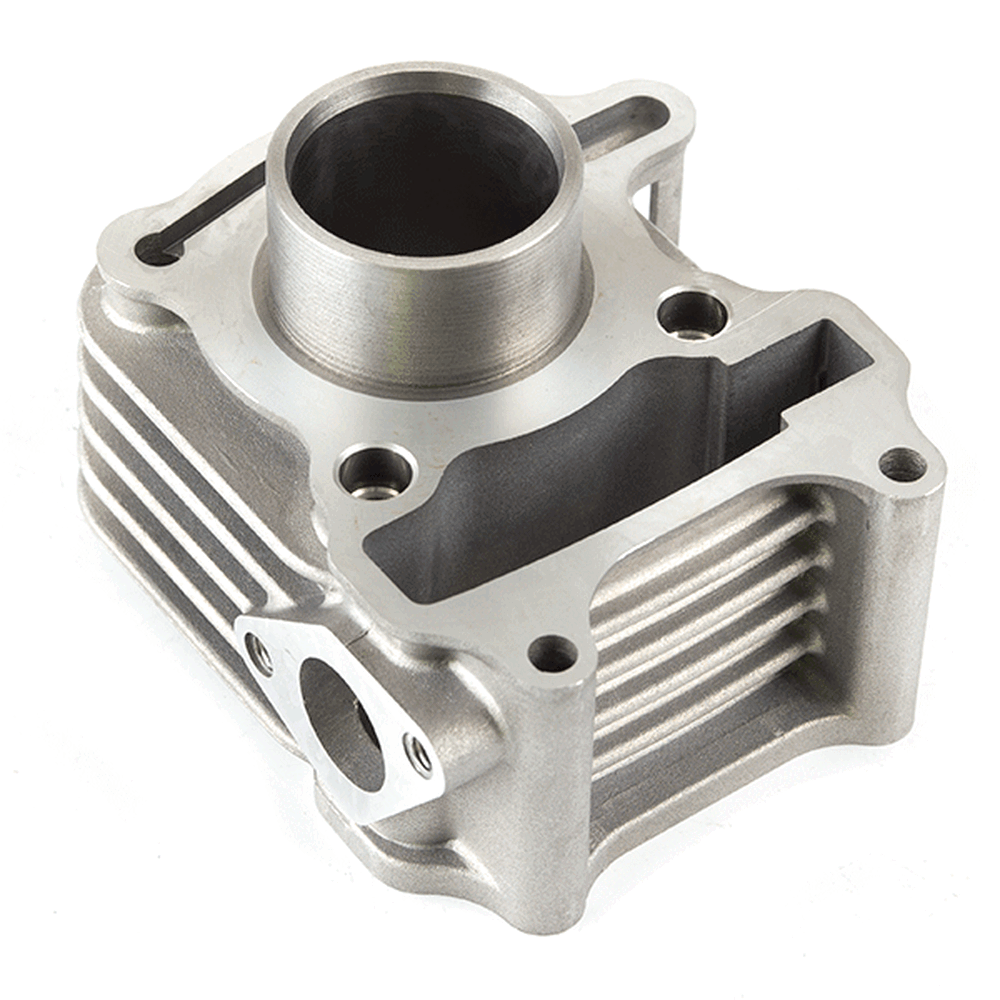

CYL058"Another great Cylinder"
The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Cylinder CYL058 x 1
|
||
| 2 | ![]() |
Base Gasket GSKB033 x 1
|
||
| 3 | ![]() |
Cam Chain Tensioner Gasket GSKCT013 x 1
|
||
| 4 | ![]() |
Cam Chain Motorcycle Tensioner CMCT043 x 1
|
||
| 7 | ![]() |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 9 | ![]() |
Flanged Hex Bolt Camshaft Locking Bolt M6 x 16mm BLT075 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
| Diablo 50 [LJ50QT-9M] | View parts diagram | |
| Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| Nano 50 [LJ50QT-N] | View parts diagram | |
