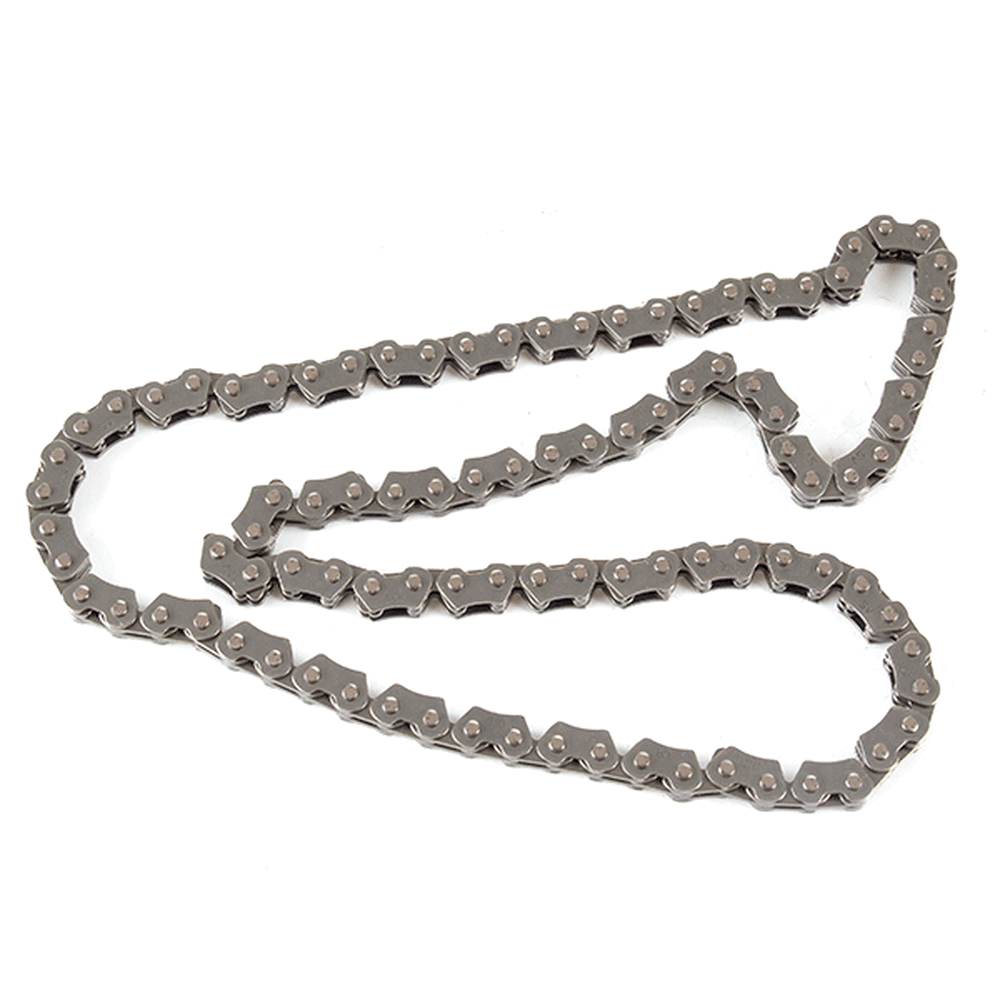

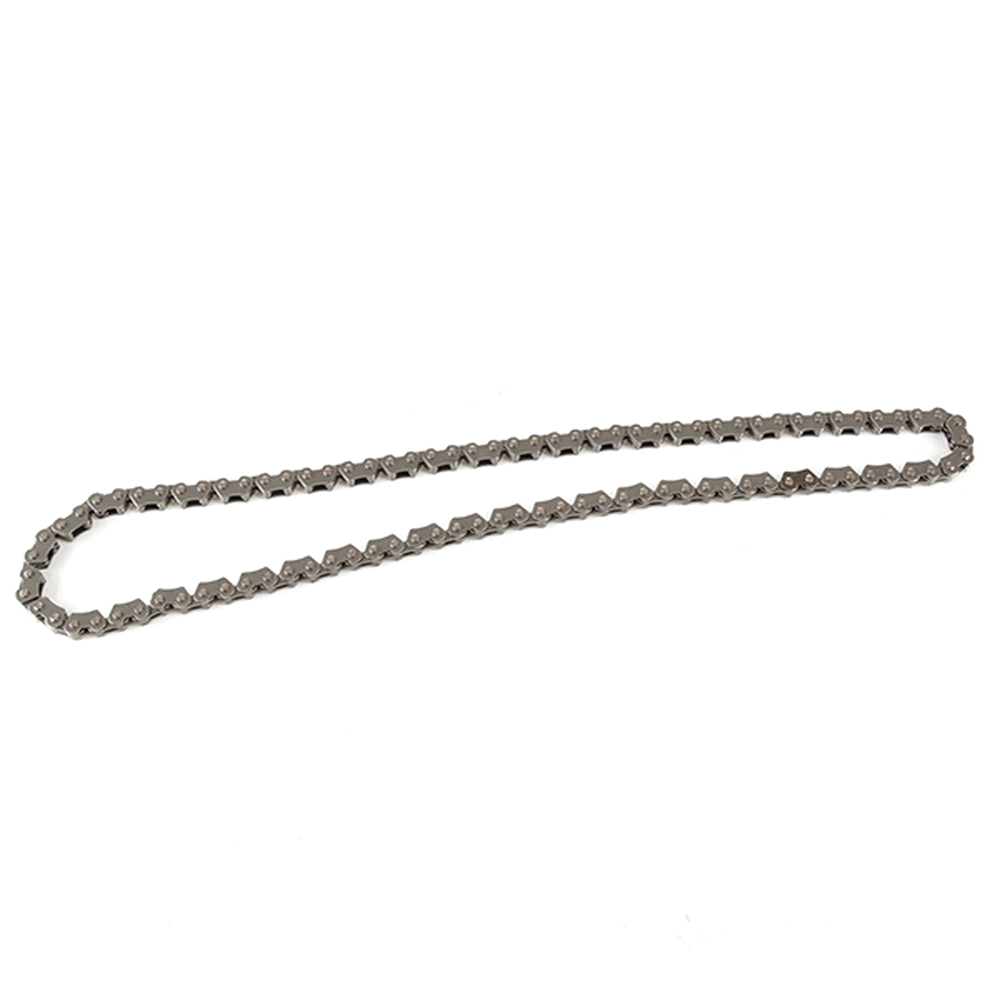

Timing Chain
CMCHN042
Description
"In the category of Camshafts, Chains, Guides/Tensioners, Cam Chains"
A timing chain synchronizes the rotation of the crankshaft and camshaft(s) ensuring proper timing and allows the engine's valves to open and close during each cylinder's firing. The chain is located inside of the engine and needs to be lubricated by the oil in the engine, making oil maintenance important as well.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 |  |
Inlet/Exhaust Valve Spring Seat VLVSS003 x 1
|
||
| 8 |  |
Rocker Arm Assembly RKASM012 x 1
|
||
| 9 |  |
Inlet/Exhaust Valve Collets ZY125 VLVC024 x 2
|
||
| 10 |  |
Inlet/Exhaust Valve Spring Retainer VLVSR027 x 1
|
||
| 11 |  |
Inlet/Exhaust Valve Spring VLVS045 x 1
|
||
| 12 |  |
Valve Stem Oil Seal VLVOS017 x 1
|
||
| 14 |  |
Exhaust Valve VLVEX033 x 1
|
||
| 15 |  |
Inlet Valve VLVIN036 x 1
|
||
| 16 |  |
Camshaft CMS031 x 1
|
||
| 19, 23 |  |
Cam Chain Guides CMCG018 x 1
|
||
| 20 |  |
Camshaft Sprocket CMSPK010 x 1
|
||
| 22 | |
Timing Chain CMCHN042 x 1
|
||
| 24 |  |
125cc Cam Chain Tensioner Gasket ZY125 GSKCT008 x 1
|
||
| 25 |  |
Cam Chain Tensioner for ZY125 CMCHN023 x 1
|
||
| 27 |  |
Cam Chain Guide Plate CMCG021 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LXR 125 [SY125-10] | View parts diagram |
| LXR SE 125 [SY125-10-SE] | View parts diagram | |
| Mitt | MITT 125 GP [MITT125GP] | |
| UM | Commando Classic 125 [UM125-CL] | View parts diagram |
| Renegade Commando 125 [UM125-CO] | View parts diagram | |
| Renegade Sport S 125 [UM125-RS] | View parts diagram | |
| Vegas 125 [UM125-VG] | View parts diagram | |
