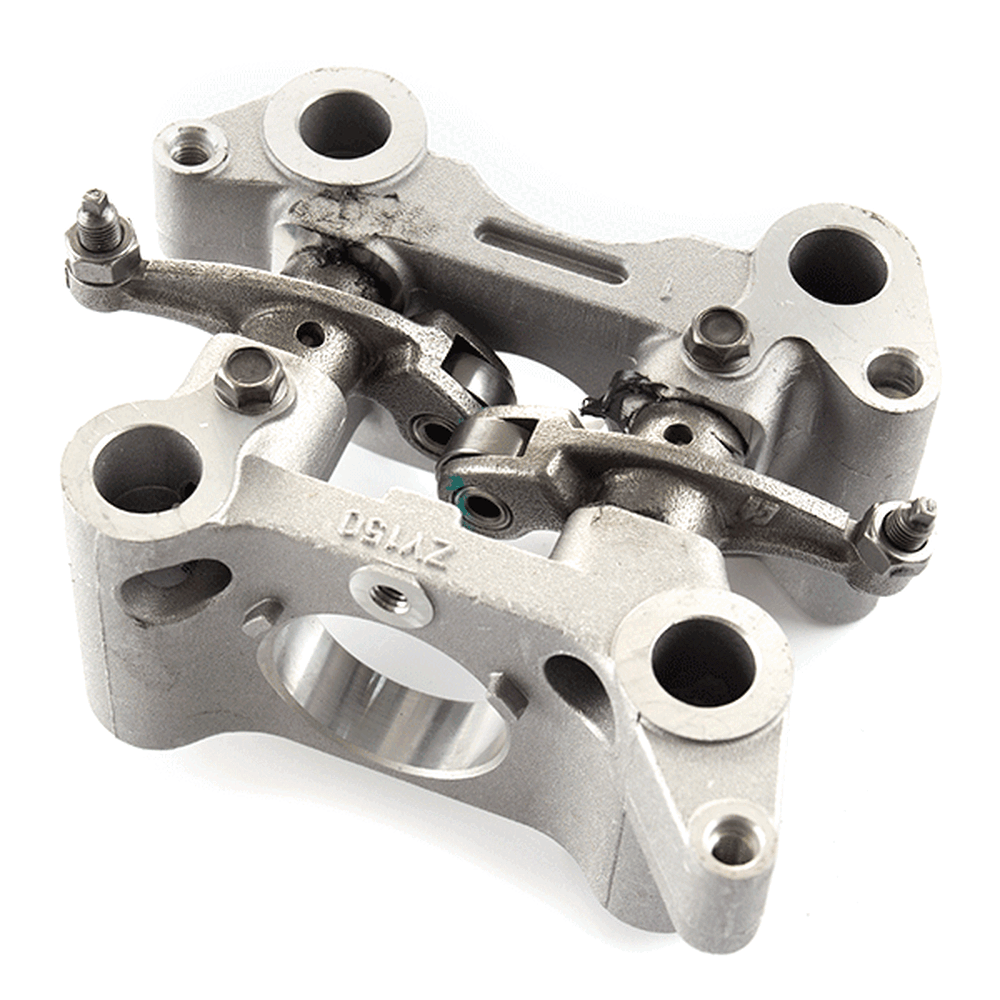

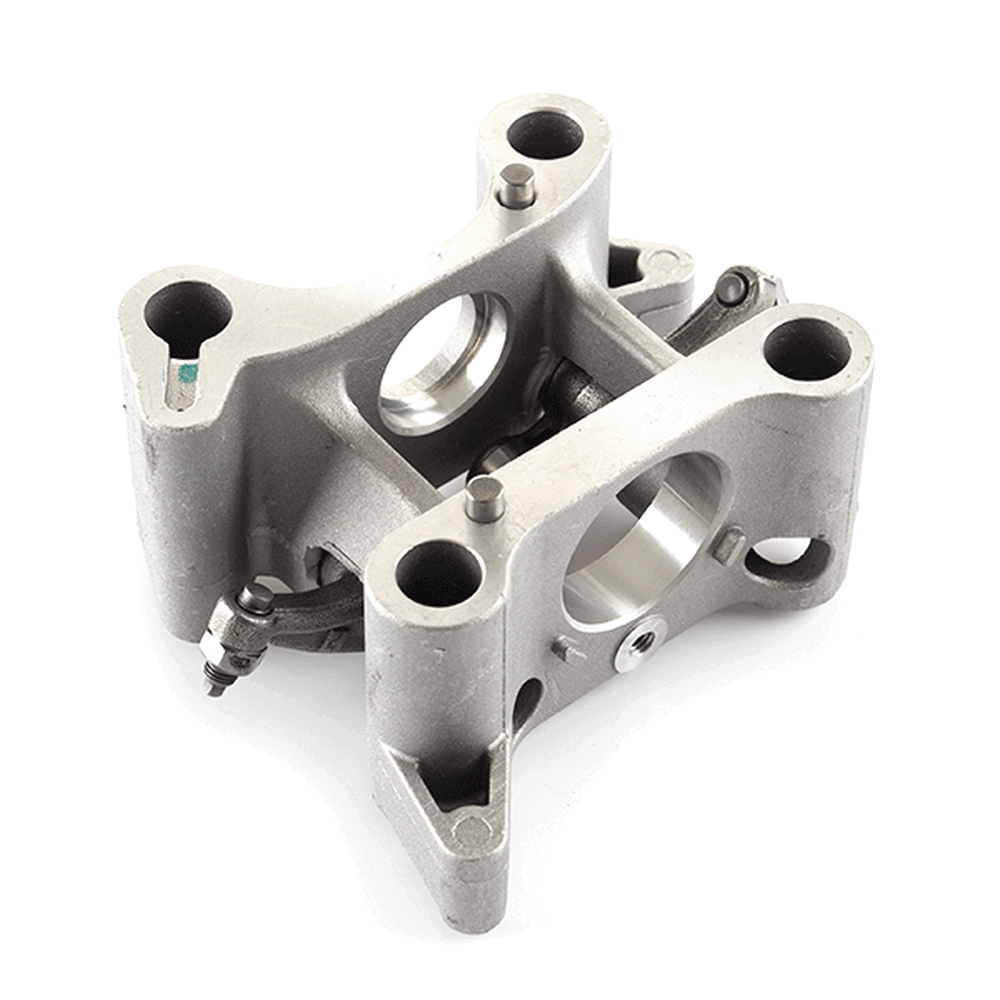

RKASM012"In the category of Valves and Rockers, Rocker Arms"
The rocker arm assembly is a crucial component of a motorcycle’s valvetrain, responsible for transferring motion from the camshaft to the engine's valves. It consists of rocker arms mounted on a shaft or supports, which pivot to push the valves open and closed as the camshaft rotates. The assembly ensures precise timing and movement of the valves, which is essential for proper engine operation and performance.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 2 | ![]() |
Inlet/Exhaust Valve Spring Seat VLVSS003 x 1
|
||
| 8 | ![]() |
Rocker Arm Assembly RKASM012 x 1
|
||
| 9 | ![]() |
Inlet/Exhaust Valve Collets ZY125 VLVC024 x 2
|
||
| 10 | ![]() |
Inlet/Exhaust Valve Spring Retainer VLVSR027 x 1
|
||
| 11 | ![]() |
Inlet/Exhaust Valve Spring VLVS045 x 1
|
||
| 12 | ![]() |
Valve Stem Oil Seal VLVOS017 x 1
|
||
| 14 | ![]() |
Exhaust Valve VLVEX033 x 1
|
||
| 15 | ![]() |
Inlet Valve VLVIN036 x 1
|
||
| 16 | ![]() |
Camshaft CMS031 x 1
|
||
| 19, 23 | ![]() |
Cam Chain Guides CMCG018 x 1
|
||
| 20 | ![]() |
Camshaft Sprocket CMSPK010 x 1
|
||
| 22 | ![]() |
Timing Chain CMCHN042 x 1
|
||
| 24 | ![]() |
125cc Cam Chain Tensioner Gasket ZY125 GSKCT008 x 1
|
||
| 25 | ![]() |
Cam Chain Tensioner for ZY125 CMCHN023 x 1
|
||
| 27 | ![]() |
Cam Chain Guide Plate CMCG021 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LXR 125 [SY125-10] | View parts diagram |
| LXR SE 125 [SY125-10-SE] | View parts diagram | |
| Mitt | MITT 125 GP [MITT125GP] | |
| UM | Commando Classic 125 [UM125-CL] | View parts diagram |
| Renegade Commando 125 [UM125-CO] | View parts diagram | |
| Renegade Sport S 125 [UM125-RS] | View parts diagram | |
| Vegas 125 [UM125-VG] | View parts diagram | |
