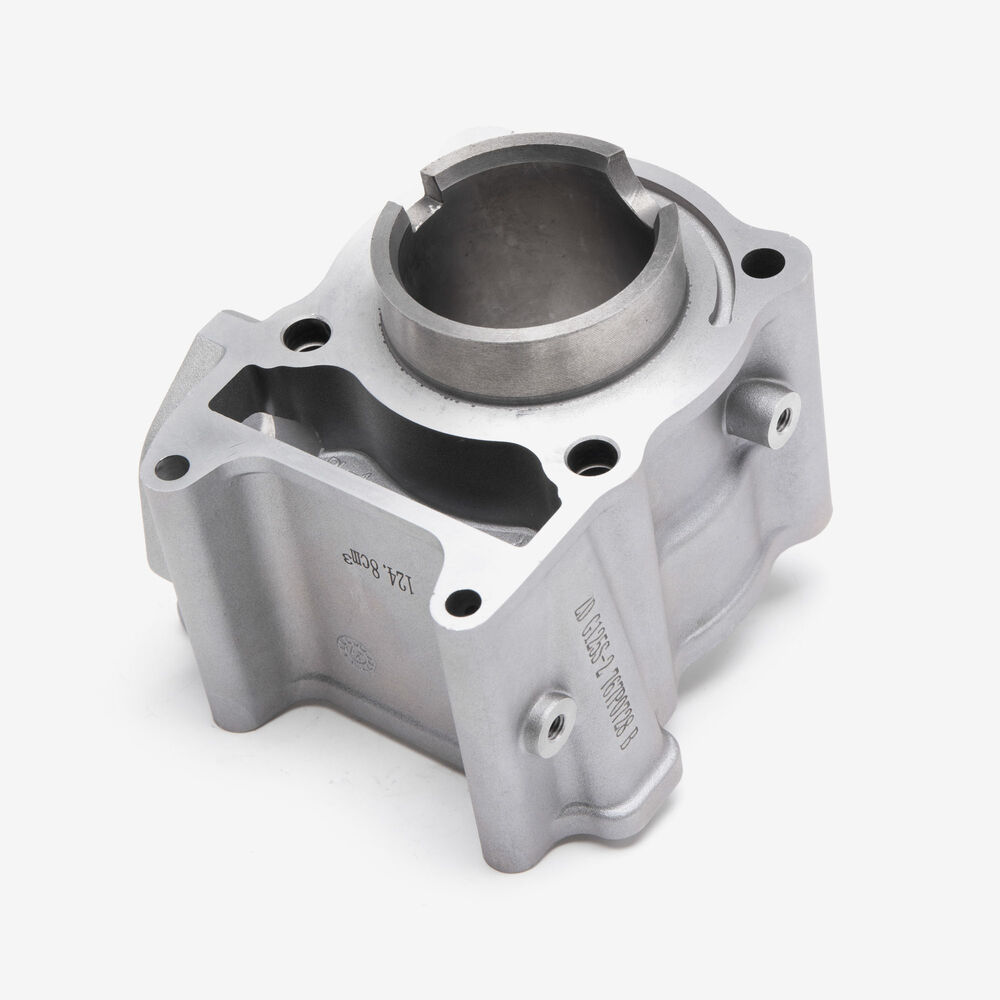

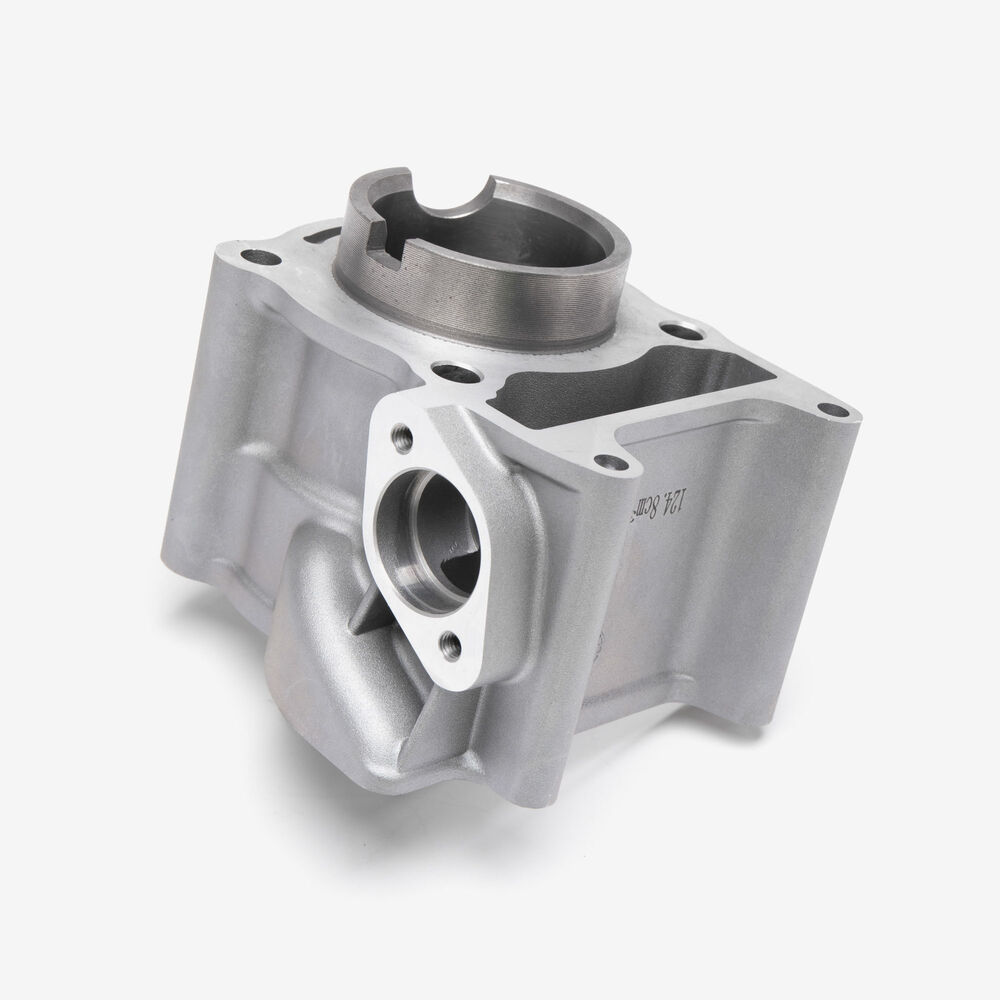

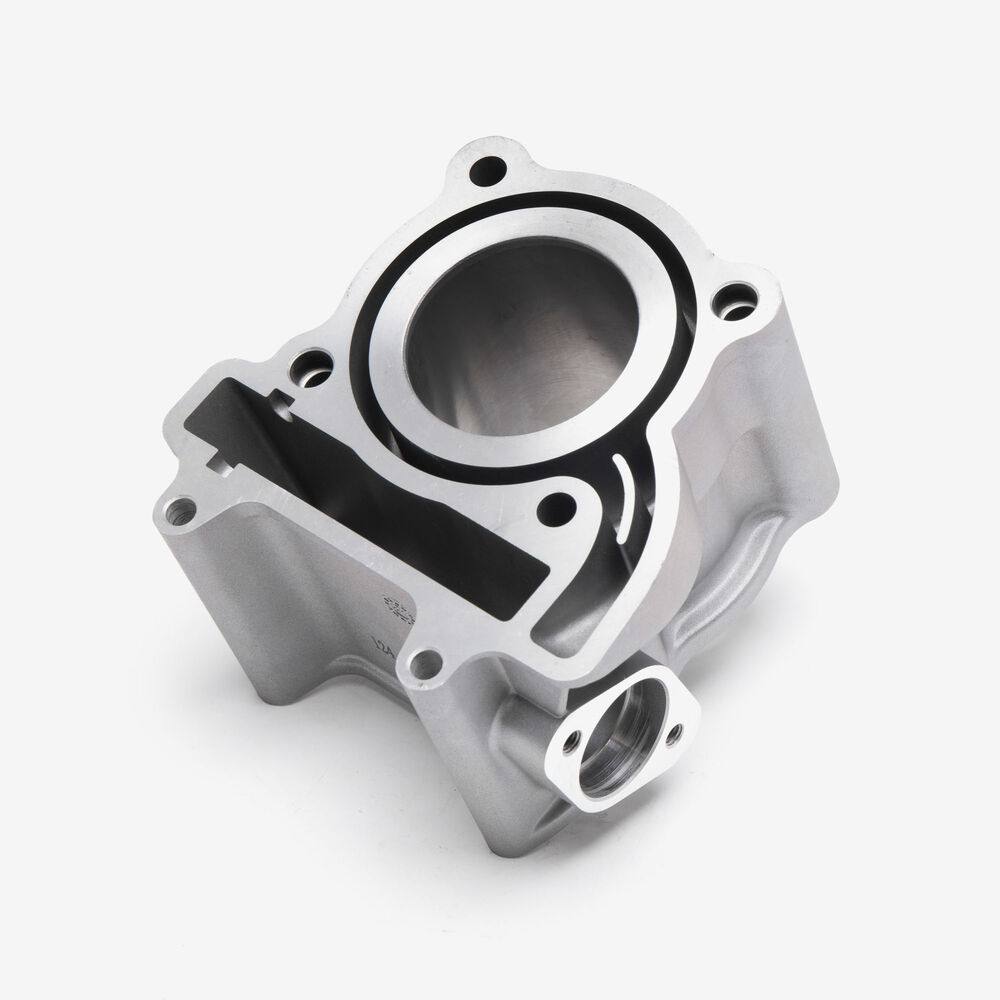

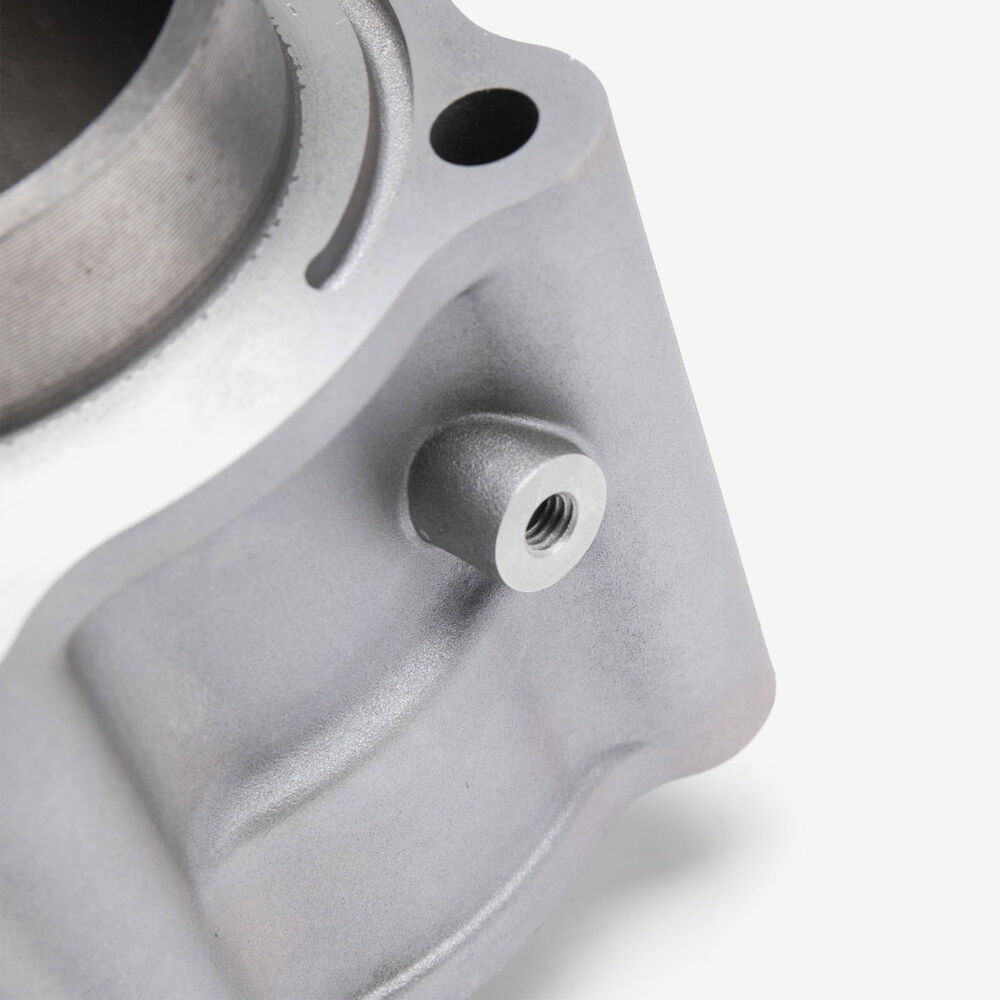

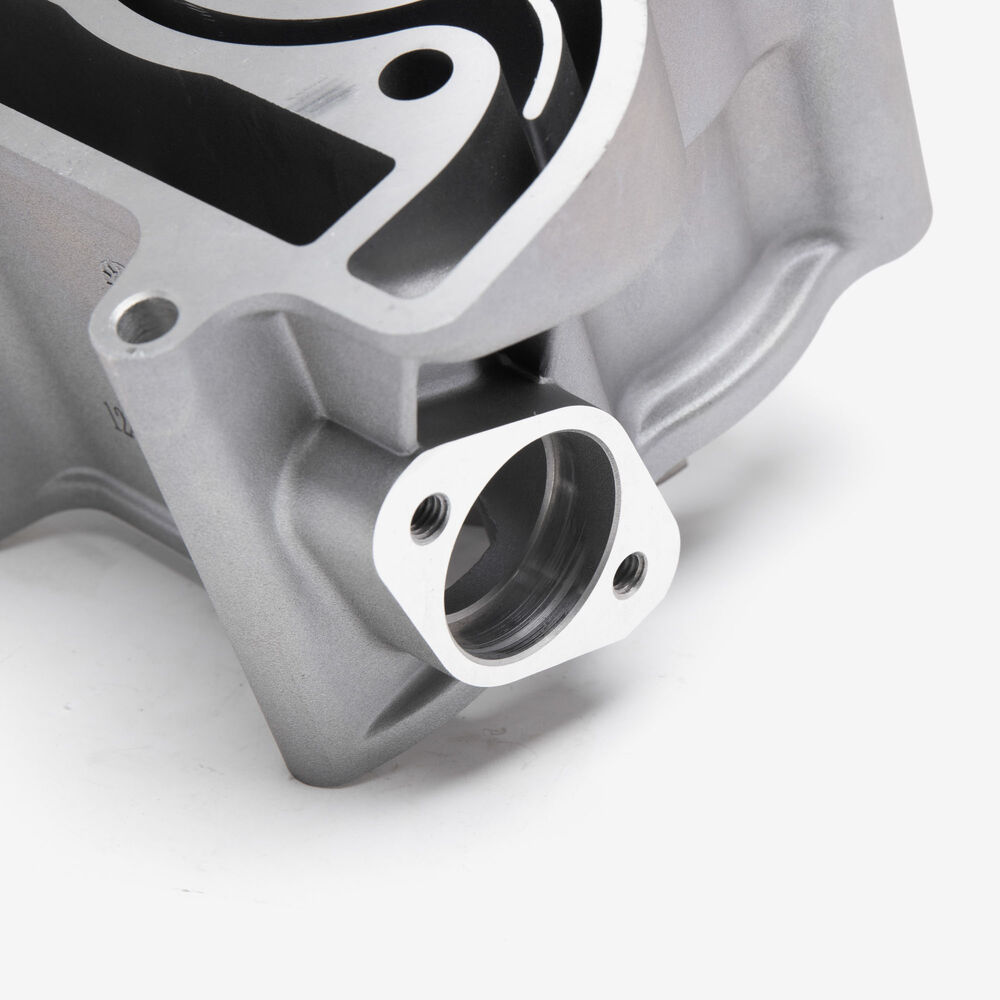

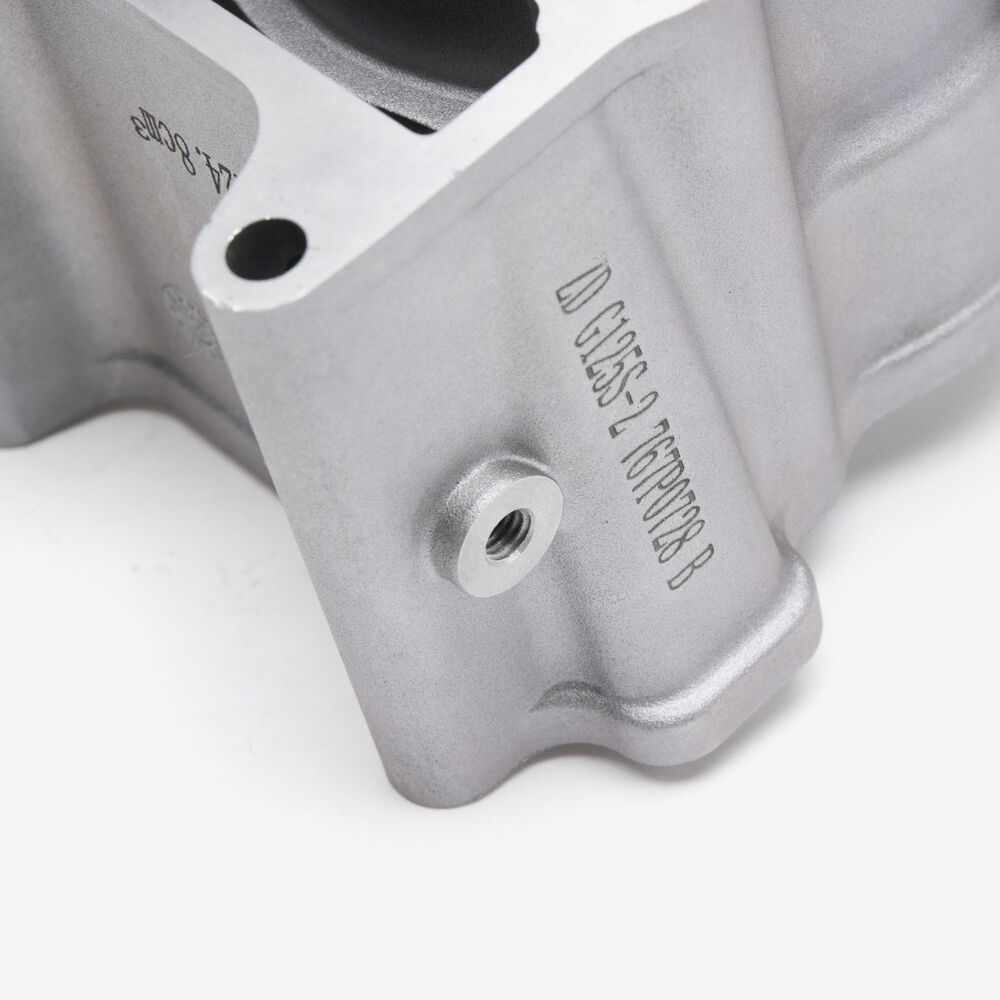

Cylinder
CYL076
Description
"In the category of Cylinders and Cylinder heads, Cylinders"
The cylinder is the space through which the piston travels, propelled to the energy generated from the combustion of the air/fuel mixture in the combustion chamber. In an air-cooled engine, the walls of the cylinders are exposed to the airflow, to provide the primary method of cooling to the engine.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | |
Cylinder CYL076 x 1
|
||
| 2 |  |
Cylinder Head Gasket GSKH065 x 1
|
||
| 3 |  |
Cam Chain Tensioner CMCT054 x 1
|
||
| 4 |  |
Cam Chain Tensioner Gasket GSKCT023 x 1
|
||
| 5 |  |
Cylinder Head Bolt BLTCH021 x 1
|
||
| 6, 7 |  |
Cam Chain Guides CMCG056 x 1
|
||
| 8 |  |
Timing / Cam Chain CMCHN062 x 1
|
||
| 9 |  |
Dowel 10 x 14 x 8.5mm DWL045 x 1
|
||
| 10 |  |
Clip CLP001044 x 1
|
||
| 11 |  |
Cylinder Head Bolts M6 x 105mm BLTCH022 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | XDV 125 Euro 5 [LJ125T-18A-E5] | View parts diagram |
| Longjia | LJ125T-18A | |
