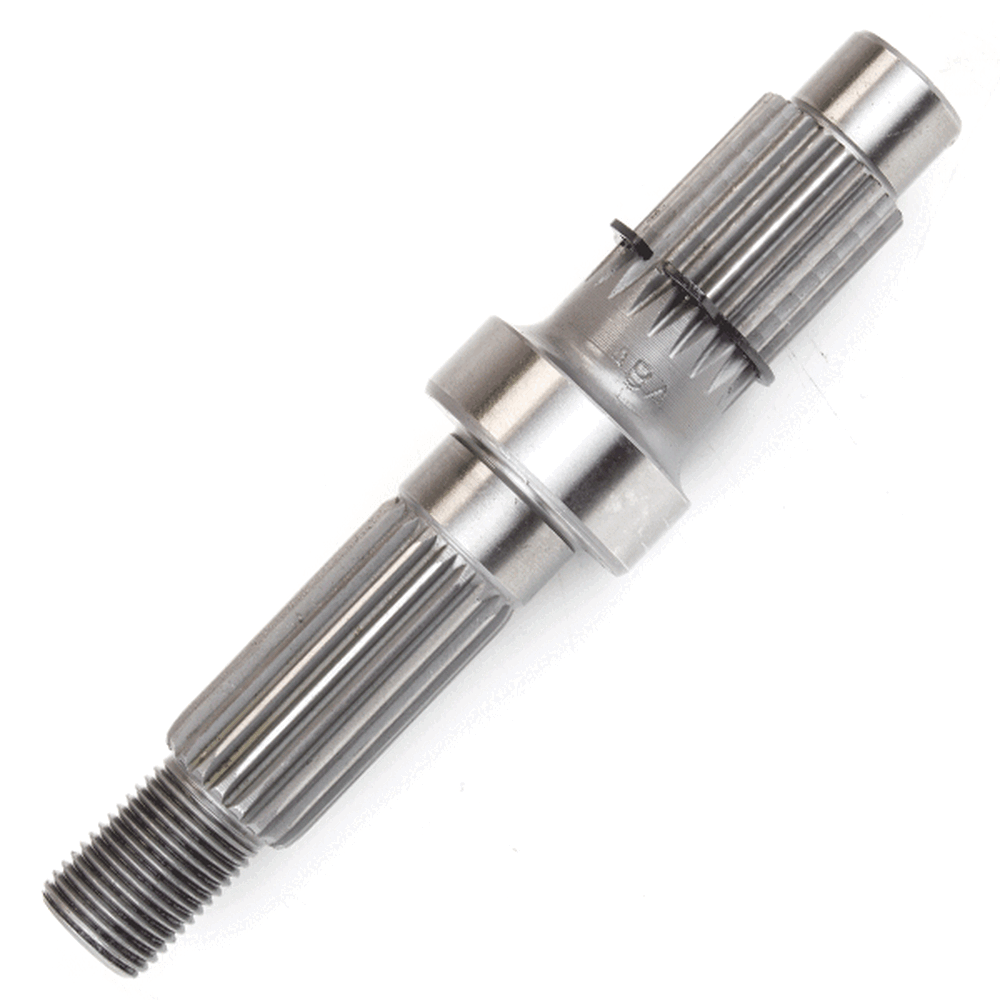

Gearbox Output Shaft LJ1P52QMI
OTSH014
Description
"In the category of Transmissions and Gearing, Gearboxes"
The output shaft on a motorcycle is a crucial component of the transmission system that transmits power from the engine to the rear wheel. It converts the rotational motion of the engine into the drive force necessary for propulsion. Typically made from hardened steel or alloy, the output shaft is designed to withstand high torque and stress while ensuring smooth and efficient power transfer.
Suitable for 125cc 4 Stroke Scooters with an engine number beginning with 1P52QMI
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1, 7 |  |
125cc Gearbox Casing GRBC006 x 1
|
||
| 2 |  |
Cam Cover Breather Outlet PPB024 x 1
|
||
| 3 |  |
Single Wheel Bearing 6204 2RS 20 x 47 x 14mm BRG110 x 1
|
||
| 4 |  |
Oil Seal 32 x 47 x 7mm OLSL077 x 1
|
||
| 5 |  |
Open Bearing 6301 37 x 12 x 12mm BRG153 x 1
|
||
| 6 |  |
Bearing 6301 TPI BRG221 x 1
|
||
| 8 |  |
125cc Scooter Gearbox Gasket LJ1P52QMI GSKGB004 x 1
|
||
| 9 |  |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 10 |  |
125cc Scooter Gearbox Input Shaft LJ1P52QMI INSH010 x 1
|
||
| 11 |  |
Gearbox Reduction Gear LJ1P52QMI GRRD037 x 1
|
||
| 12 |  |
Final Drive Gear LJ1P52QMI GRFD007 x 1
|
||
| 13 | |
Gearbox Output Shaft LJ1P52QMI OTSH014 x 1
|
||
| 14 |  |
Hex Bolt with Shank M8 x 55mm BLT108 x 1
|
||
| 15 |  |
Bolt M8 x 65mm BLT395 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Aura 125 [LJ125T-18] | View parts diagram |
| Diablo 125 E55 [LJ125T-9M-E55] | View parts diagram | |
| Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | |
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
| Diablo 125 [LJ125T-8M] | View parts diagram | |
| Riviera 125 [LJ125T-V] | View parts diagram | |
| SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | |
| Urban 125 [LJ125T-16] | View parts diagram | |
| Longjia | LJ125T-9M | |
| LJ125T-X | ||
| Romet | City 125 [CITY125] | |
