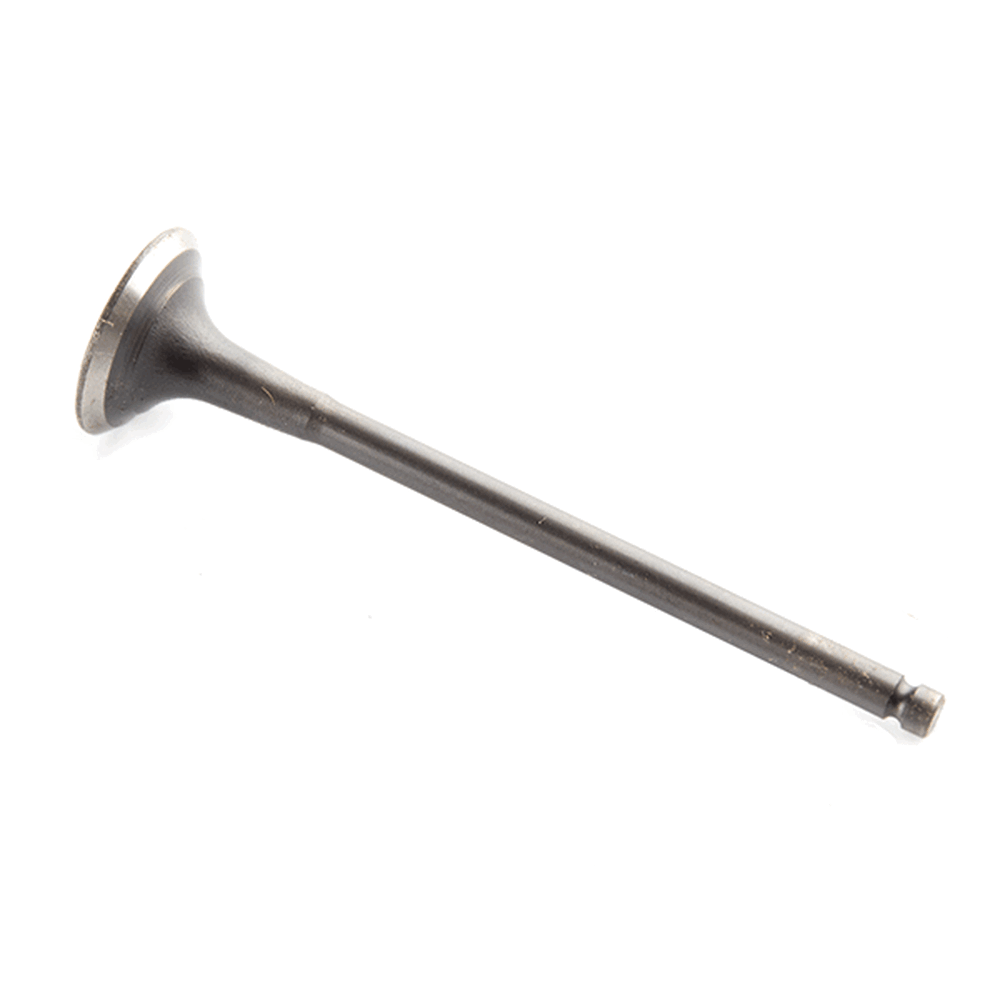

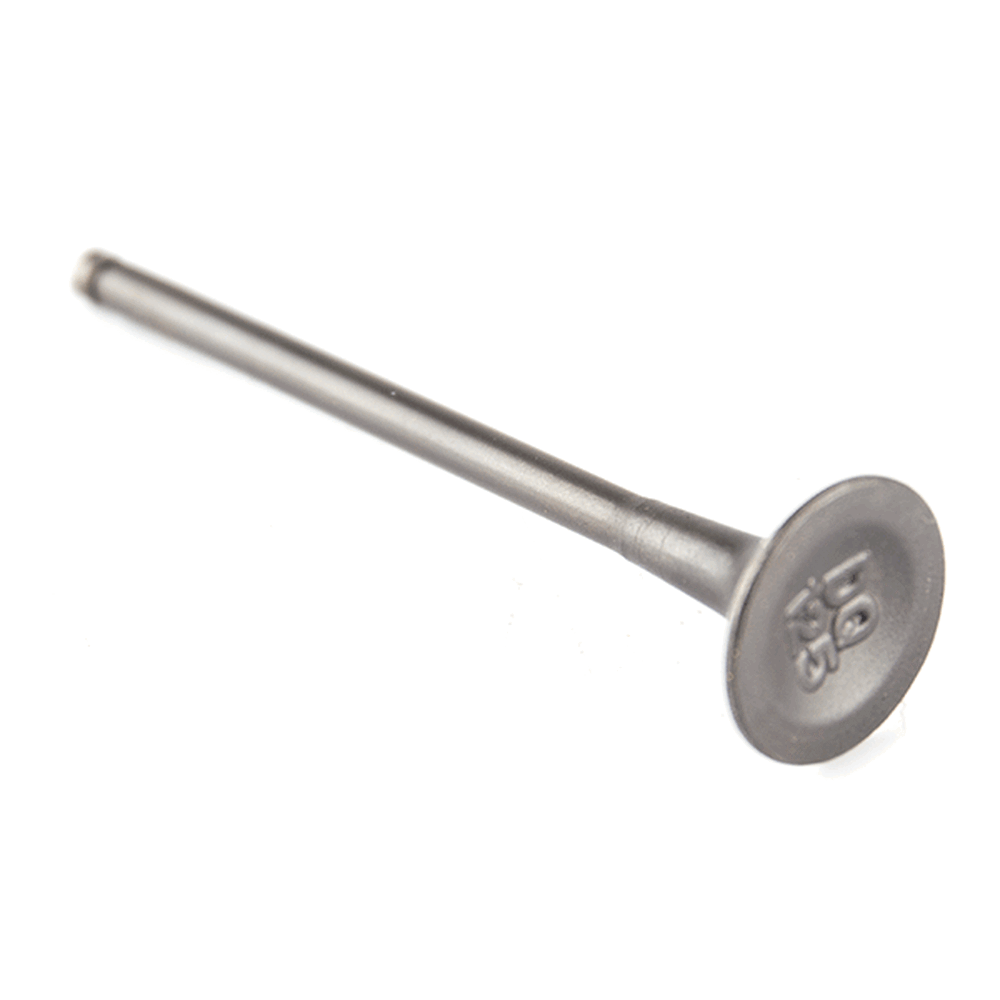

Exhaust Valve
VLVEX039
Description
"In the category of Valves and Rockers, Inlet/Exhuast Valves"
The exhaust valve is a key component in a motorcycle's engine that controls the release of exhaust gases from the combustion chamber. It opens to allow spent gases to exit the engine and closes to seal the chamber during the intake and compression strokes. Made from high-temperature resistant materials, such as stainless steel or titanium, the exhaust valve must withstand extreme heat and pressure. Proper functioning of the exhaust valve is crucial for efficient engine operation, optimal performance, and emission control.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 |  |
Exhaust Camshaft CMS039 x 1
|
||
| 2 |  |
Inlet Camshaft CMS040 x 1
|
||
| 3 |  |
Camshaft Sprocket for ZS125-39-E5 CMSPK029 x 1
|
||
| 4 |  |

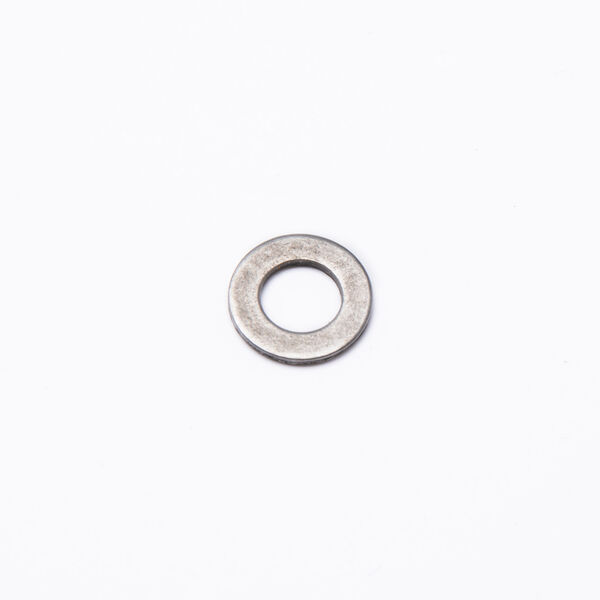

Camshaft Lock Washer 8.25 x 23 x 4mm CMLW005 x 1
|
||
| 5 |  |
Camshaft Sprocket Bolt M8 x 20mm CMFX011 x 1
|
||
| 6 |  |
Timing/Cam Chain 114L for ZS125-39-E5 CMCHN059 x 1
|
||
| 7 |  |
Flanged Hex Bolt M6 x 16mm BLT206 x 1
|
||
| 8 |  |

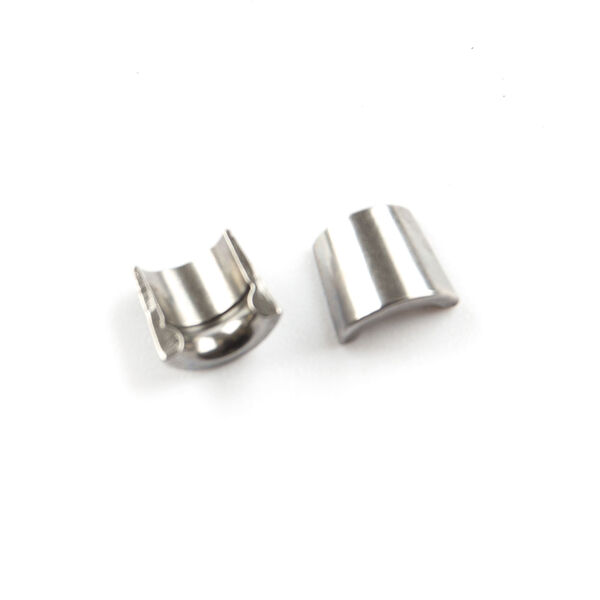

Valve Collets VLVC013 x 1
|
||
| 9 |  |

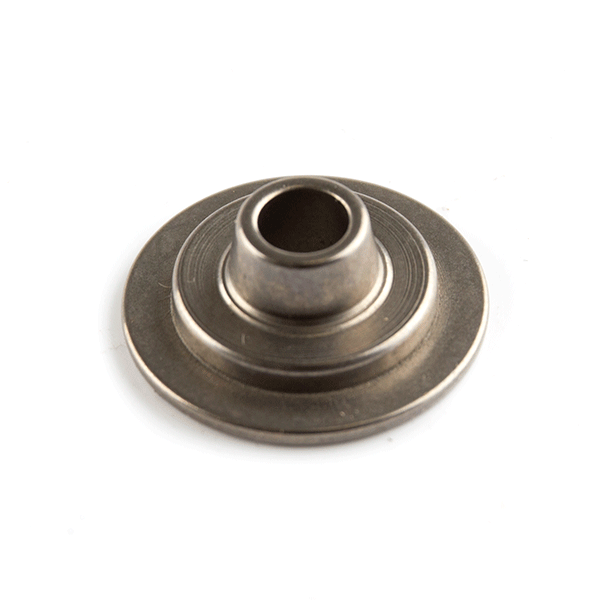

Inlet/Exhaust Valve Spring Retainer VLVSR023 x 1
|
||
| 10 |  |

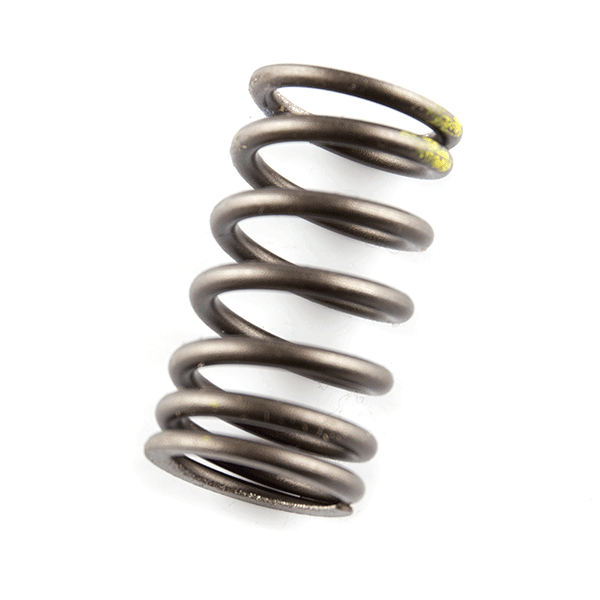

Valve Spring VLVS037 x 1
|
||
| 11 |  |
Valve Stem Oil Seal VLVOS022 x 1
|
||
| 12 |  |

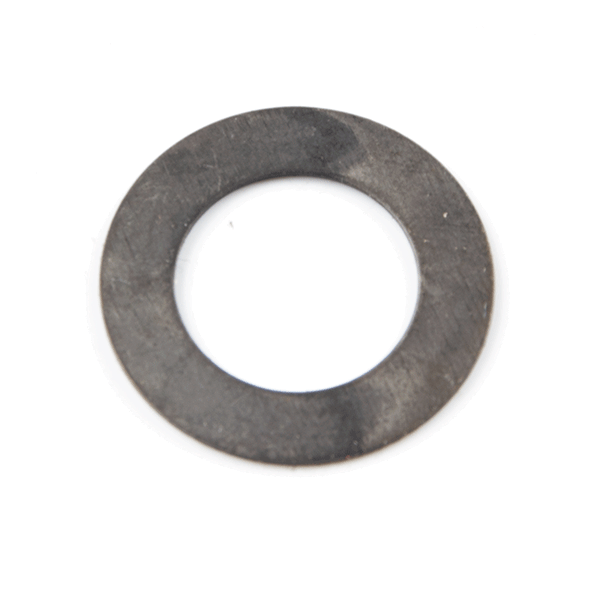

Exhaust Valve Spring Seat VLVSS021 x 1
|
||
| 13 | |
Exhaust Valve VLVEX039 x 1
|
||
| 14 |  |
Inlet Valve VLVIN056 x 1
|
||
| 15, 20 |  |
Cam Chain Guides CMCG035 x 1
|
||
| 16 |  |
Cam Chain Bracket BRCKT101 x 1
|
||
| 17, 19 |  |
Cam Chain Guide Bolt M6 x 25mm BLT375 x 1
|
||
| 18 |  |
Flanged Hex Bolt M6 x 16mm BLT188 x 1
|
||
| 21 |  |
Cam Chain Tensioner Gasket GSKCT024 x 1
|
||
| 22 |  |
Cam Chain Tensioner CMCT055 x 1
|
||
| 23 |  |

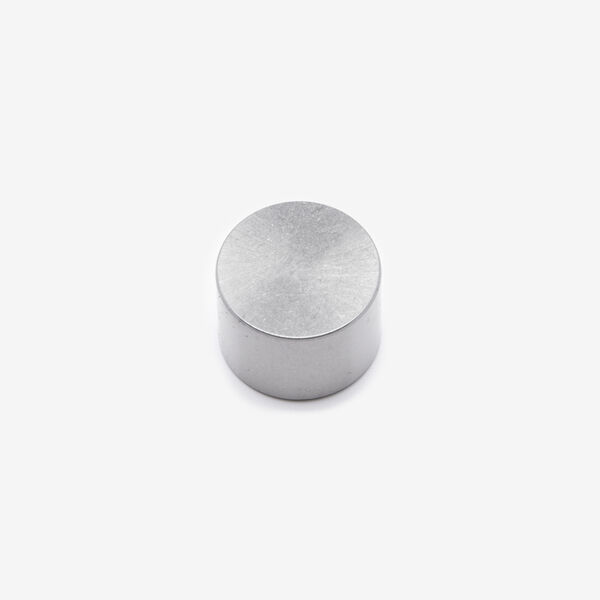

Shim Bucket 3.50mm Thickness for ZS125-39-E5 VLVC031 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | LS-Z E55 [ZS125-39-E55] | View parts diagram |
| LS-Z Euro 5 [ZS125-39-E5] | View parts diagram | |
| LXR 125 E55 [SY125-10-E55] | View parts diagram | |
| LXR 125 Euro 5 [SY125-10-E5] | View parts diagram | |
| LXR 125 SE E55 [SY125-10-SE-E55] | View parts diagram | |
| LXR SE 125 Euro 5 [SY125-10-SE-E5] | View parts diagram | |
| LXR SE 125 Euro 5 [SY125-10-SE-V2] | View parts diagram | |
| LXS 125 E55 [TR125-GP2-E55] | View parts diagram | |
| LXS 125 Euro 5 [TR125-GP2-E5] | View parts diagram | |
| R66S E55 [SR125-2-E55] | View parts diagram | |
| RSS 125 Euro 5 [TR125-3-E5] | View parts diagram | |
| RSS 125 Scrambler Euro 5 [TR125-3-S-E5] | View parts diagram | |
| RX1 125 E55 [ZS125-86C-E55] | View parts diagram | |
| Mitt | MITT 125 GP 2 [MITT125GP2] | |
| Mutt | Stravaig 125cc [STRAVAIG] | |
| Sinnis | Terrain T125 [ZS125-86(T125)] | |
| Taro | TR125-3 | |
| Zongshen | ZS125-39 | |
