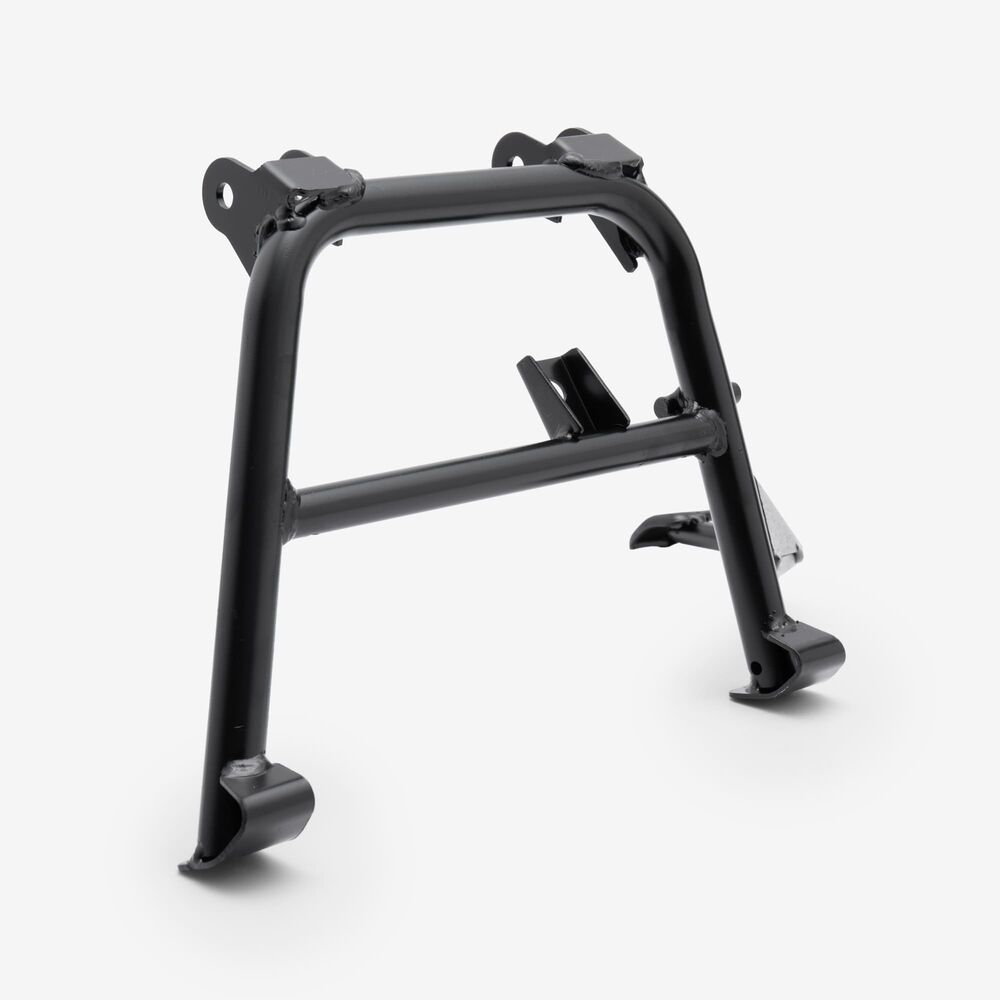

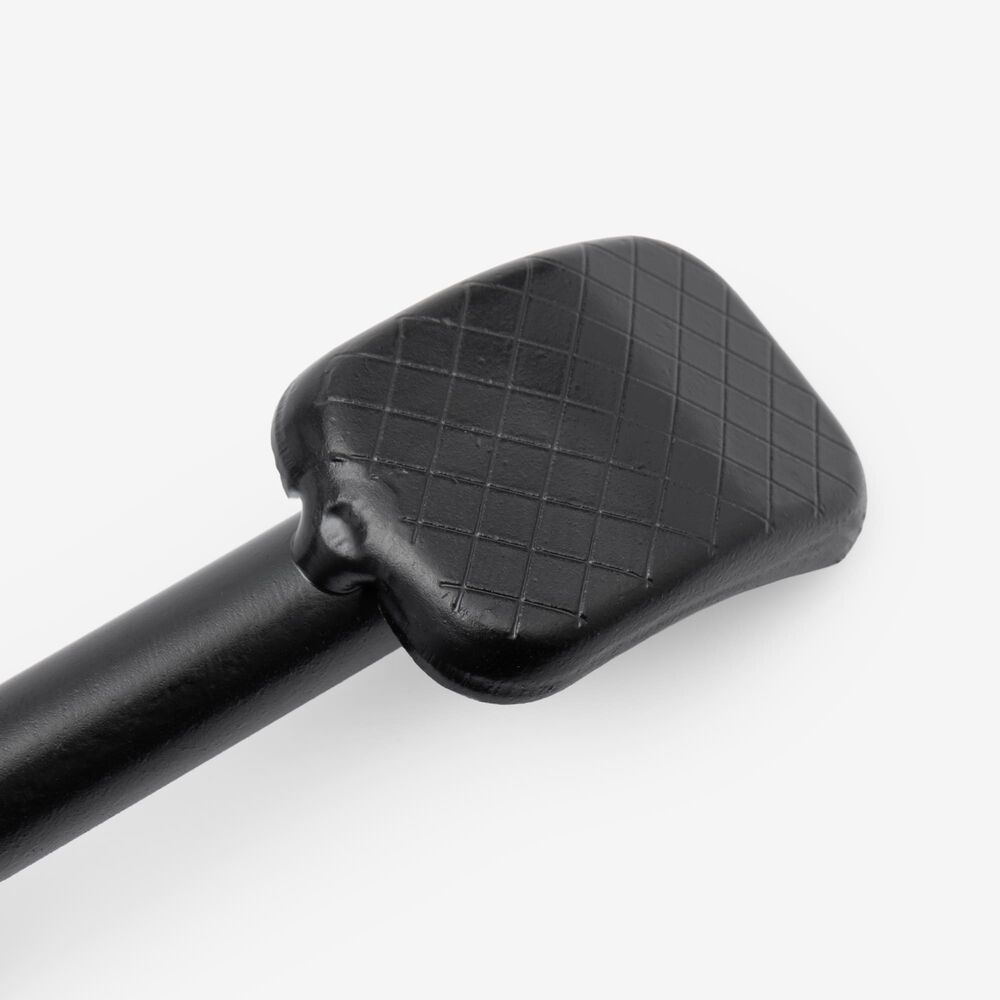

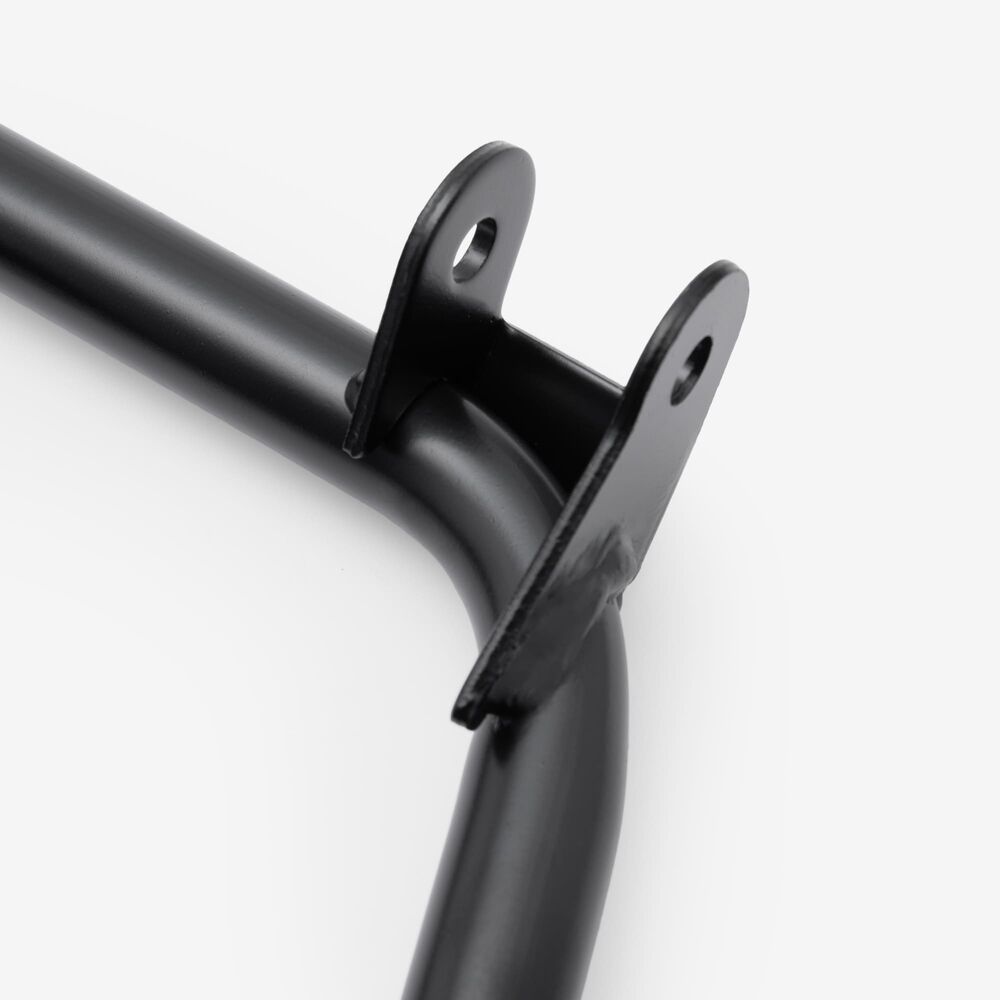

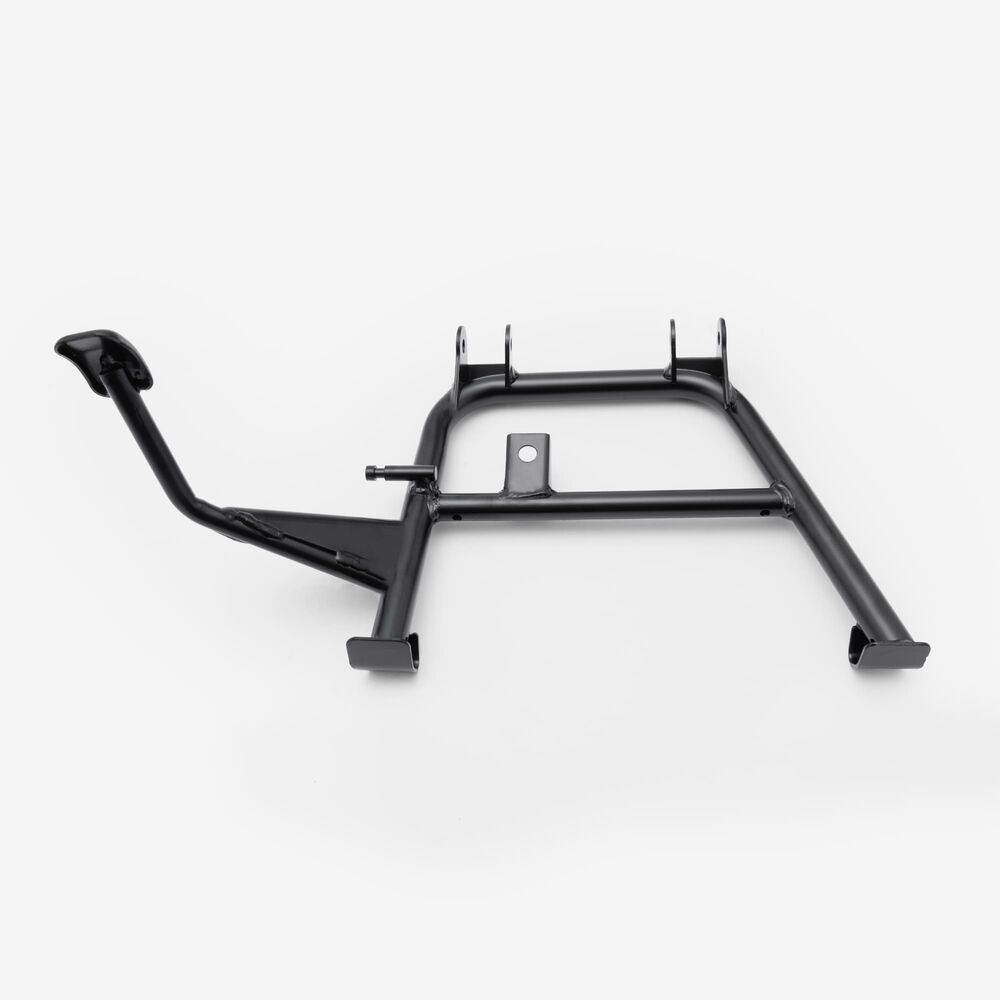

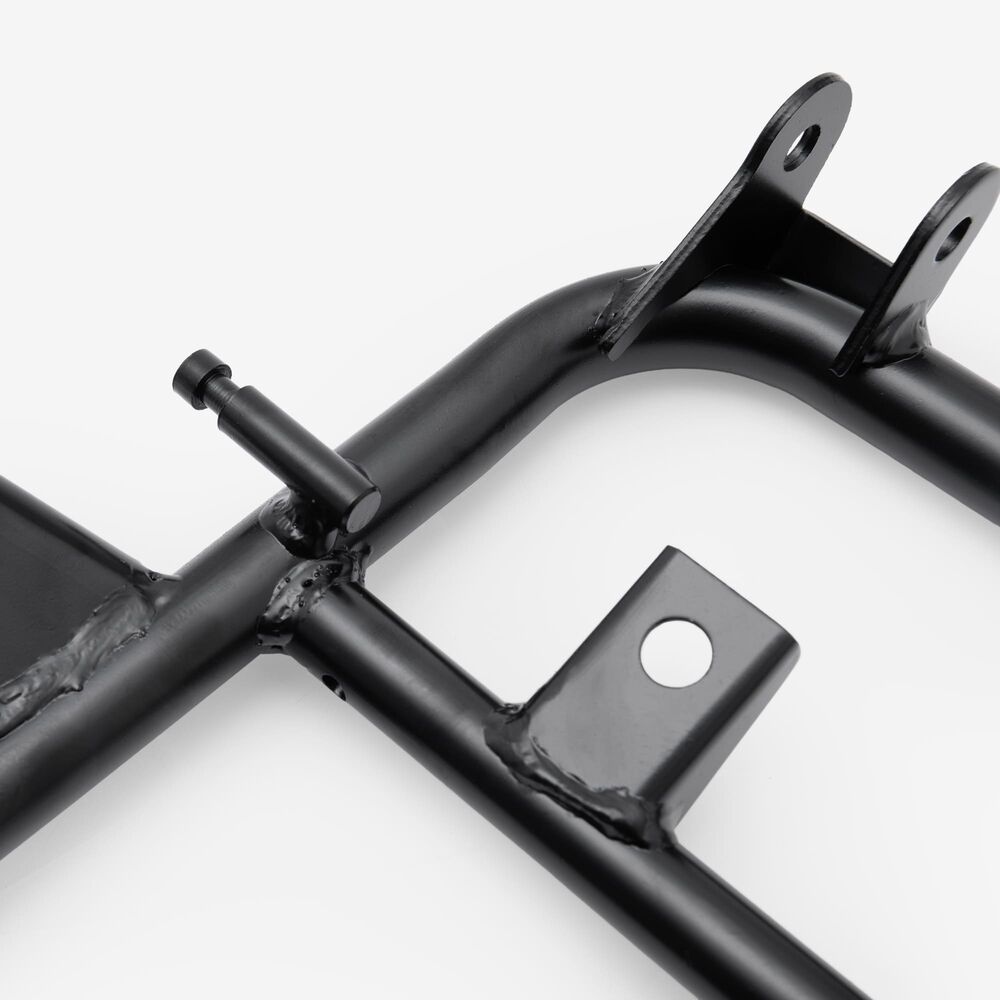

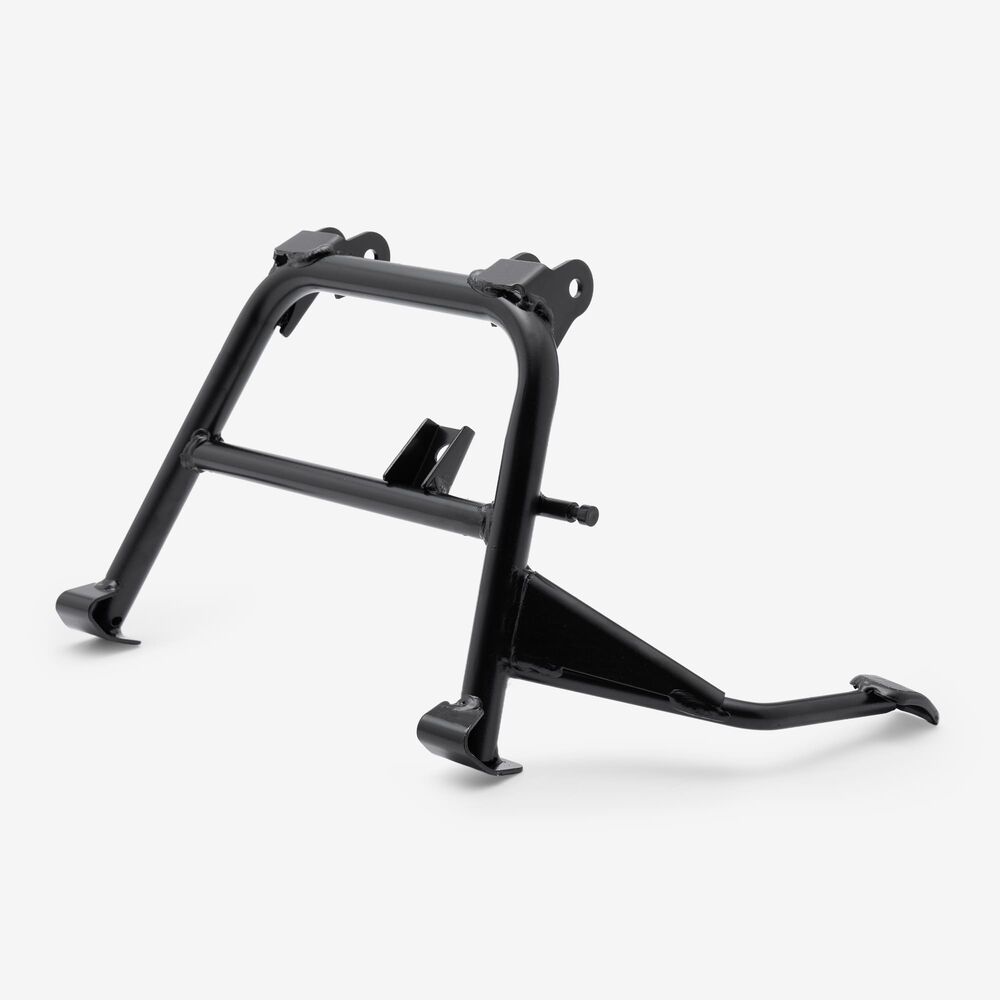

STDC140"In the category of Side, Centre and Stand Fixings, Centre Stands"
The center stand is a support mechanism on a motorcycle that allows the bike to be parked upright and stable when not in use. Mounted centrally beneath the motorcycle, it consists of two legs that extend downward and a pivot point that enables the stand to be deployed or retracted. When the stand is engaged, it provides a secure base, making it easier to perform maintenance tasks, such as tire changes or chain adjustments, and ensures the motorcycle remains upright and balanced while parked. The center stand is typically operated by the rider’s foot and is often equipped with a spring to assist in its retraction.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Lock Set LCKST199 x 1
|
||
| 4 | ![]() |
Seat Lock Cable STCB079 x 1
|
||
| 5 | ![]() |
Seat Latch STL027 x 1
|
||
| 8 | ![]() |
Bracket BRCKT064 x 1
|
||
| 9 | ![]() |
Rear Mudguard Bracket for LJ50QT-N MGB016 x 1
|
||
| 10 | ![]() |
Engine Bracket (Side) for LJ125T-18, LJ125T-18-E5 ENGB086 x 1
|
||
| 11 | ![]() |
Engine Subframe SBFRE024 x 1
|
||
| 15 | ![]() |
Centre Stand Pin STDPC020 x 1
|
||
| 16 | ![]() |
Nut M8 NUT237 x 1
|
||
| 18 | ![]() |
Centre Stand Cushion T5 STDCC017 x 1
|
||
| 19 | ![]() |
Centre Stand STDC140 x 1
|
||
| 21 | ![]() |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 22 | ![]() |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 23 | ![]() |
Side Stand for LJ50QT-N STDS135 x 1
|
||
| 24 | ![]() |
Side Stand Spring SPNG120 x 1
|
||
| 25 | ![]() |
Centre Stand Spring SPNG031 x 1
|
||
| 26 | ![]() |
Bolt M12 x 265 x 1.25mm BLT936 x 1
|
||
| 31 | ![]() |
Engine Bracket ENGB138 x 1
|
||
| 32 | ![]() |
Engine Mounting Bolt M12 x 220mm BLT744 x 1
|
||
| 36 | ![]() |
Bolt M10 x 220 x 1.25mm BLT937 x 1
|
||
| 38 | ![]() |
Rubber Bush 56 x 41 x 16mm BSH217 x 1
|
||
| 39 | ![]() |
Flange Bolt M10 x 25 x 20mm BLT945 x 1
|
||
| 40 | ![]() |
Spring Washer WSH0112 x 1
|
||
| 41 | ![]() |
Washer 20 x 10 x 2mm WSH0113 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 E55 [LJ50QT-9M-E55] | View parts diagram |
| L5 [LJ50QT-7E-E55] | View parts diagram | |
