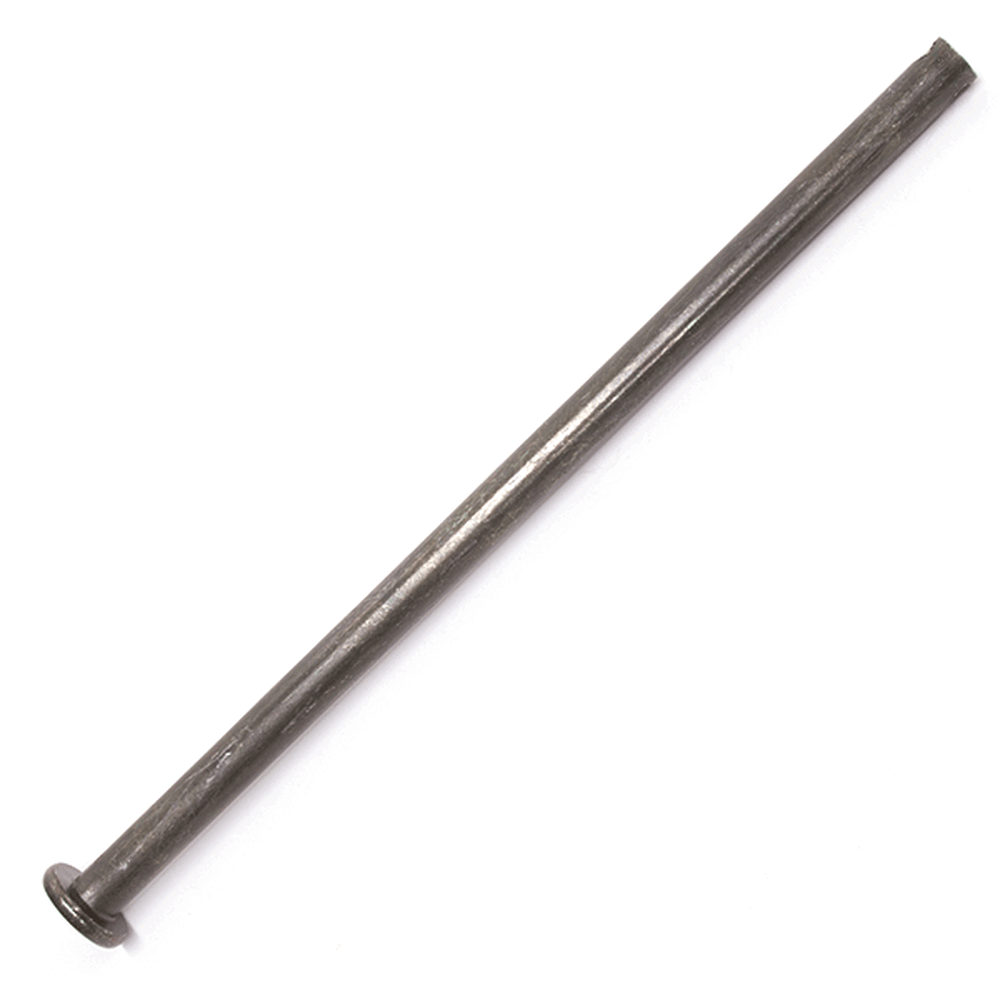

STDPC020"Another great Other Stand Fixing"
The center stand pin is a component used to secure and support the center stand, which allows a motorcycle to be parked upright and stable when not in use. Positioned at the pivot point of the center stand, the pin acts as the axle around which the stand rotates. It is essential for the proper functioning of the center stand, ensuring it locks into place when deployed and providing a stable base for maintenance tasks, such as tire changes or chain adjustments. The pin is typically made of durable metal to withstand the mechanical stresses involved.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 3 | ![]() |
Lock Set LCKST199 x 1
|
||
| 4 | ![]() |
Seat Lock Cable STCB079 x 1
|
||
| 5 | ![]() |
Seat Latch STL027 x 1
|
||
| 8 | ![]() |
Bracket BRCKT064 x 1
|
||
| 9 | ![]() |
Rear Mudguard Bracket for LJ50QT-N MGB016 x 1
|
||
| 10 | ![]() |
Engine Bracket (Side) for LJ125T-18, LJ125T-18-E5 ENGB086 x 1
|
||
| 11 | ![]() |
Engine Subframe SBFRE024 x 1
|
||
| 15 | ![]() |
Centre Stand Pin STDPC020 x 1
|
||
| 16 | ![]() |
Nut M8 NUT237 x 1
|
||
| 18 | ![]() |
Centre Stand Cushion T5 STDCC017 x 1
|
||
| 19 | ![]() |
Centre Stand STDC140 x 1
|
||
| 21 | ![]() |
Side Stand Switch (Male block connector) SWSTD005 x 1
|
||
| 22 | ![]() |
Bolt M8 x 28 mm BLTSTD016 x 1
|
||
| 23 | ![]() |
Side Stand for LJ50QT-N STDS135 x 1
|
||
| 24 | ![]() |
Side Stand Spring SPNG120 x 1
|
||
| 25 | ![]() |
Centre Stand Spring SPNG031 x 1
|
||
| 26 | ![]() |
Bolt M12 x 265 x 1.25mm BLT936 x 1
|
||
| 31 | ![]() |
Engine Bracket ENGB138 x 1
|
||
| 32 | ![]() |
Engine Mounting Bolt M12 x 220mm BLT744 x 1
|
||
| 36 | ![]() |
Bolt M10 x 220 x 1.25mm BLT937 x 1
|
||
| 38 | ![]() |
Rubber Bush 56 x 41 x 16mm BSH217 x 1
|
||
| 39 | ![]() |
Flange Bolt M10 x 25 x 20mm BLT945 x 1
|
||
| 40 | ![]() |
Spring Washer WSH0112 x 1
|
||
| 41 | ![]() |
Washer 20 x 10 x 2mm WSH0113 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Direct Bikes | 50cc Scorpion E3 [DB50QT-32A] | |
| 50cc Viper E3 [DB50QT-32] | ||
| Lexmoto | Diablo 50 E55 [LJ50QT-9M-E55] | View parts diagram |
| Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram | |
| Diablo 50 [LJ50QT-9M] | View parts diagram | |
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
| Echo 50 E4 [LJ50QT-5L] | View parts diagram | |
| Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
| Echo 50 Euro 5 [LJ50QT-9L-E5] | View parts diagram | |
| Echo 50 [LJ50QT-3L] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| L5 [LJ50QT-7E-E55] | View parts diagram | |
| Nano 50 [LJ50QT-N] | View parts diagram | |
| Valencia 50 [ZN50QT-K] | View parts diagram | |
| Longjia | LJ50QT-9L | |
| LJ125T-9M | ||
| Pulse | Phantom 50 [ZN50QT-32A] | |
