STDIM003"In the category of Plugs, Bolts and Fixings, Inlet Manifold Studs"
Inlet manifold studs are threaded fasteners used to attach the inlet manifold to the engine's cylinder head or engine block. These studs provide a secure connection between the manifold, which channels air and fuel into the engine, and the engine's mounting surfaces. Typically made from high-strength materials such as steel or stainless steel, inlet manifold studs ensure a tight and stable fit to prevent air leaks and maintain proper engine performance. They are essential for maintaining the integrity of the air-fuel mixture entering the engine and ensuring reliable operation.

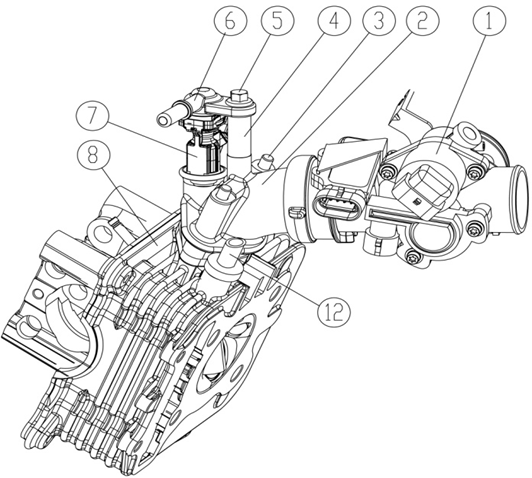

| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Throttle Body THRB005 x 1
|
||
| 2 | ![]() |
Inlet Manifold MNF056 x 1
|
||
| 3 | ![]() |

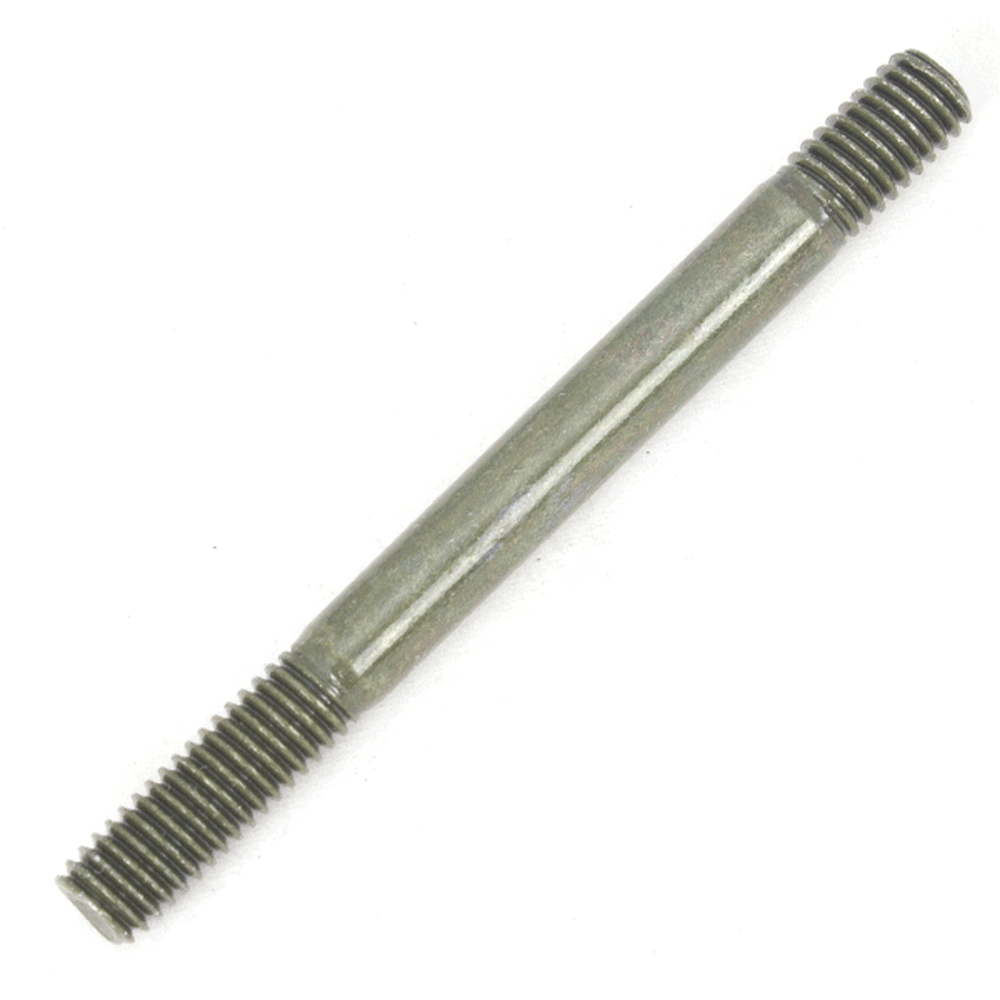

Inlet Manifold Stud M6 x 66mm STDIM003 x 1
|
||
| 4 | ![]() |
Fuel Injector Mounting Spacer 6.5x11.5x24mm SPCR014 x 1
|
||
| 5 | ![]() |
Flanged Hex Bolt with Shank Injector Bolt M6 x 40mm BLT032 x 1
|
||
| 6 | ![]() |
Fuel Injector Cover FLINJH018 x 1
|
||
| 7 | ![]() |
S50 Fuel Injector FLINJ038 x 1
|
||
| 8 | ![]() |
125cc Scooter Cylinder Head LJ1P52QMI CYLH045 x 1
|
||
| 12 | ![]() |
Engine Temperature Sensor (Delphi) for FT125T-27-E4 TMPSEN003 x 1
|
||
| 13 | ![]() |
Throttle Position Sensor TPSEN006 x 1
|
||
| 14 | ![]() |
Idle Air Control Valve (IACV) ACNTRL003 x 1
|
||
| 15 | ![]() |
Air/Intake Pressure Sensor APSEN006 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram |
| Riviera 125 [LJ125T-V] | View parts diagram | |
| Urban 125 [LJ125T-16] | View parts diagram | |
| Romet | City 125 [CITY125] | |
| UM | DSR Adventure 125 [UM125-ADV] | View parts diagram |
