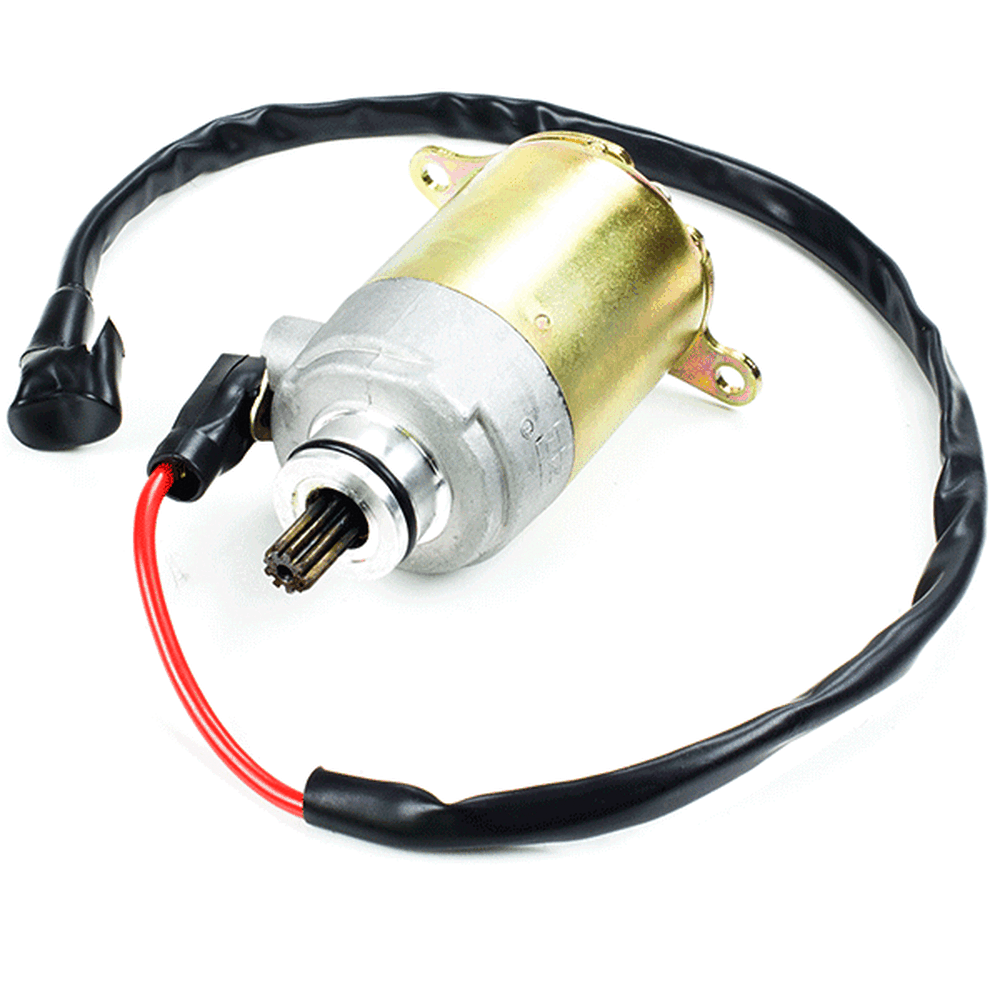

STM030"We have sold 13 of these in the last month"
The starter motor is responsible for turning the engine over during ignition and allowing everything else to happen. When you turn the ignition on, the starter motor engages and turns the engine over allowing it to suck in air. On the engine, a flywheel, with a ring gear attached around the edge, is fitted to the end of the crankshaft. On the starter, the pinion is designed to fit into the grooves of the ring gear. When you turn the ignition switch, the electromagnet inside the body engages & pushes out a rod to which the pinion is attached. The pinion meets the flywheel and the starter motor turns. This spins the engine over, sucking in air (as well as fuel). As the engine turns over, the starter motor disengages, and the electromagnet stops.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Engine Crankcase Mounting Bush SHKB009 x 1
|
||
| 2 | ![]() |
125cc Scooter Crankcase Gasket Centre LJ1P52QMI GSKCR023 x 1
|
||
| 4 | ![]() |
Bolt M6 x 22mm for LJ125T-8M-E4 BLT199 x 1
|
||
| 5 | ![]() |
Camchain Guide Bolt BLT878 x 1
|
||
| 6 | ![]() |
Scooter Starter Motor LJ1P52QMI STM030 x 1
|
||
| 8 | ![]() |
Washer 16 x 8 x 1mm WSH0116 x 1
|
||
| 9 | ![]() |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 10 | ![]() |
Camchain Guide Bolt Oil Seal 15.5 x 1.5mm OLSL139 x 1
|
||
| 11 | ![]() |
Sump Plug SMPP010 x 1
|
||
| 12 | ![]() |
Washer 20 x 12 x 2mm WSH145 x 1
|
||
| 13 | ![]() |
Engine Dowel 8 x 14mm DWL001 x 1
|
||
| 14 | ![]() |
Flanged Hex Bolt Camshaft Locking Bolt M6 x 16mm BLT075 x 1
|
||
| 15 | ![]() |
Spacer 16 x 20 x 25mm SPCR096 x 1
|
||
| 16 | ![]() |
Centre Stand Pin STDPC002 x 1
|
||
| 17 | ![]() |
Oil Seal 20 x 32 x 6mm OLSL036 x 1
|
||
| 18 | ![]() |
Bearing 6204 BRG170 x 1
|
||
| 19 | ![]() |
Open Bearing 6301 37 x 12 x 12mm BRG153 x 1
|
||
| 20 | ![]() |
Open Bearing 6203 P5 17 x 40 x 12mm BRG149 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| AJS | Exactly 125 [LJ125T-B(AJS)] | |
| Lexmoto | Aura 125 E55 [LJ125T-18D-E55] | View parts diagram |
| Aura 125 Euro 5 [LJ125T-18-E5] | View parts diagram | |
| Aura 125 [LJ125T-18] | View parts diagram | |
| Diablo 125 E55 [LJ125T-9M-E55] | View parts diagram | |
| Diablo 125 EFI [LJ125T-8M-E4] | View parts diagram | |
| Diablo 125 Euro 5 [LJ125T-9M-E5] | View parts diagram | |
| Diablo 125 [LJ125T-8M] | View parts diagram | |
| Riviera 125 [LJ125T-V] | View parts diagram | |
| SRT 125 Euro 5 [LJ125T-X-E5] | View parts diagram | |
| Urban 125 [LJ125T-16] | View parts diagram | |
| Longjia | Alien 125 [LJ125T-A] | |
| LJ125T-9M | ||
| LJ125T-B | ||
| LJ125T-X | ||
| Raptor 125 | ||
| Romet | City 125 [CITY125] | |
