SWNGS039"In the category of Swingarms, Bushes and Bearings, Swingarms"

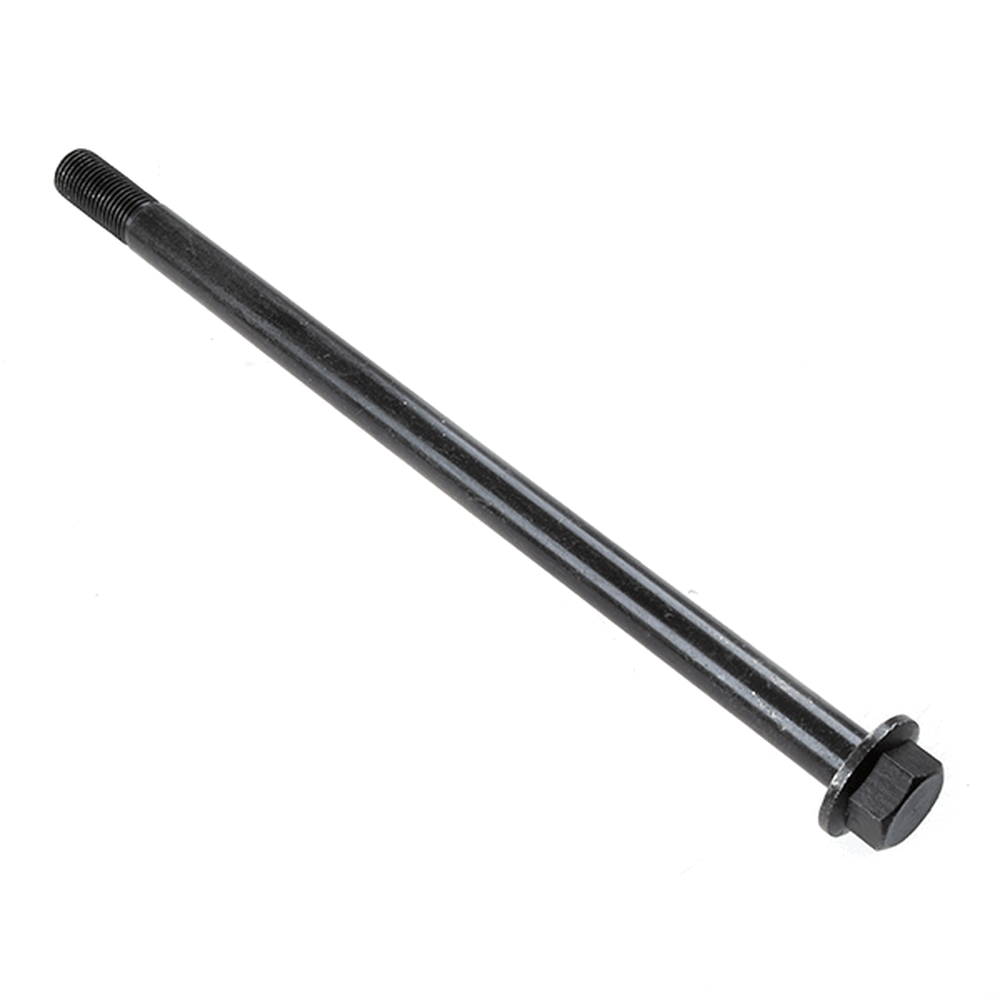

The swingarm spindle, also known as the swingarm axle, is a crucial component of a motorcycle's rear suspension system. It is a large, hardened steel rod that passes through the swingarm and connects it to the motorcycle's frame. The spindle allows the swingarm to pivot, which is essential for absorbing bumps and maintaining rear wheel stability during riding. Proper installation and maintenance of the swingarm spindle are vital for ensuring smooth and controlled rear suspension movement, contributing to overall handling and safety.
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | ![]() |
Swinging Arm Spindle Nut M14 x 1.5mm NUT109 x 1
|
||
| 3 | ![]() |
Swing Arm Dust Seals DSEAL052 x 1
|
||
| 4 | ![]() |
Swinging Arm Spacer SPCR047 x 1
|
||
| 5 | ![]() |
Rubber Chain Guide CHNGR037 x 1
|
||
| 6 | ![]() |
Swinging Arm Spindle SWNGS039 x 1
|
||
| 8 | ![]() |
Swingarm for LJ125-9A, LJ125-9A-E5 SWNG082 x 1
|
||
| 11, 13, 14 | ![]() |
Chain Adjuster CHNA007 x 1
|
||
| 12 | ![]() |
Spindle Rear SPND188 x 1
|
Soon | |
| 13 | ![]() |
Chain Adjuster Nut M8 CHNA058 x 1
|
||
| 14 | ![]() |
Chain Adjuster Bolt M8 x 50mm CHNA059 x 1
|
||
| 15 | ![]() |
Chain Guard CHNG009 x 1
|
||
| 16 | ![]() |
Fairing Bolts (each) M6 x 12mm BLT187 x 1
|
||
| 17 | ![]() |
Rear Wheel Hugger for LJ125-9A, LJ125-9A-GT, LJ125-9A-GT-E5, LJ125-9A-E5 HGR043 x 1
|
||
| 25 | ![]() |
Hex Socket Button Bolt M6 x 16mm BLTA107 x 1
|
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Tempest 125 Euro 5 [LJ125-9A-E5] | |
| Tempest 125 [LJ125-9A] | View parts diagram | |
| Tempest GT 125 Euro 5 [LJ125-9A-GT-E5] | View parts diagram | |
| Tempest GT 125 [LJ125-9A-GT] | View parts diagram | |
| Vendetta 250 [LJ250-3V] | View parts diagram | |
| Romet | SCMB 125 [SCMB125] | |
