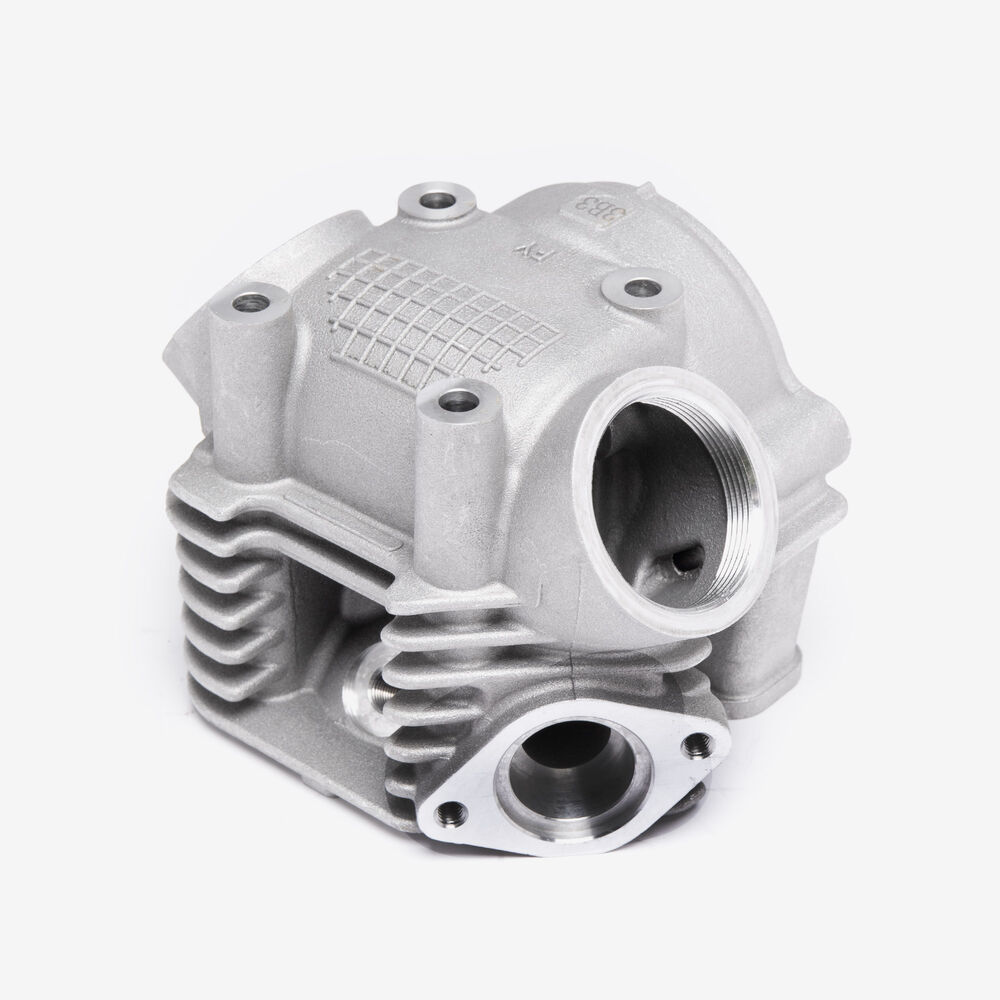

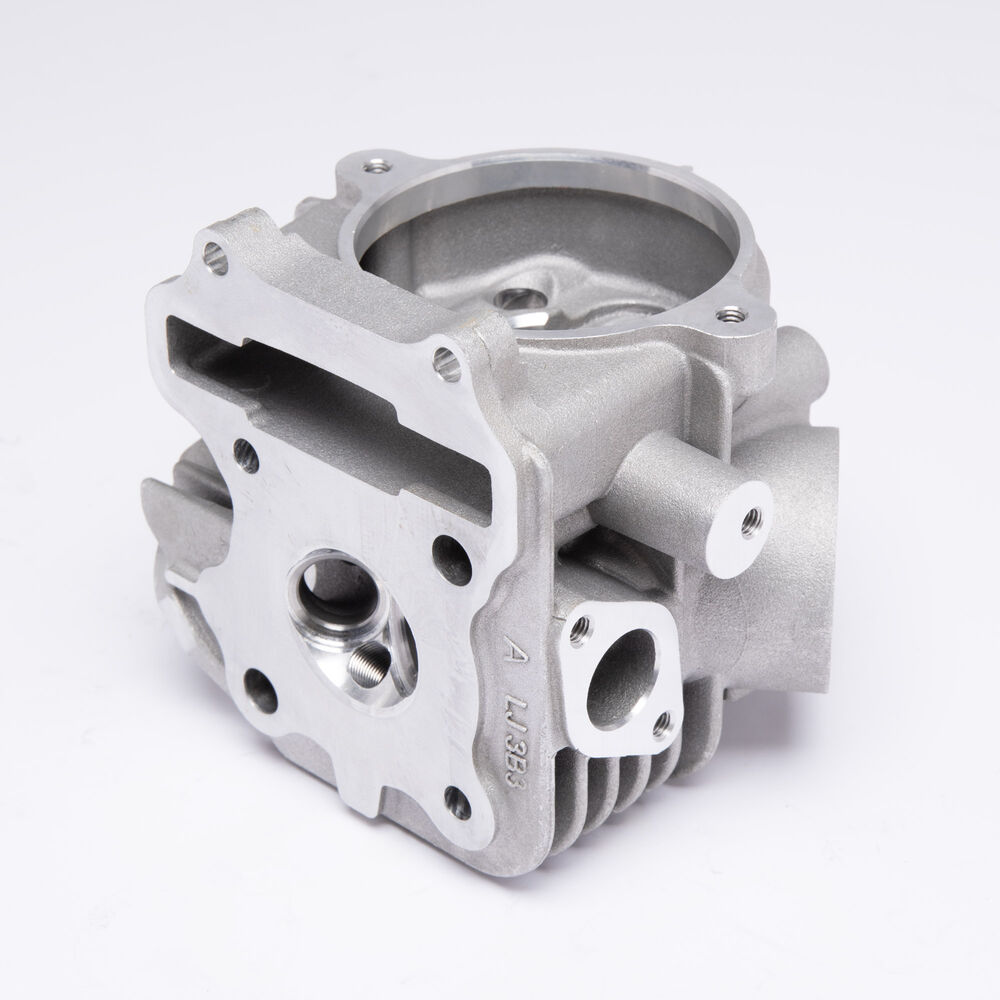

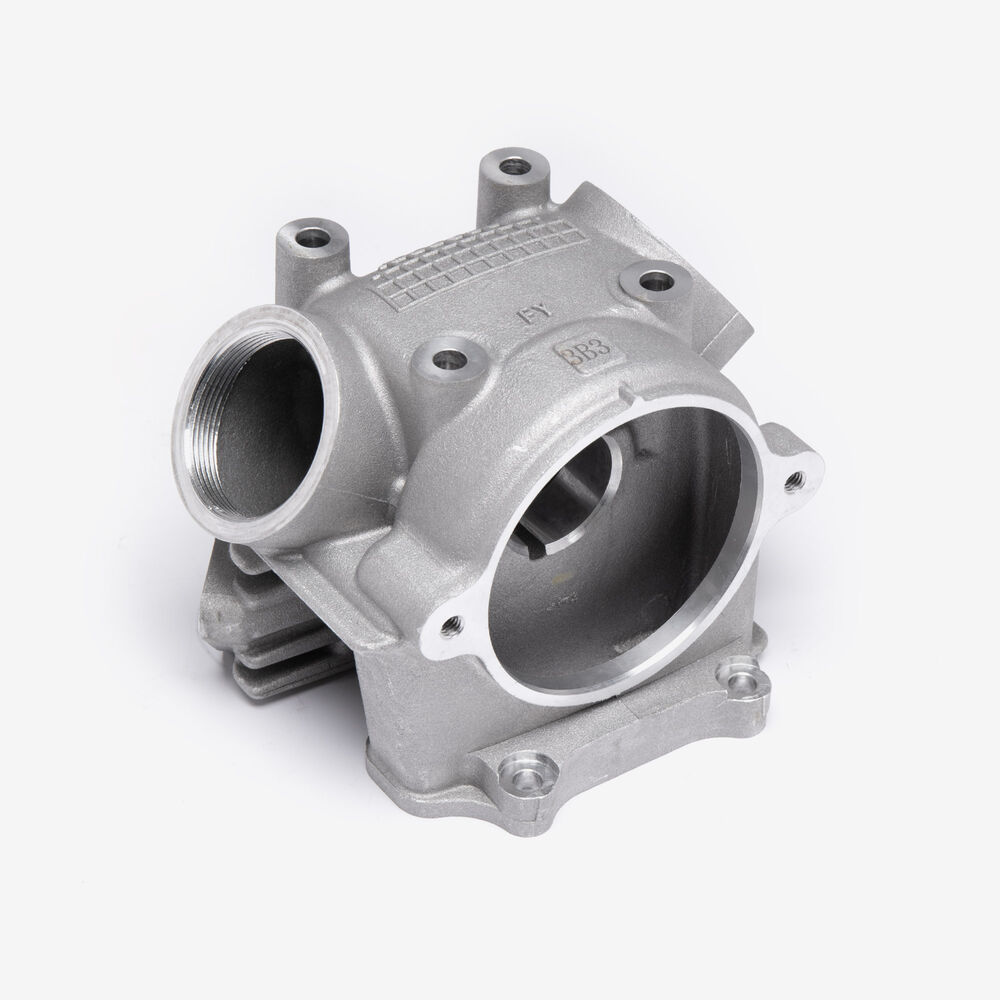

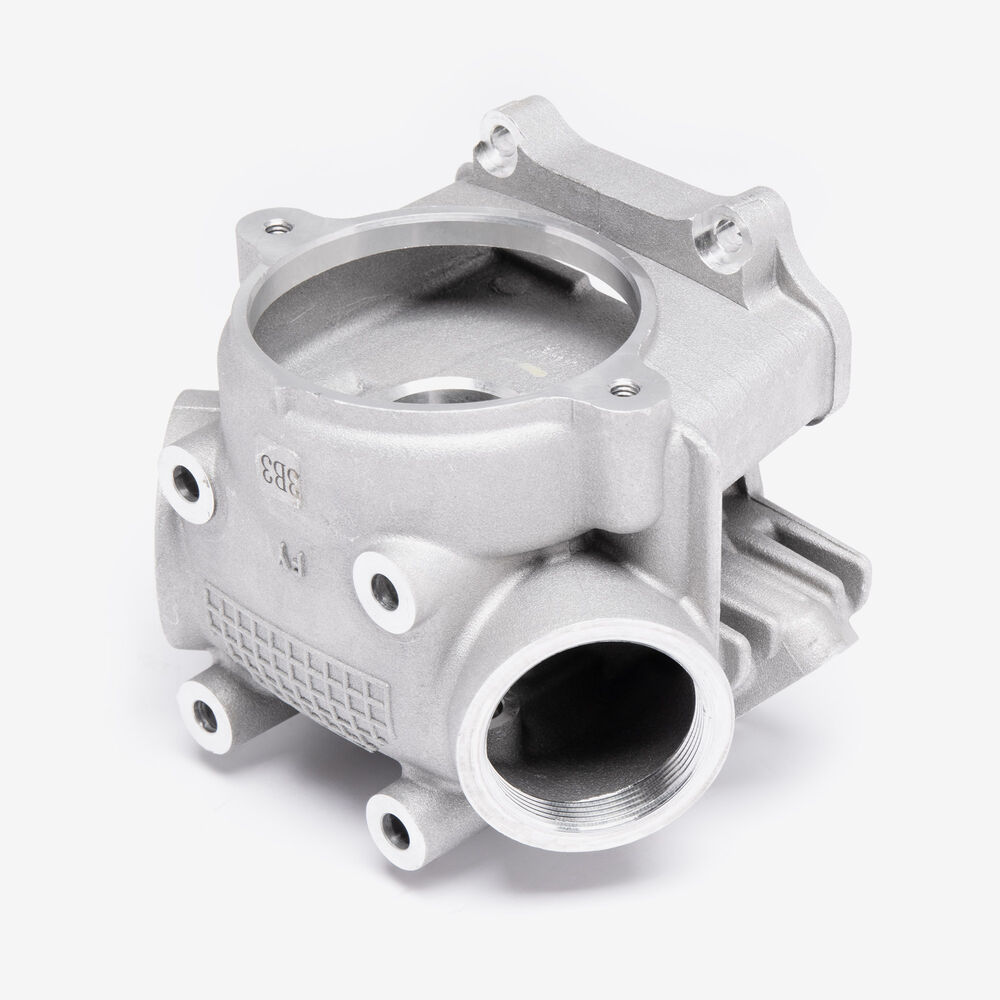

Cylinder Head
CYLH117
Description
"You should buy this Cylinder Head"
The cylinder head in a motorcycle is a critical engine component that sits atop the cylinder block, housing the intake and exhaust valves, camshaft, and other vital elements. It facilitates the intake of air-fuel mixture and the expulsion of exhaust gases, while also sealing the combustion chamber to ensure efficient engine performance and power generation.
Product Diagrams
| Ref | Item Name | Price | ||
|---|---|---|---|---|
| 1 | |
Cylinder Head CYLH117 x 1
|
||
| 2 |  |
Inlet Valve VLVIN047 x 1
|
||
| 3 |  |
Exhaust Valve VLVEX047 x 1
|
||
| 4 |  |
50/100/125cc Valve Stem Oil Seal VLVOS002 x 1
|
||
| 5 |  |
Valve Spring VLVS030 x 1
|
||
| 6 |  |
Spring VLVSR002 x 1
|
||
| 7 |  |
Inlet/Exhaust Valve Collets VLVC033 x 4
|
||
| 8 |  |
Rocker Arm RKA034 x 1
|
||
| 9 |  |
Rocker Arm Shaft RKAS011 x 1
|
||
| 11 |  |
NGK CR6HSA Spark Plug SPRK031 x 1
|
||
| 12, 14 |  |
Cylinder Head Inspection Cap for LJ50QT-N, LJ50QT-9M, LJ50QT-6L CYHDI010 x 1
|
||
| 13 |  |
Head Gasket GSKH044 x 1
|
||
| 15 |  |
Engine Dowel 10 x 4mm DWL003 x 1
|
||
| 16 |  |
Cylinder Head Bolts M6 x 80mm BLTCH020 x 1
|
||
| 17 |  |
Cylinder Head Studs 6 X 32 STDCH041 x 1
|
||
| 18 |  |
Cylinder Head Washer 6x16x2.5mm WSH0093 x 1
|
||
| 19 |  |
M6 Chrome Chrome Exhaust Domed Nut M6 x 17mm EXNUT009 x 1
|
Compatibility
| Manufacturer | Model | Diagram |
|---|---|---|
| Lexmoto | Diablo 50 Euro 5 [LJ50QT-9M-E5] | View parts diagram |
| Diablo 50 [LJ50QT-9M] | View parts diagram | |
| Echo+ 50 Euro 5 [LJ50QT-6L-E5] | View parts diagram | |
| Echo+ 50 [LJ50QT-6L] | View parts diagram | |
| Nano 50 [LJ50QT-N] | View parts diagram | |
